Flachkopfschraube für Windschutzblech WSB 2200 AD 20.6 | 20.6
morepic-1 morepic-2

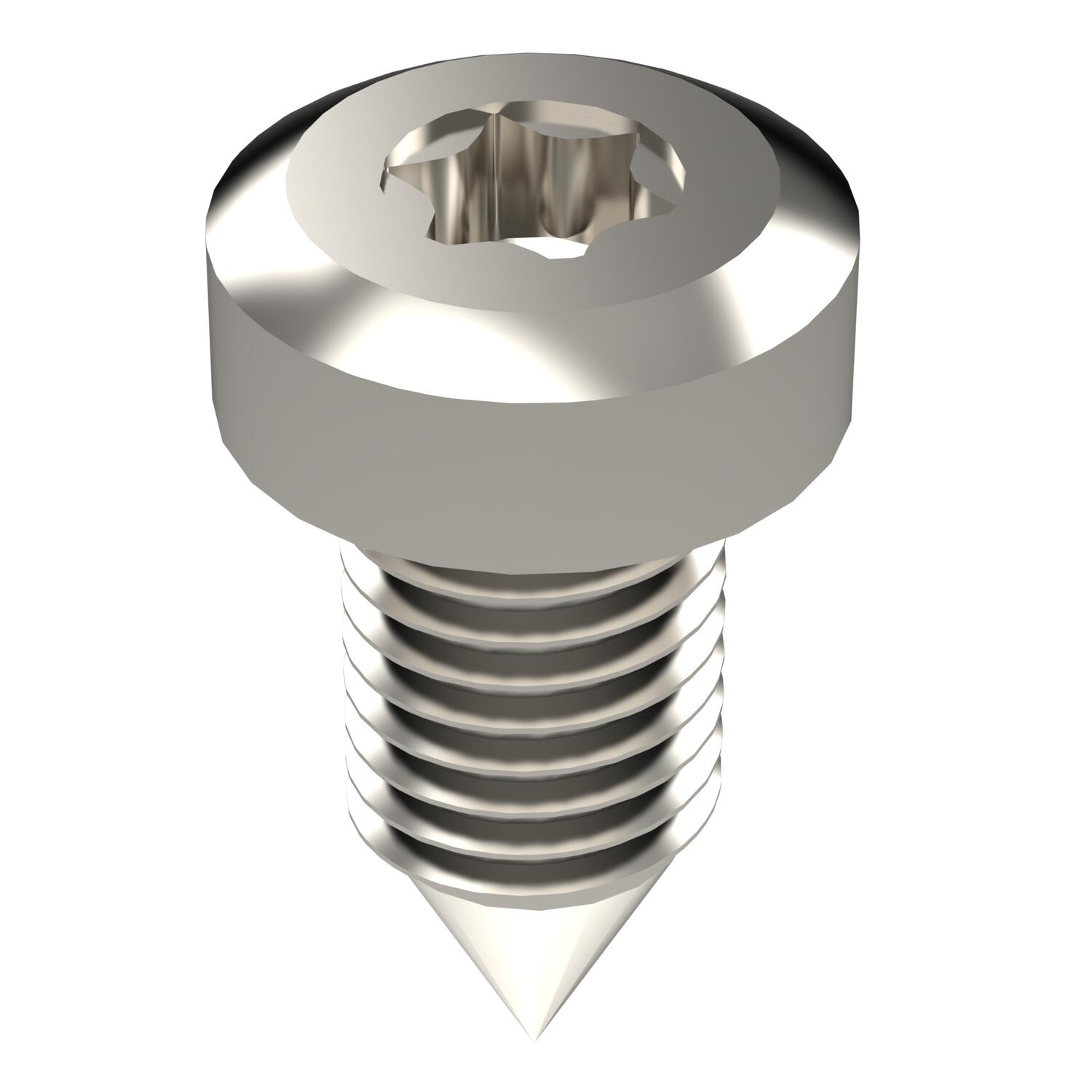

Flachkopfschraube für Windschutzblech WSB 2200 AD

Item no. 5901875 | EAN 4012197499792

5901875 / STS 6,3x16C A2
20.6 mm
20.6 mm
Product description
Product description
Selbstschneidende Flachkopfschraube mit Innensechsrund zum Befestigen von Windschutzblechen Typ WSB 2200 AD an den langen Stützen STLS AD DD der Photovoltaik-Montagesysteme für Flachdächer. Passender Schlüssel Torx 30.


  • Communautés Européennes, EC declaration of conformity according to EC directives

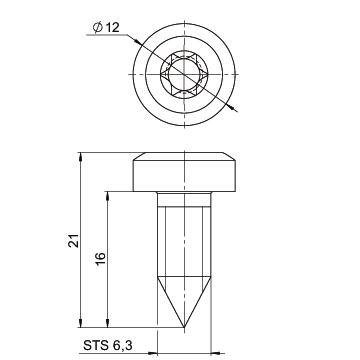

Technical data

Technical data

Bit size 30
Colour stainless steel
Dimension 12x20,6
Hardened no
Head diameter 12 mm
Head shape Flat head
Length 20,6 mm
Material Stainless steel
Screw system Torx
Self-drilling yes
Thread diameter ST 6,3
Thread length 20,6 mm
All types

All types

Types Length Thread length Item no. Quantity SSU
STS 6,3x16C A2 20.6 mm 20.6 mm 5901875
100 piece
