Note: This article is discontinued.
You can find the current article here: 6042121 / Add-on tee 60 FS
Add-on tee 60 FS
Item no. 7002416 | EAN 4012196212958
- Product description
-

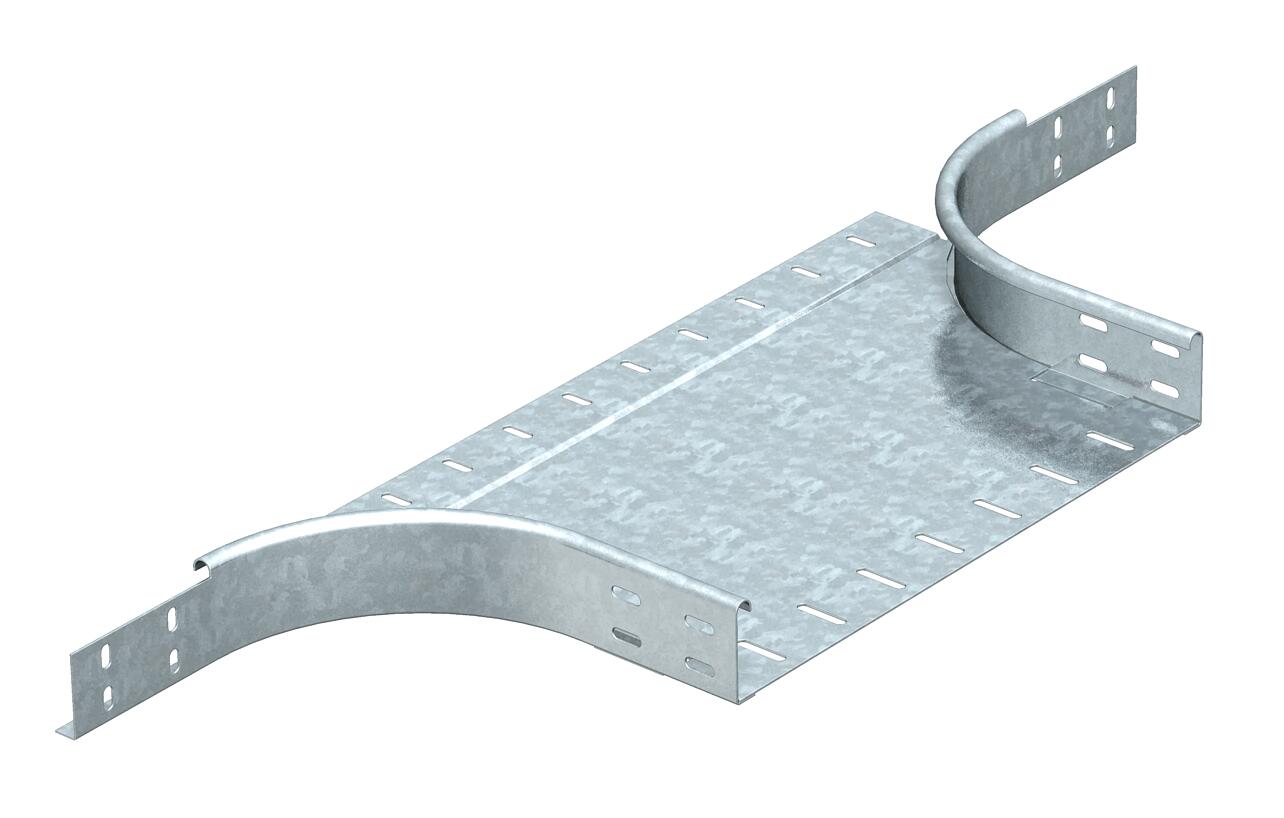

Product descriptionAdd-on tee for horizontal and vertical use. For all cable tray types of 60 mm side height.
Fastening materials should be ordered separately.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Colour zinc Connector version Without connectors Dimension 60x500 Maintain electrical functions no Material Steel Material thickness, floor plate 1,5 mm NATO hole pattern no Rail thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanised Type of connector, cable support system Screwed Wide-span version no Dimensions

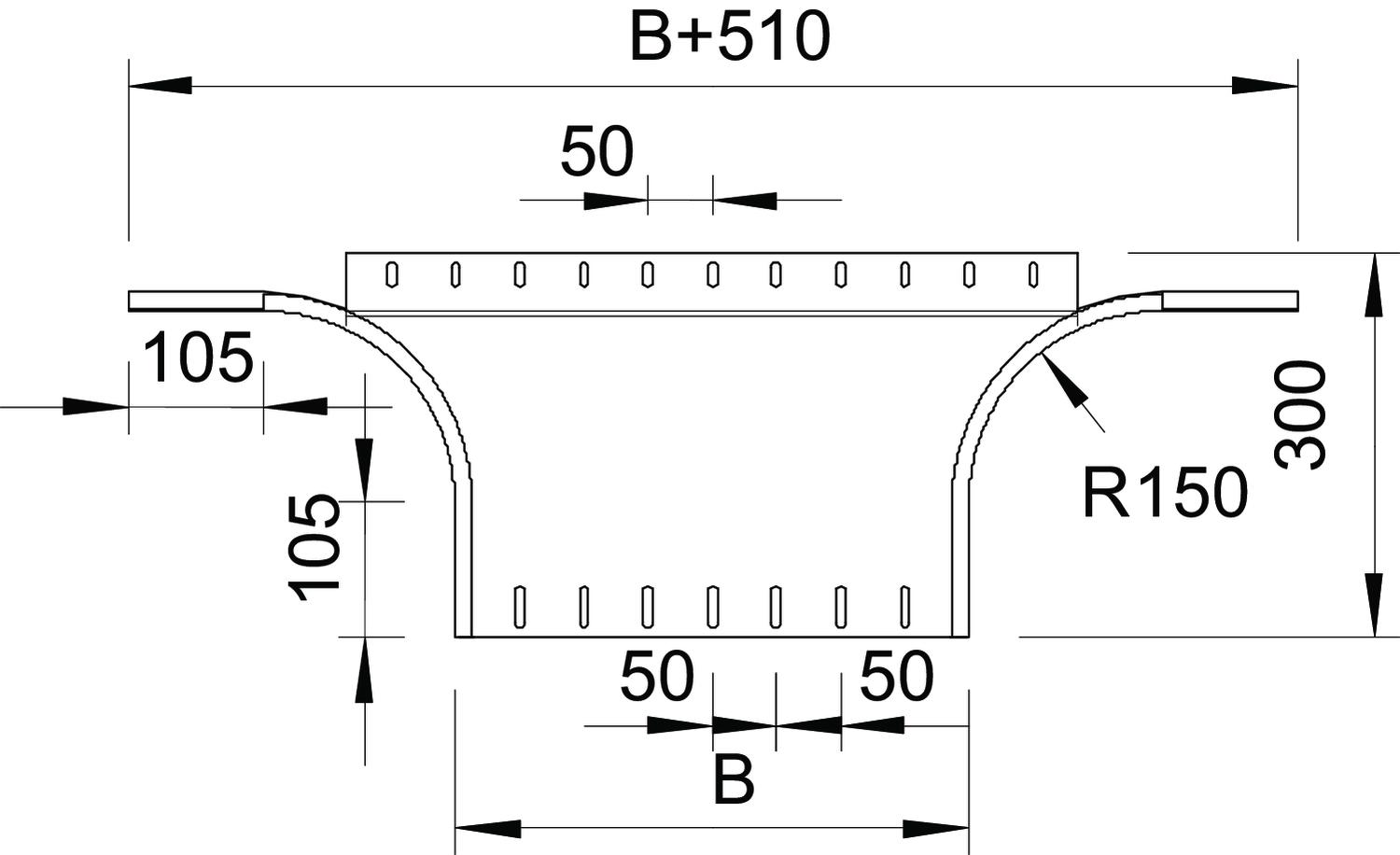

Dimension B 500 mm Dimension R 150 mm Height 2 in Height 60 mm Width 500 mm Width 20 in CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 7,982 kg CO2e / 1 Piece CO₂ Footprint (GWP) 7,982 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet RAA 650 FS / 7002416 , 0.17MB , pdfEU declaration of conformity RAA 650 FS / 7002416 , 0.10MB , pdfREACH Declaration of conformity RAA 650 FS / 7002416 , 0.12MB , pdfRoHS Declaration of conformity RAA 650 FS / 7002416 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdf
