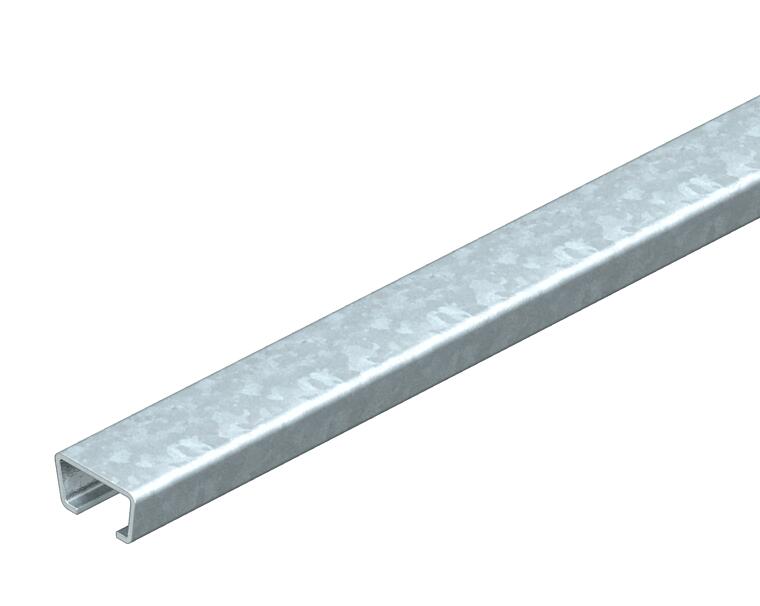

AMS3518 anchor rail, slot 16.5 mm, BK, unperforated
Item no. 1112023 | EAN 4012195043157
- Product description
-
Product descriptionCentral C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
-
- Technical data
-
Technical data

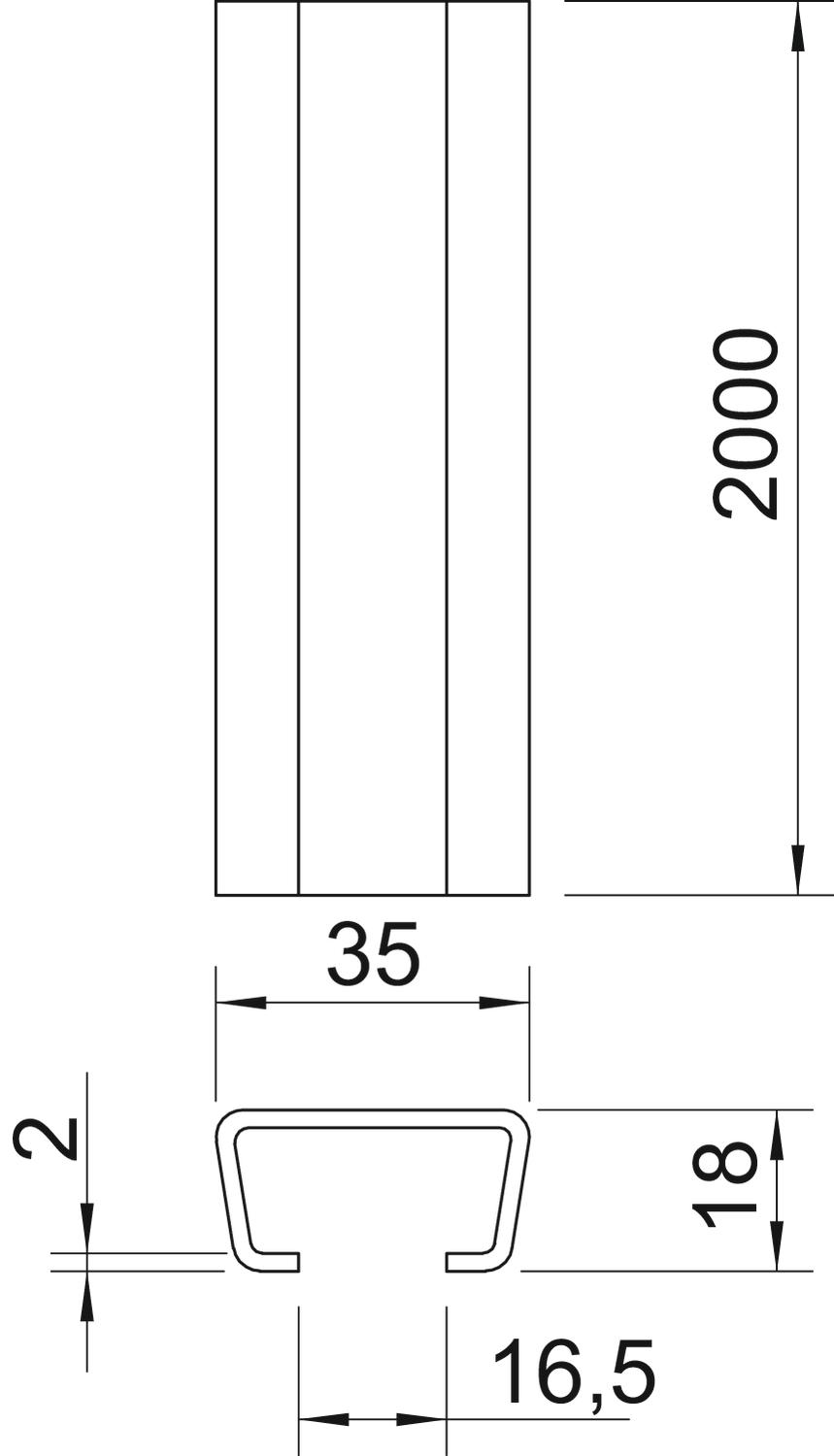

Breakable no Bundle 20 m Dimension 2000x35x18 Maintain electrical functions no Material Steel Material thickness 2 mm Profile shape C profile Slot width 16,5 mm Static value A 1,48 cm² Static value ly 0,6 cm⁴ Static value lz 2,33 cm⁴ Static value Wy 0,54 cm³ Static value Wz 1,33 cm³ Surface Bright Type of perforation Without Version for Single profile With perforation no With toothing no Dimensions
Dimension L 2000 mm Height 18 mm Length 2000 mm Width 35 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 2,0892 kg CO2e / 1 Meter CO₂ Footprint (GWP) 2,0892 kg CO₂e Declared Unit (LCA) Metres Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Slide nut ZL
ACMSN M8 ZL 1147060 100 piece

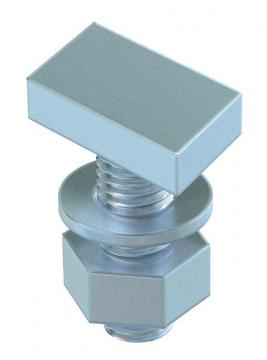

Hammer-head bolt ZL
ACMHB M8x30 ZL 1148060 50 piece - Downloads
-
