Angled air-termination rod for PV frames 2000 | 10/16
morepic-1 morepic-2

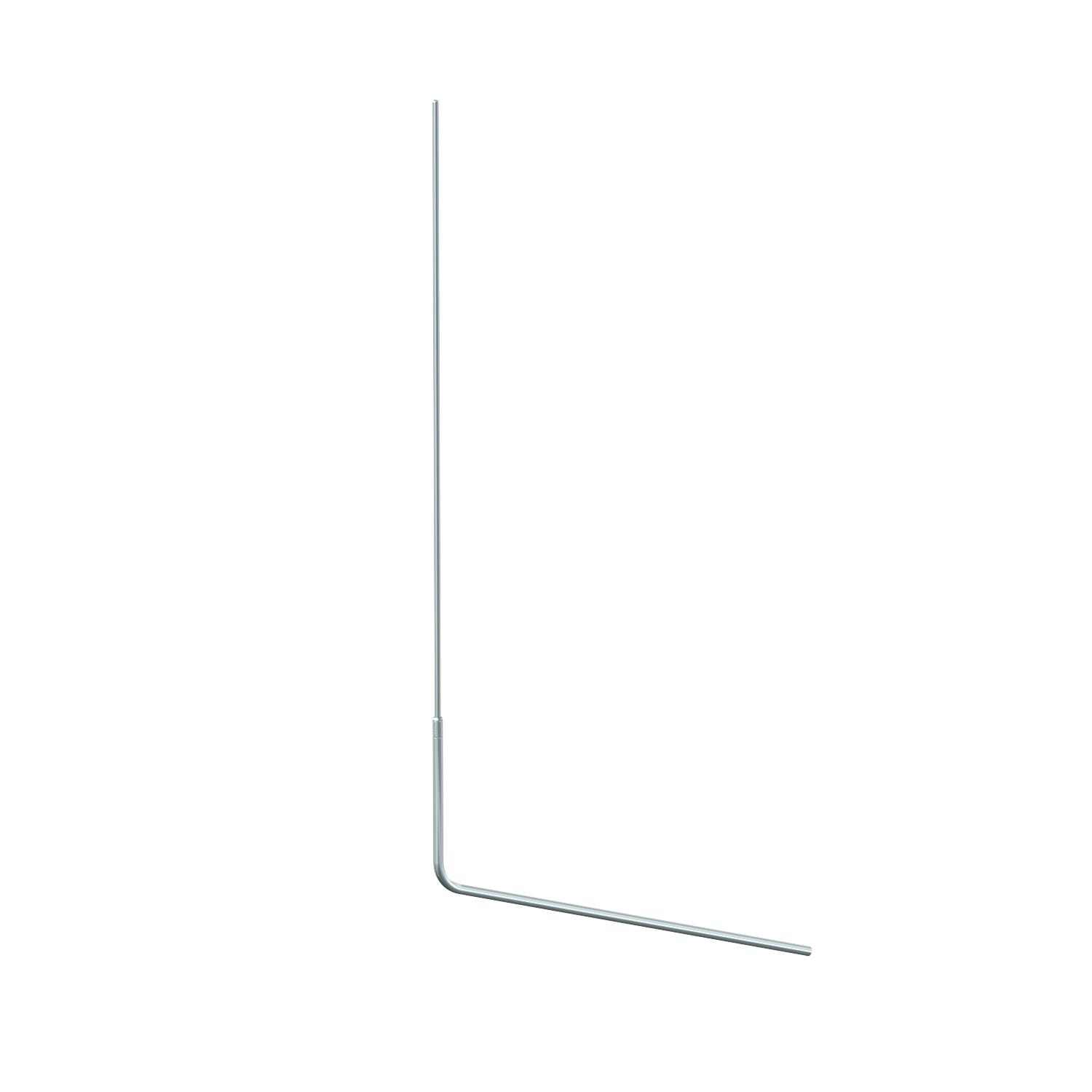

Angled air-termination rod for PV frames

Item no. 5401950 | EAN 4012196691593

5401950 / 101 VL2000 112
2000 mm
10/16 mm
Product description
Product description
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Last metre is tapered from Ø 16 mm to Ø 10 mm, material: AlMgSi
• Angled to 112°
  • CO₂ footprint (PCF)
Technical data

Technical data

Connection Round conductor
Dimension 2000
High voltage-resistant, insulated version no
Material Aluminium
Nominal size Ø 10/16 mm
Version for Tapered air-termination rod

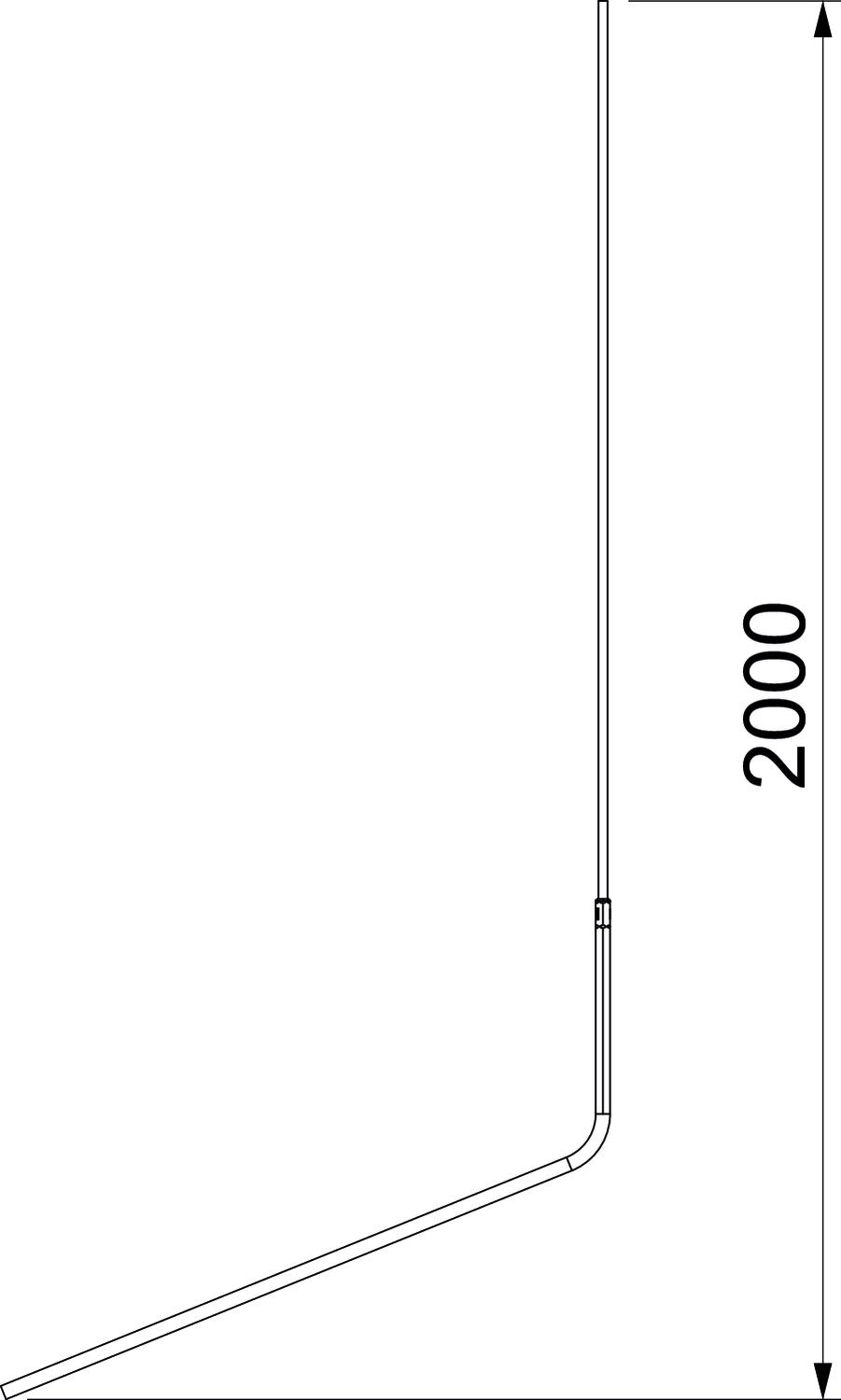

Dimensions

Length 2000 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 6,4682 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 6,4682 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-27T00:00:00.000+0200
All types

All types

Types Length Nominal size Ø Item no. Quantity SSU
101 VL2000 112 2000 mm 10/16 mm 5401950
10 piece
