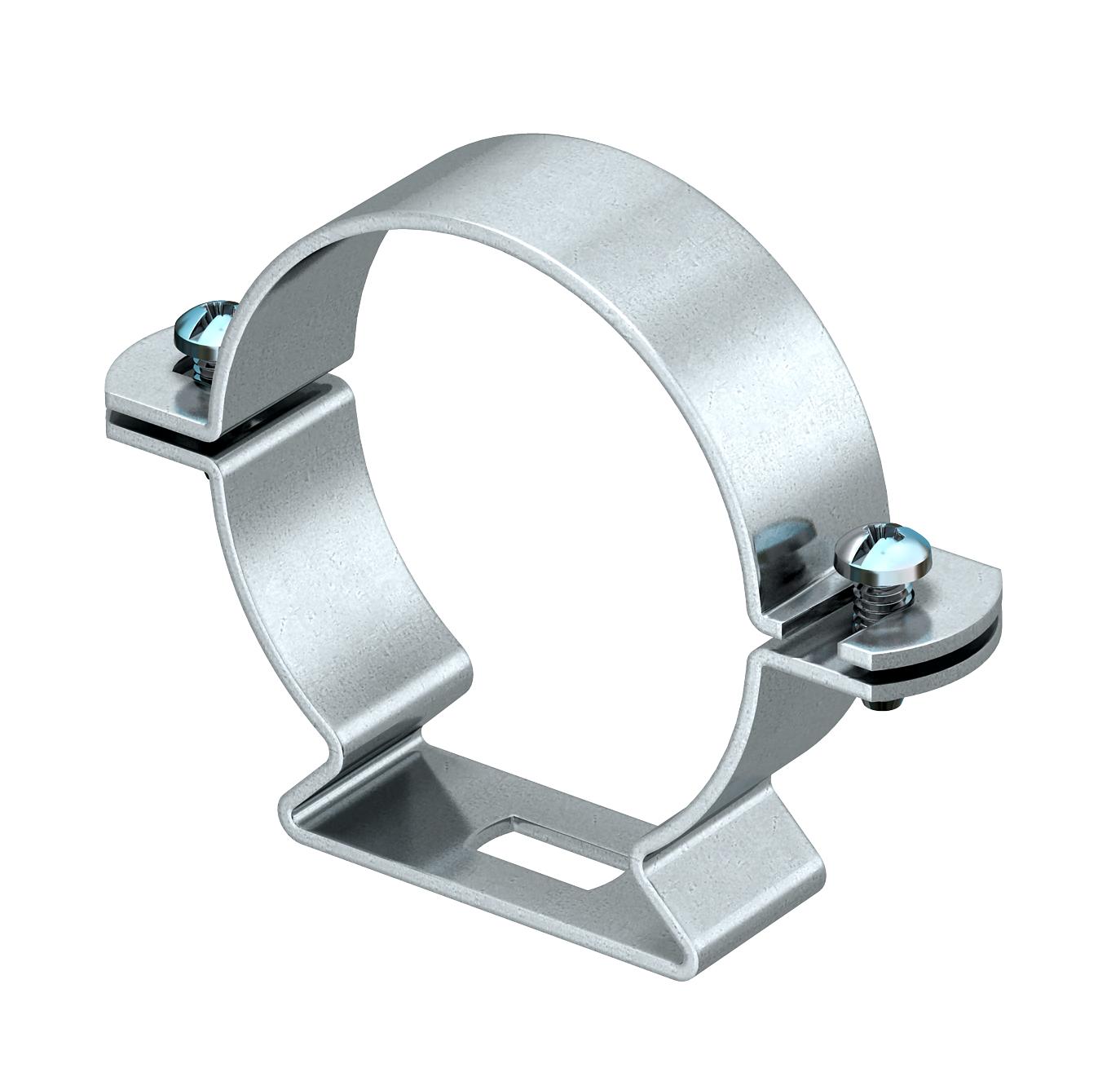

Cable and pipe spacer clip 733 aluminium
Item no. 1362534 | EAN 4012195450313
- Product description
-
Product description* Size M16 is not suitable for nail device.
* Sizes M16 to PG16 not suitable for bolt-firing tool.
-
- Technical data
-
Technical data
Bolt M5 x 16 Clamping range D, max. 19 mm Clamping range D, min. 17 mm Dimension 17-19mm Distance to the wall yes Fastening type Screw hole Halogen-free yes Hole size 6,5 x 10 Material Aluminium Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no Size Pg11 Suitable in fire protection area no UV-resistant yes Version for Closed Dimensions
Dimension A 45 mm Dimension b 14 mm Dimension B 32 mm Dimension D 19 mm Dimension d min. 19 mm Dimension L 10 mm Dimension x 10,25 mm Length 45 mm Width 14 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1469 kg CO₂e / 1 Piece CO₂ Footprint (GWP) 0,1469 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-04-02T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 733 19 ALU / 1362534 , 0.21MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 733 19 ALU / 1362534 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 733 19 ALU / 1362534 , 0.09MB , pdfREACH Declaration of conformity 733 19 ALU / 1362534 , 0.12MB , pdfRoHS Declaration of conformity 733 19 ALU / 1362534 , 0.13MB , pdf
