Cable ladder LG 110, 6 m VS FT 6000 | 600 | 1.5 | no | Steel | Hot-dip galvanised

Cable ladder LG 110, 6 m VS FT

Item no. 6216477 | EAN 4012195065432

Item no. / Types

Length	6000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

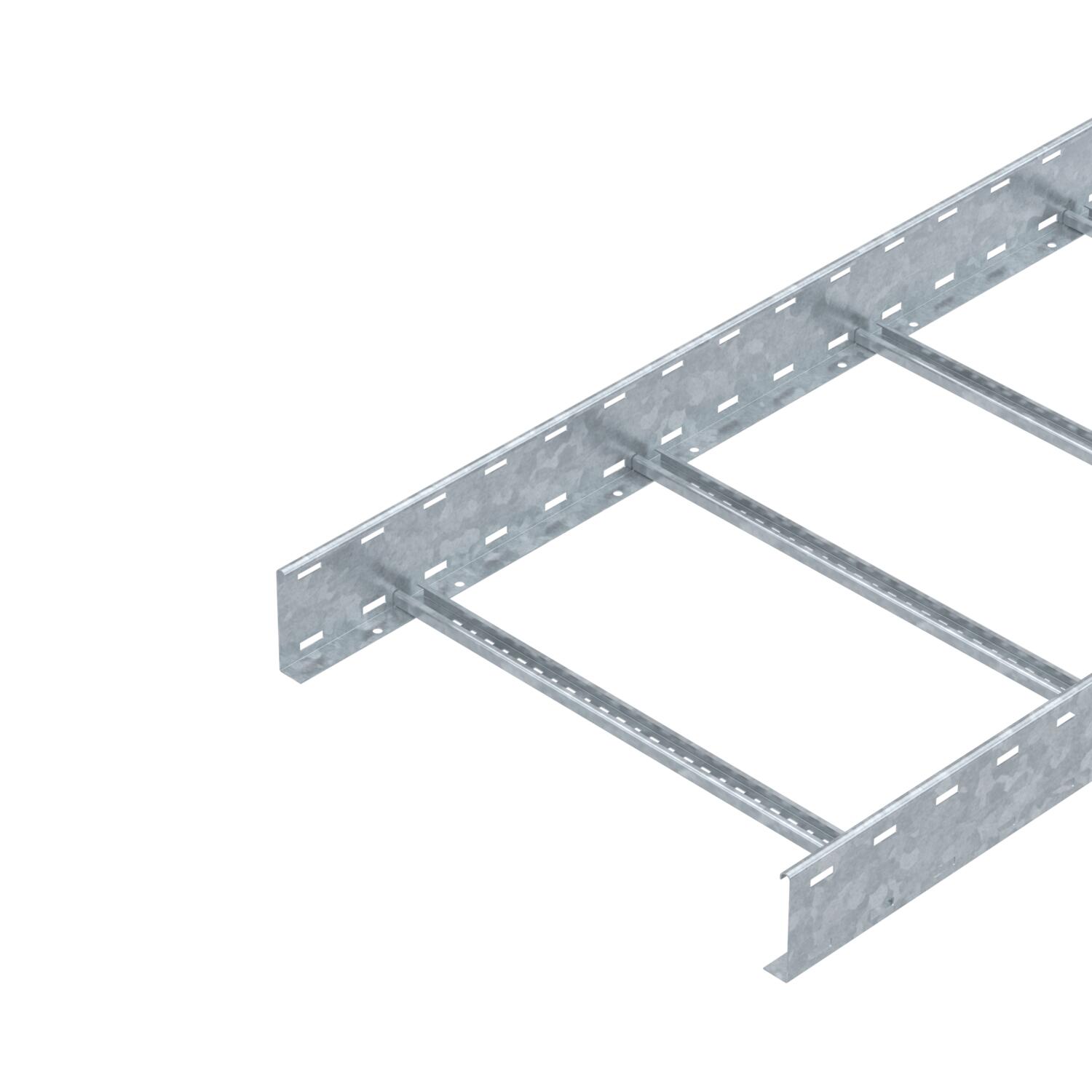

Cable ladder with perforated side rail of side height 110 mm with riveted C profile rungs, open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

The cable ladder is shipped folded up.

Matching clamp clip, type 2056 H foot, type BS-H...

Technical data

Technical data

Colour	zinc
Dimension	110x600x6000
Dimension	110x600x6000
Fastening of rung	Blind riveted
Maintain electrical functions	no
Material	Steel
Product series	LG Series
Rail thickness	1,5 mm
ROHS-conformant	yes

Rung distance	300 mm
Rustproof steel, pickled	no
Side perforation	yes
Side rail version	Flat profile
Surface	Hot-dip galvanised
Usable cross-section	56800 mm²
Usable cross-section	568 cm²
Version of the rungs	Profile perforated
Wide-span version	no

Dimensions

Dimension B	600 mm
Height	110 mm
Length	6000 mm

Rung slot dimension	16,50
Width	600 mm

Loads

Support spacing 2.0 m	3,1 kN/m
Support spacing 2.5 m	2 kN/m
Support spacing 3.0 m	1,4 kN/m
Support spacing 3.5 m	0,9 kN/m

Support spacing 4.0 m	0,65 kN/m
Support spacing 4.5 m	0,55 kN/m
Support spacing 5.0 m	0,5 kN/m
Support spacing 6.0 m	0,15 kN/m

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	10,9889 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	10,9889 kg CO₂e
Declared Unit	Metres

Declared Unit Quantity	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

Technical data

Load diagram, cable ladder, type LG 110 VS

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
LG 112 VS 6 FT	6000 mm	200 mm	1.5 mm	no	Steel	Hot-dip galvanised	6216465	m	6 m
LG 113 VS 6 FT	6000 mm	300 mm	1.5 mm	no	Steel	Hot-dip galvanised	6216468	m	6 m
LG 114 VS 6 FT	6000 mm	400 mm	1.5 mm	no	Steel	Hot-dip galvanised	6216471	m	6 m
LG 115 VS 6 FT	6000 mm	500 mm	1.5 mm	no	Steel	Hot-dip galvanised	6216474	m	6 m
LG 116 VS 6 FT	6000 mm	600 mm	1.5 mm	no	Steel	Hot-dip galvanised	6216477	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover with turn buckle FT	DRL 600 FT	6051472	m	3 m
Straight connector FT	LVG 110 FT	6216548	piece	10 piece
Adjustable connector FT	LGVG 110 FT	6216653	piece	10 piece
Expansion connector 110 FT	LDVG 110 FT	6216670	piece	2 piece
Multifunctional connector FT	LMFV 1160 FT	6225780	piece	1 piece
90° bend 110 FT	LB 90 1160 R3 FT	6225152	piece	1 piece
End cap	SKH 110 OR	6222553	Pair	20 Pair
Barrier strip 85 DD	TSG 85 DD	6062331	m	3 m
Support plate	LALB 60 FT	6221890	piece	1 piece
Drop-out plate FT	LAB 60 FT	6220479	piece	1 piece
