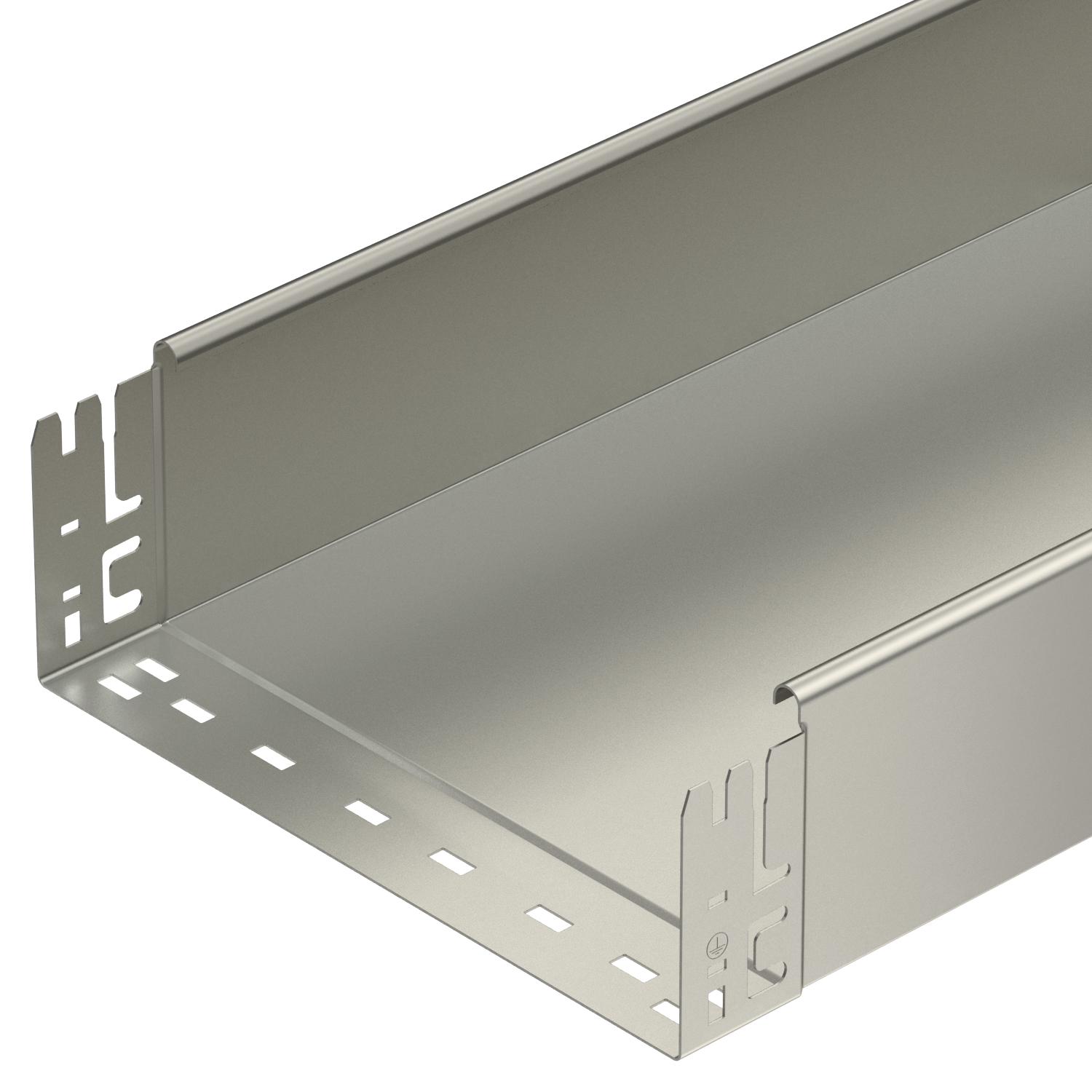

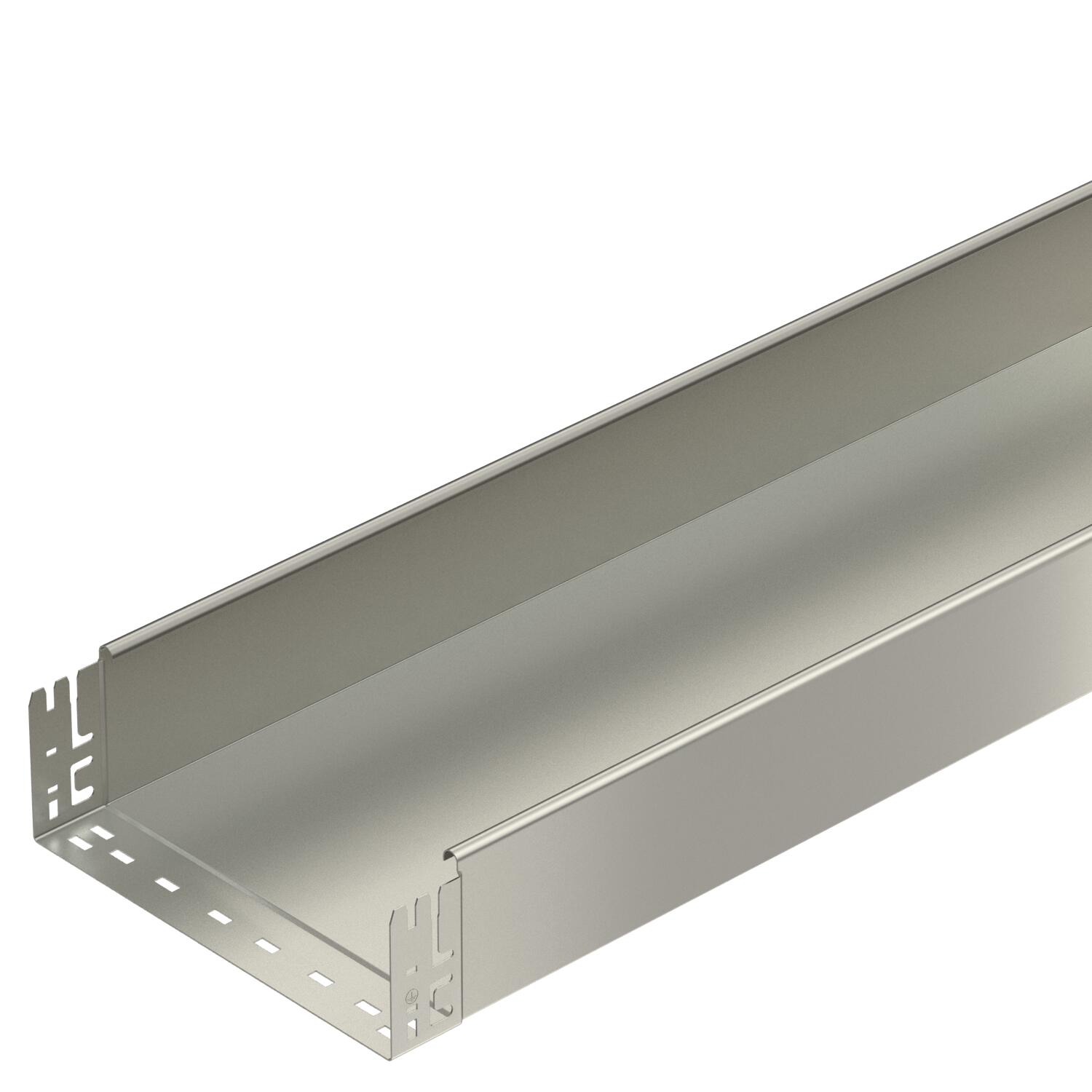

Cable tray MKS-Magic® 110, unperforated A2
Item no. 6059422 | EAN 4012195832300
- Product description
-
Product descriptionUnperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.
The continuous equipotential bonding is guaranteed without additional components.
-
- Technical data
-
Technical data
Colour stainless steel Connector version Integrated connector Dimension 110x300x3050 Load test type according to IEC 61537 Type II Maintain electrical functions no Material Stainless steel 1.4301 Mounting perforation in base no NATO hole pattern no Plate thickness 1 mm Rustproof steel, pickled no Side perforation no Surface Bright, treated Type of connector, cable support system Click fastening Usable cross-section 32800 mm² Usable cross-section 328 cm² Usable length 3000 mm Wide-span version no With cover no Dimensions
Dimension B 300 mm Height 110 mm Length 3050 mm Width 300 mm Loads
Support spacing 1.5 m 1,85 kN/m Support spacing 2.0 m 1,3 kN/m Support spacing 2.5 m 0,75 kN/m Support spacing 3.0 m 0,6 kN/m CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 20,8606 kg CO2e / 1 Meter CO₂ Footprint (GWP) 20,8606 kg CO₂e Declared Unit (LCA) Metres Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 Technical data
Load diagram, cable tray, type MKSMU 110
- All types
-
System accessories
Products Types Item no. Quantity SSU
Cover with turn buckle A2
DRL 300 A2 6052908 3 m
Barrier strip 110 A2
TSG 110 A2 6062255 3 m - Downloads
-
