Clamp clip 2056 H-foot, 1-fold, plastic pressure sleeve, FT 76 | 82 | 5

Clamp clip 2056 H-foot, 1-fold, plastic pressure sleeve, FT

Item no. 1186282 | EAN 4012196847358

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

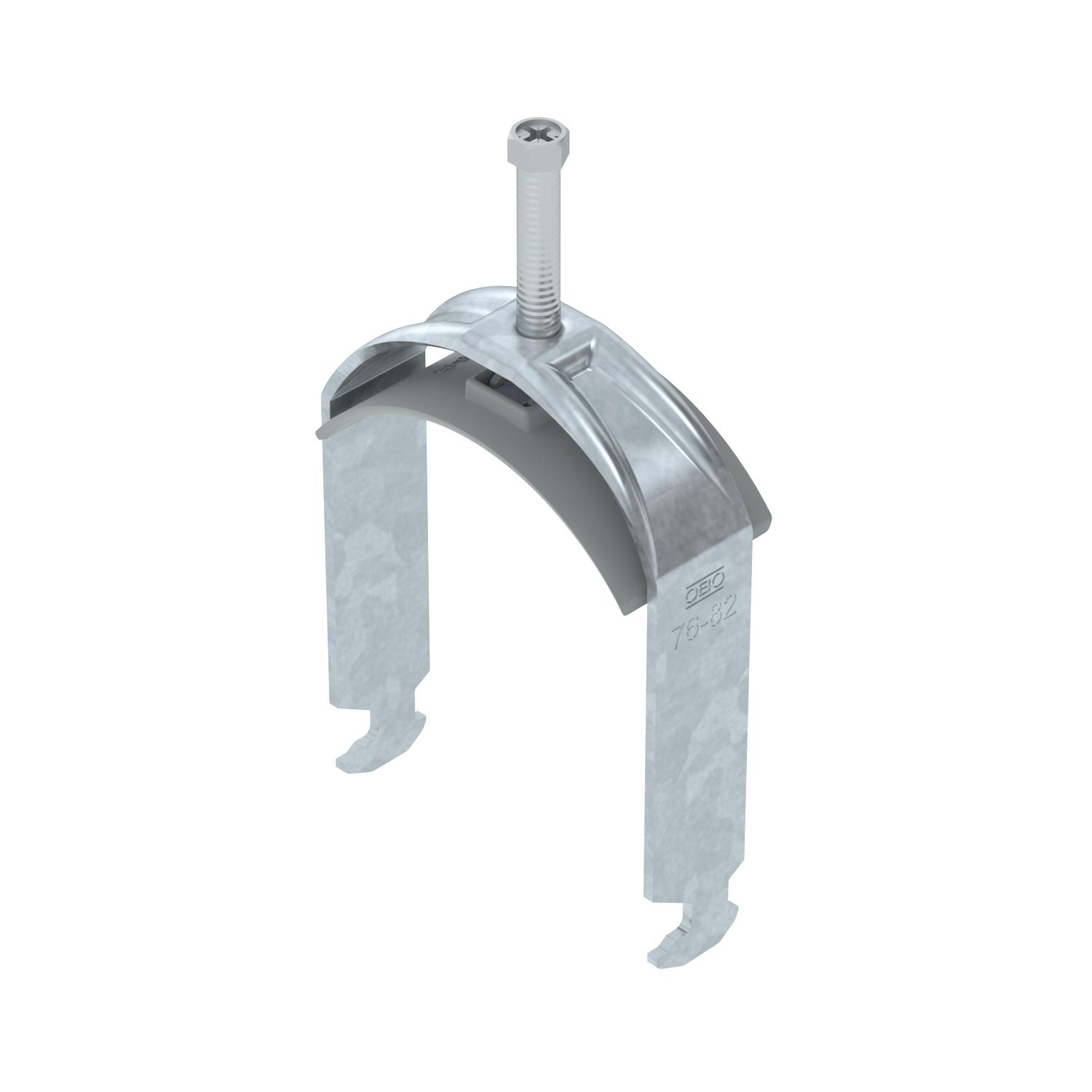

Clamp clip with hammerhead foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	82 mm
Clamping range D, min.	76 mm
Dimension	76-82mm
For pipe diameter, max.	82 mm
For pipe diameter, min.	76 mm
for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm
Halogen-free	yes
Length of external dimensions	40 mm
Material	Steel
Material addition	Steel
Material of trough	Plastic

Material quality of trough	Polypropylene
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	2,5 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M8
With counter-trough	no
With plastic trough	yes

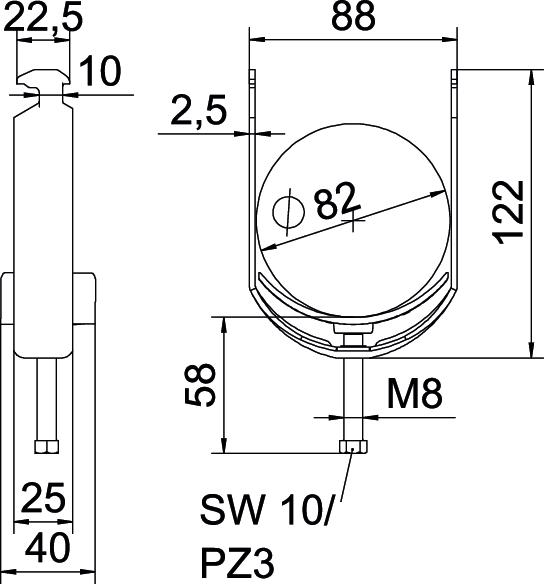

Dimensions

Dimension A	25 mm
Dimension B	88 mm
Dimension C	40 mm
Dimension G (mm)	M8
Dimension H	122 mm

Dimension L	58 mm
Dimension t	2,5 mm
Height	122 mm
Length	25 mm
Width	88 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	0,4838 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	0,4838 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-H1-K-12 FT	8 mm	12 mm	3 Nm	1186202	piece	100 piece
BS-H1-K-16 FT	12 mm	16 mm	3 Nm	1186209	piece	100 piece
BS-H1-K-22 FT	16 mm	22 mm	3 Nm	1186216	piece	100 piece
BS-H1-K-28 FT	22 mm	28 mm	3 Nm	1186222	piece	100 piece
BS-H1-K-34 FT	28 mm	34 mm	3 Nm	1186229	piece	100 piece
BS-H1-K-40 FT	34 mm	40 mm	3 Nm	1186236	piece	100 piece
BS-H1-K-46 FT	40 mm	46 mm	5 Nm	1186242	piece	100 piece
BS-H1-K-52 FT	46 mm	52 mm	5 Nm	1186249	piece	100 piece
BS-H1-K-58 FT	52 mm	58 mm	5 Nm	1186256	piece	100 piece
BS-H1-K-64 FT	58 mm	64 mm	5 Nm	1186262	piece	100 piece
BS-H1-K-70 FT	64 mm	70 mm	5 Nm	1186269	piece	50 piece
BS-H1-K-76 FT	70 mm	76 mm	5 Nm	1186276	piece	25 piece
BS-H1-K-82 FT	76 mm	82 mm	5 Nm	1186282	piece	25 piece
BS-H1-K-90 FT	82 mm	90 mm	5 Nm	1186289	piece	25 piece
BS-H1-K-100 FT	90 mm	100 mm	5 Nm	1186297	piece	25 piece
