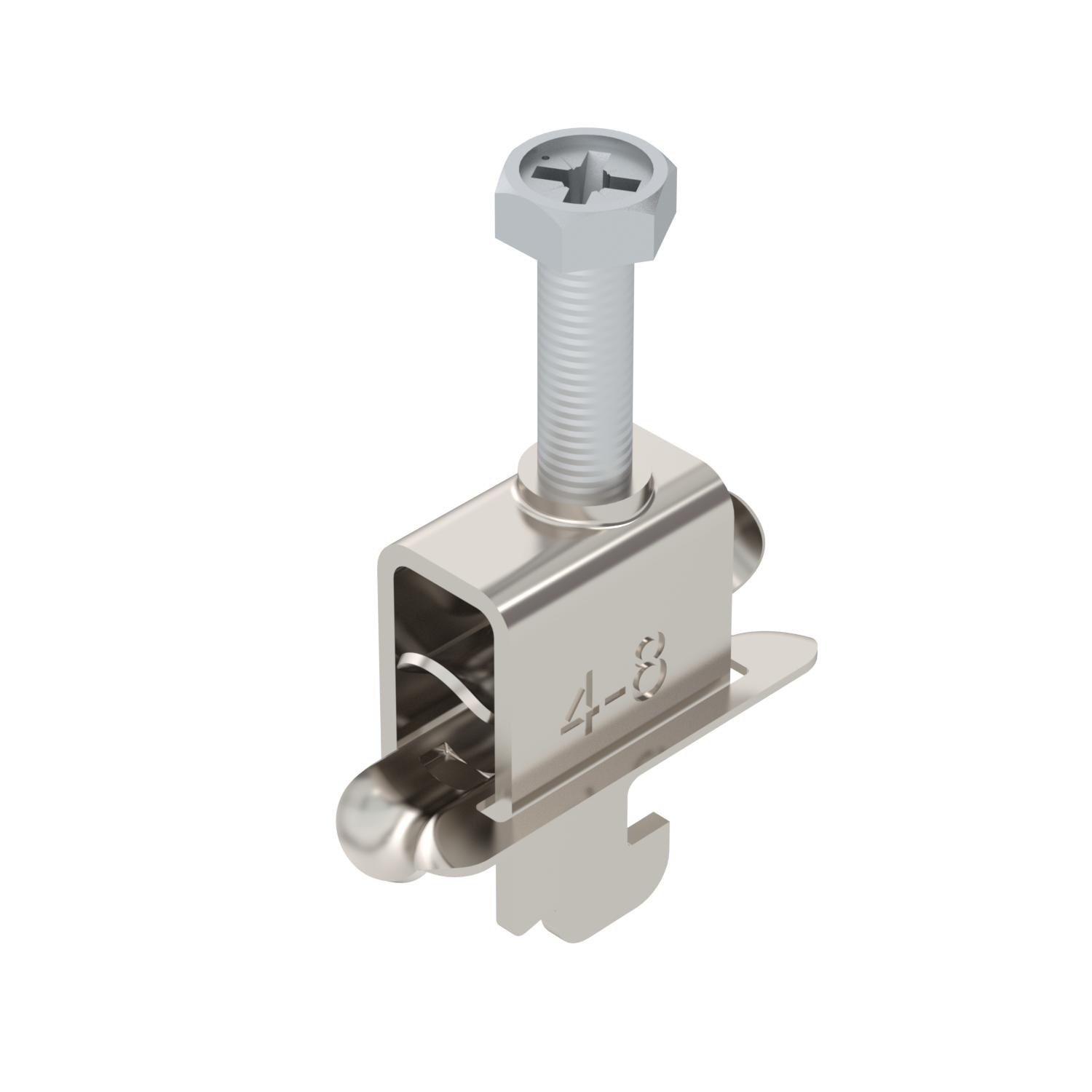

Clamp clip 2056 N foot, single, for screen connection, metal pressure sleeve, VA 4 | 8 | 3

Clamp clip 2056 N foot, single, for screen connection, metal pressure sleeve, VA

Item no. 1167054 | EAN 4012197374891

Item no. / Types	1167054 / BS-SAS-M-8 A2

Clamping range D, min.	4 mm

Clamping range D, max.	8 mm

Max. Tightening torque	3 Nm

Product description

Product description

Clamp clip with N foot, metal pressure sleeve with rounded edges to protect the cable. For electrical connection of braiding on screened cables. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 11‒12 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for mounting indoors and outdoors. The cable screen can also be used for equipotential bonding if both ends are connected to the reference potential. Counter-trough contained in scope of delivery.

Technical data

Technical data

Clamping range D, max.	8 mm
Clamping range D, min.	4 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,1551 kg CO2e / 1 Piece
Dimension	4-8
Dimension A	20 mm
Dimension B	12 mm
Dimension C	35 mm
Dimension G (mm)	M6
Dimension H	32 mm
Dimension L	33 mm
Dimension t	1,5 mm
For pipe diameter, max.	8 mm
For pipe diameter, min.	4 mm
for rail with slot width (with interval), max.	12 mm
for rail with slot width (with interval), min.	11 mm
Halogen-free	yes
Height	32 mm
Length	20 mm

Length of external dimensions	35 mm
Material	Stainless steel 1.4301
Material addition	Rustproof steel
Material of counter-trough	Rustproof steel
Material of trough	Rustproof steel
Material quality of trough	Stainless steel 304 (1.4301)
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	1,5 mm
Slot width	10 mm
Surface	Bright, treated
Surface addition	Untreated
Thread	M6
Width	12 mm
With counter-trough	yes
With metal trough	yes
