Note: This article is discontinued.
You can find the current article here: 1186502 / Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT
Clamp clip, single, FT metal pressure trough
Item no. 1158007 | EAN 4012195498254
- Product description
-
Product descriptionSuitable for all C profile rails with slot width 18 mm and 22 mm.
-
- Technical data
-
Technical data
Clamping range D, max. 12 mm Clamping range D, min. 8 mm Dimension 8-12mm for rail with slot width (with interval), max. 22 mm for rail with slot width (with interval), min. 18 mm Halogen-free no Impact-resistant no Material Steel Material addition Steel Material of trough Steel Max. Tightening torque 3 Nm Mounting type Profile rail Number of cables/pipes 1 Surface Hot-dip galvanised Surface addition hot galvanised With counter-trough no With metal trough yes With plastic trough no Dimensions

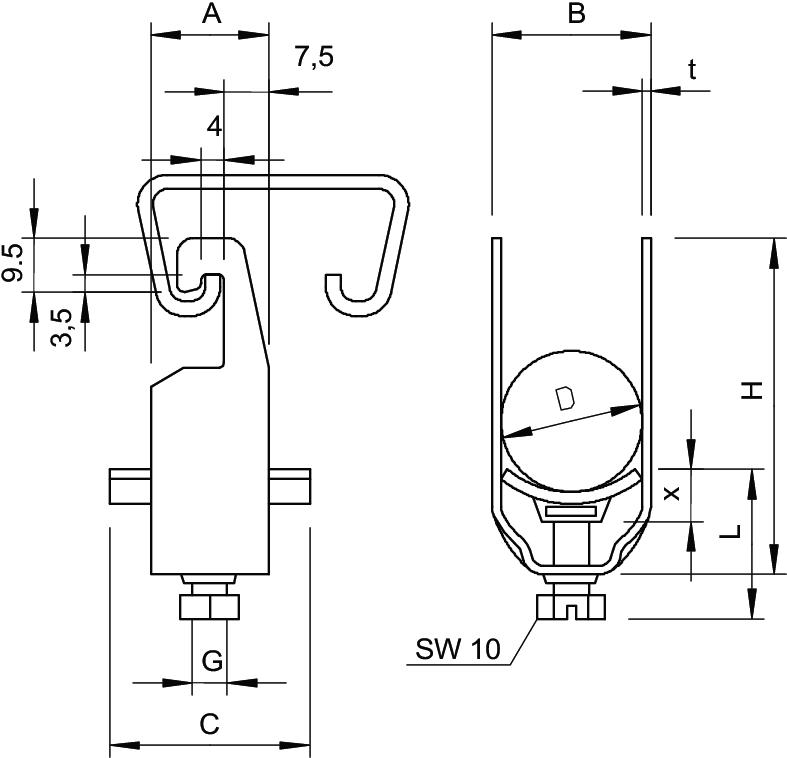

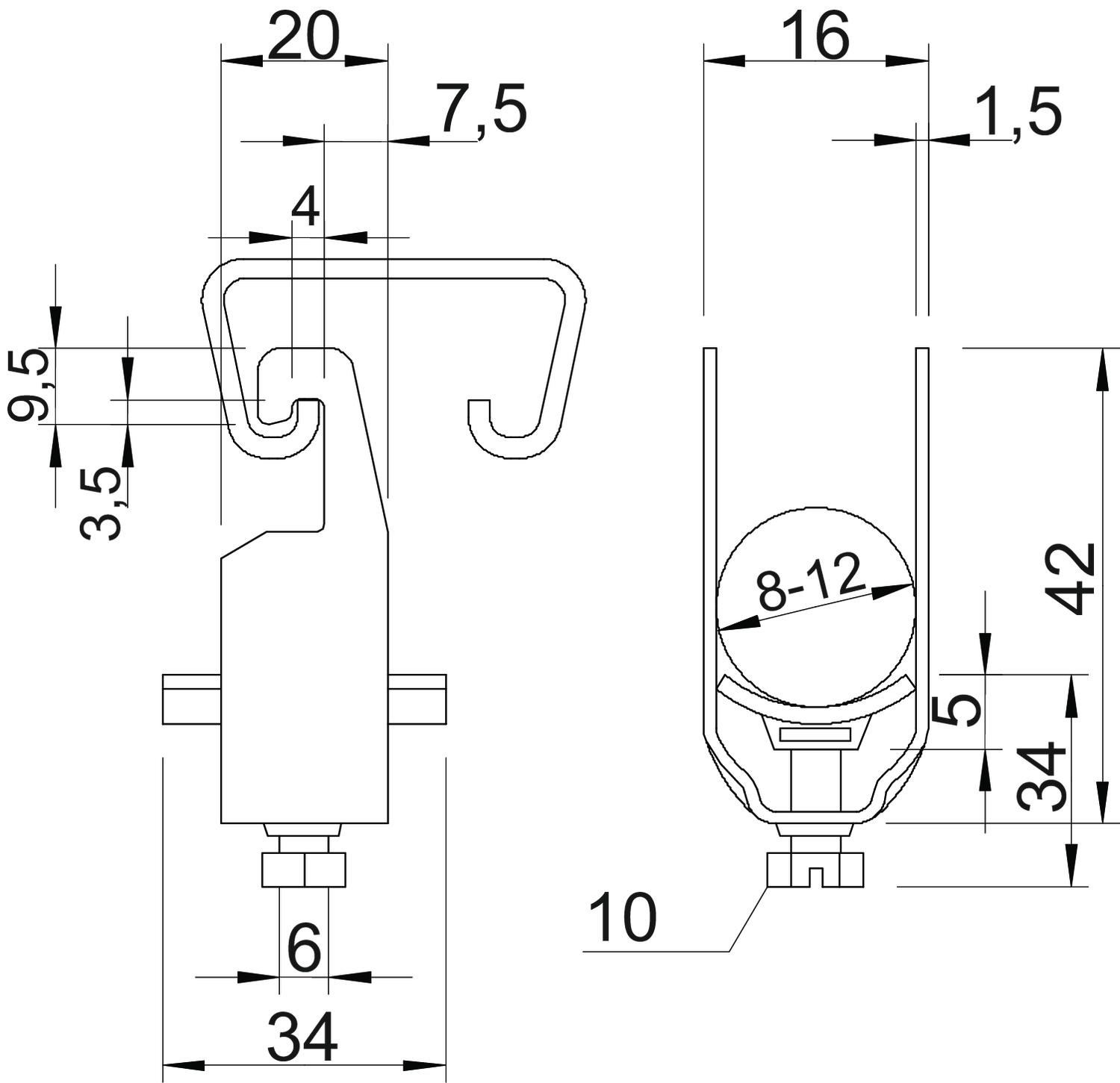

Dimension A 20 mm Dimension B 16 mm Dimension C 34 mm Dimension G (mm) M6 Dimension H 42 mm Dimension L 34 mm Dimension t 1,5 mm Dimension x 5 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0605 kg CO₂e / 1 Piece CO₂ Footprint (GWP) 0,0605 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-04-02T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 2056U M 12 FT / 1158007 , 0.18MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 2056U M 12 FT / 1158007 , 0.10MB , pdfREACH Declaration of conformity 2056U M 12 FT / 1158007 , 0.12MB , pdfRoHS Declaration of conformity 2056U M 12 FT / 1158007 , 0.12MB , pdf
