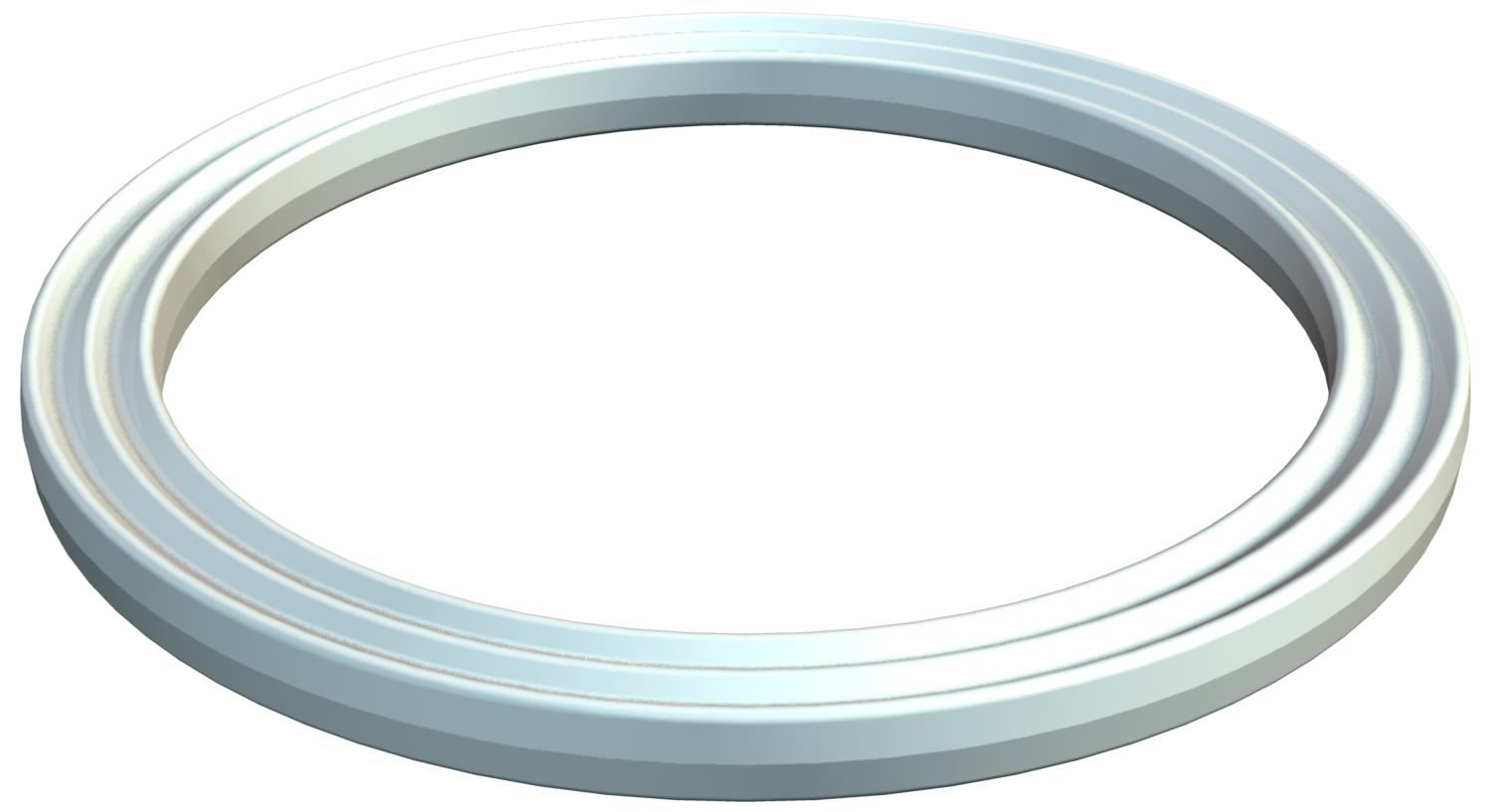

Connection thread sealing ring, PG 55.5 | 46.2 | 2.7

Connection thread sealing ring, PG

Item no. 2030365 | EAN 4012195168614

Item no. / Types

Dimension D1

Dimension D2

Dimension t

Product description

Product description

Connection thread sealing ring, in accordance with Part 9 to DIN 46320, however, dimensions may, according to material or function, deviate, suitable for all plastic cable glands with PG connection thread to DIN EN 40430, the internal diameter of the sealing rings are designed so that they can be captively pre-mounted.

Technical data

Technical data

Dimension	PG36
External diameter	55,5 mm
Halogen-free	yes
Inner diameter	46,2 mm

Material	Polyethylene
Screw for PG thread dimension	36
Thickness	2,7 mm
Version for	Flat sealing ring

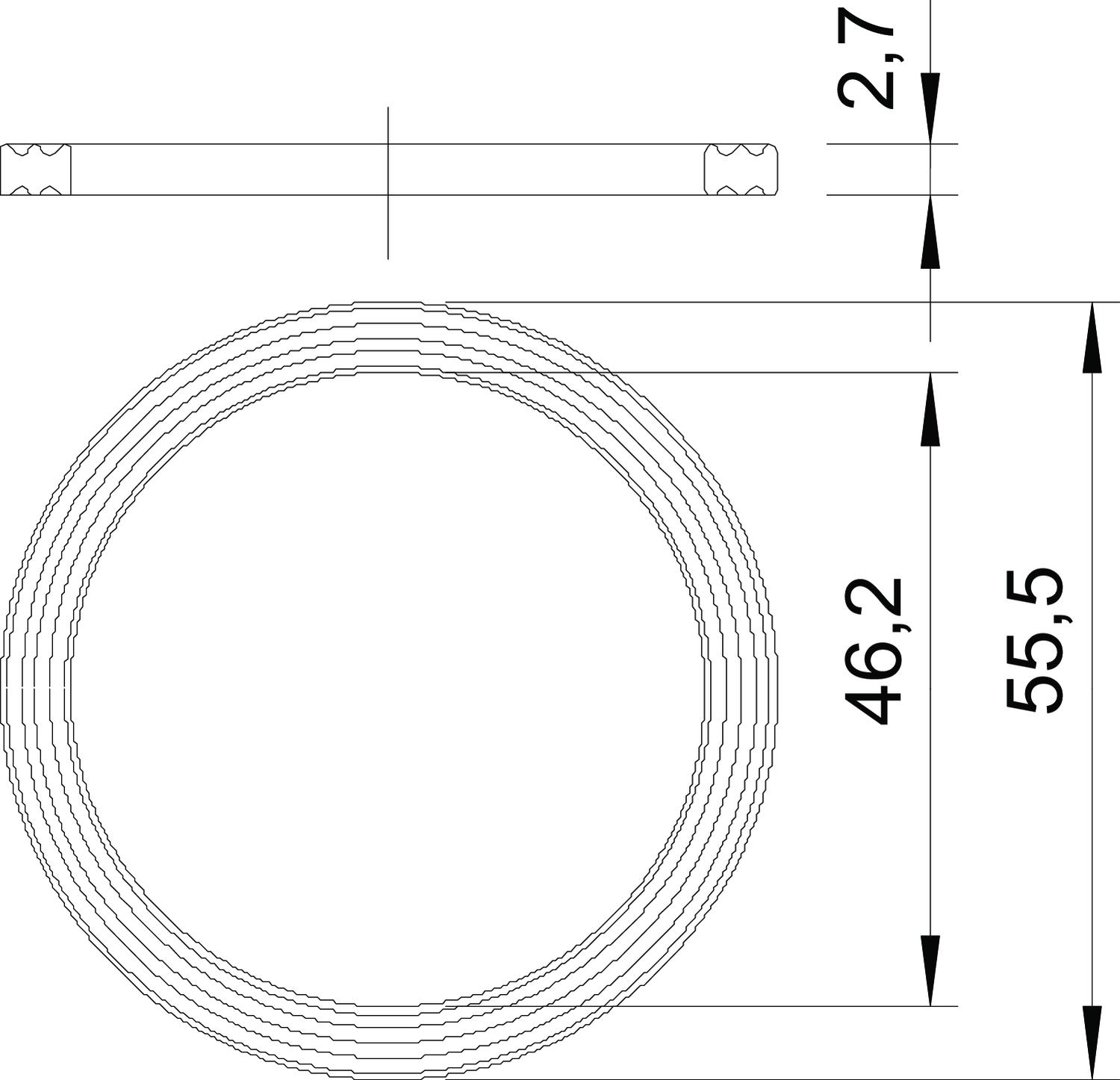

Dimensions

Dimension D1	55,5 mm
Dimension D2	46,2 mm

Dimension t	2,7 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	0,0232 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	0,0232 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-27T00:00:00.000+0200

All types

All types

Types	Dimension D1	Dimension D2	Dimension t	Item no.	Quantity	SSU
107 F PG7 PE	16.5 mm	12.1 mm	1.6 mm	2030071	piece	100 piece
107 F PG9 PE	19 mm	14.7 mm	1.6 mm	2030098	piece	100 piece
107 F PG11 PE	23 mm	18 mm	1.8 mm	2030101	piece	100 piece
107 F PG13.5 PE	25 mm	19.8 mm	1.8 mm	2030136	piece	100 piece
107 F PG16 PE	27 mm	21.8 mm	1.8 mm	2030160	piece	100 piece
107 F PG21 PE	34 mm	27.5 mm	2.2 mm	2030217	piece	100 piece
107 F PG29 PE	44 mm	36.2 mm	2.2 mm	2030292	piece	100 piece
107 F PG36 PE	55.5 mm	46.2 mm	2.7 mm	2030365	piece	100 piece
107 F PG48 PE	69.5 mm	58.5 mm	3.2 mm	2030489	piece	100 piece
