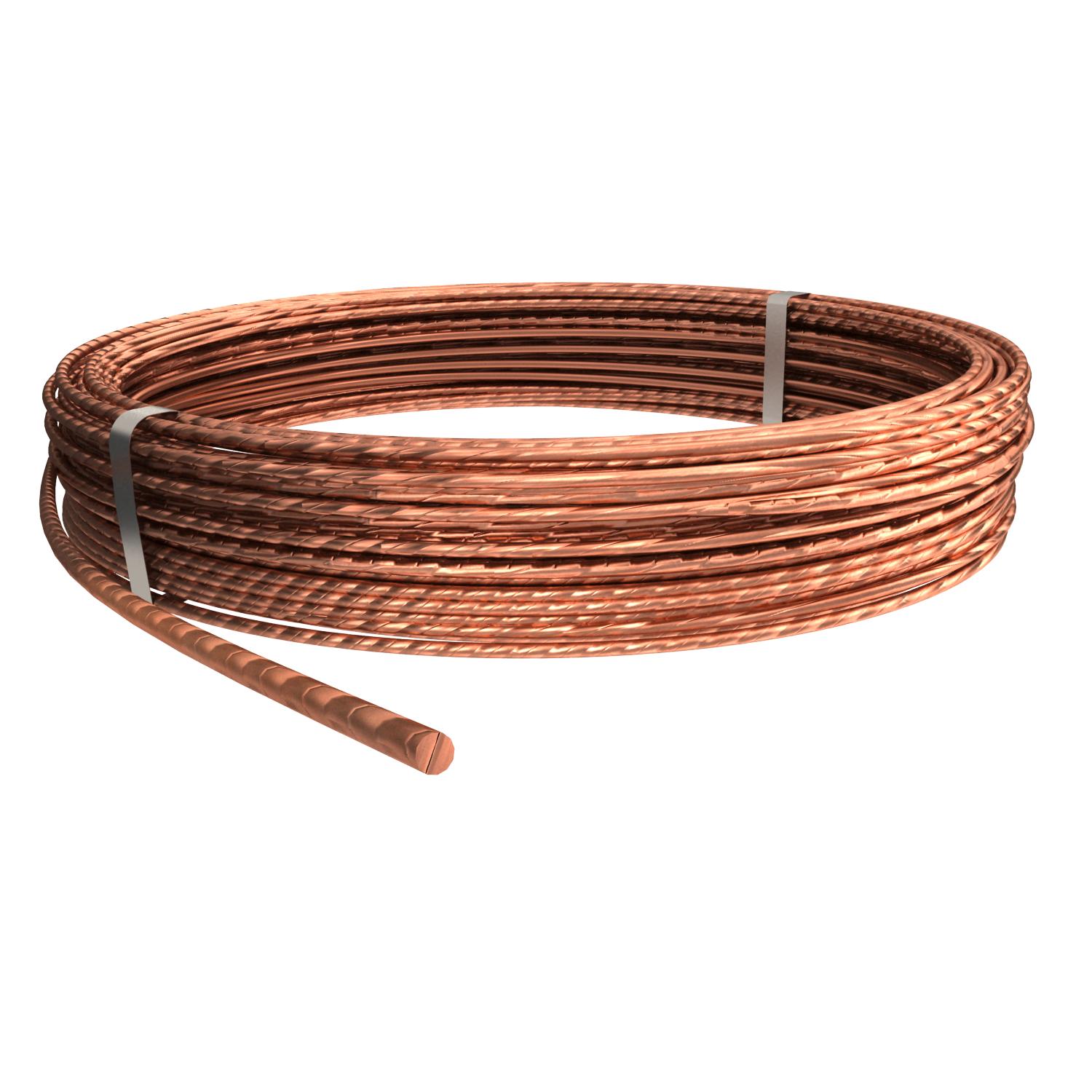

Copper cable
Item no. 5021654 | EAN 4012195836209
- Product description
-
Product description• Can be used as an earthing conductor to DIN EN 62561-2 (VDE 0185-561-2)
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
• Suitable for the earthing of high-voltage systems 1 kV to DIN VDE 0101-2
- Technical data
-
Technical data

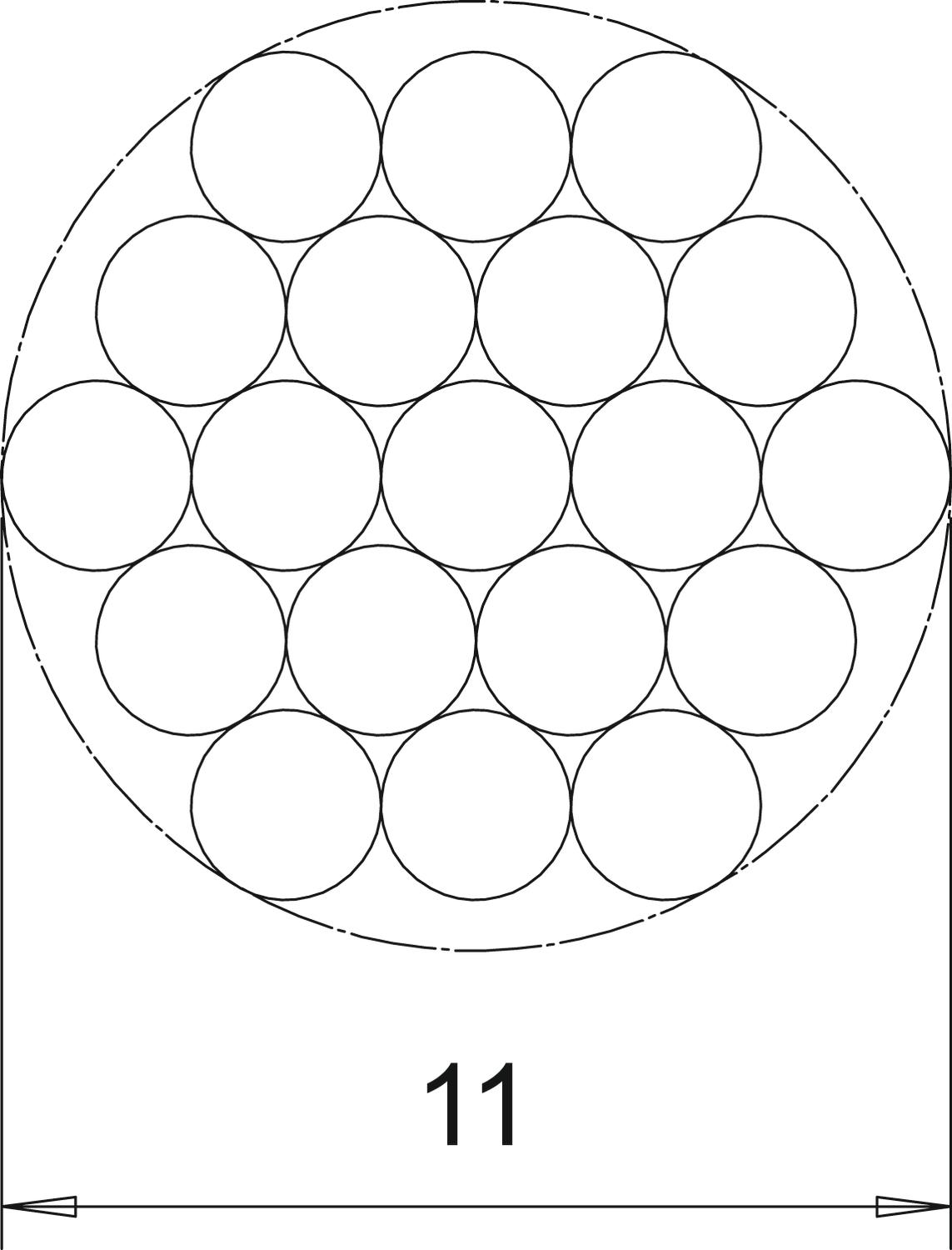

Cross-section 70 mm² Diameter 10,5 mm Diameter of the individual wires 2,1 mm Dimension 19x2,1mm Lightning protection application no Material Copper Material jacket Without Nomal ring (approx. kg) 30 Nomal ring (approx. m) 50 Number of individual wires 19 Dimensions
Dimension D 10,5 mm Length 50000 mm - All types
- Downloads
-
Data sheet S 11-CU / 5021654 , 0.20MB , pdfREACH Declaration of conformity S 11-CU / 5021654 , 0.10MB , pdfRoHS Declaration of conformity S 11-CU / 5021654 , 0.10MB , pdf
