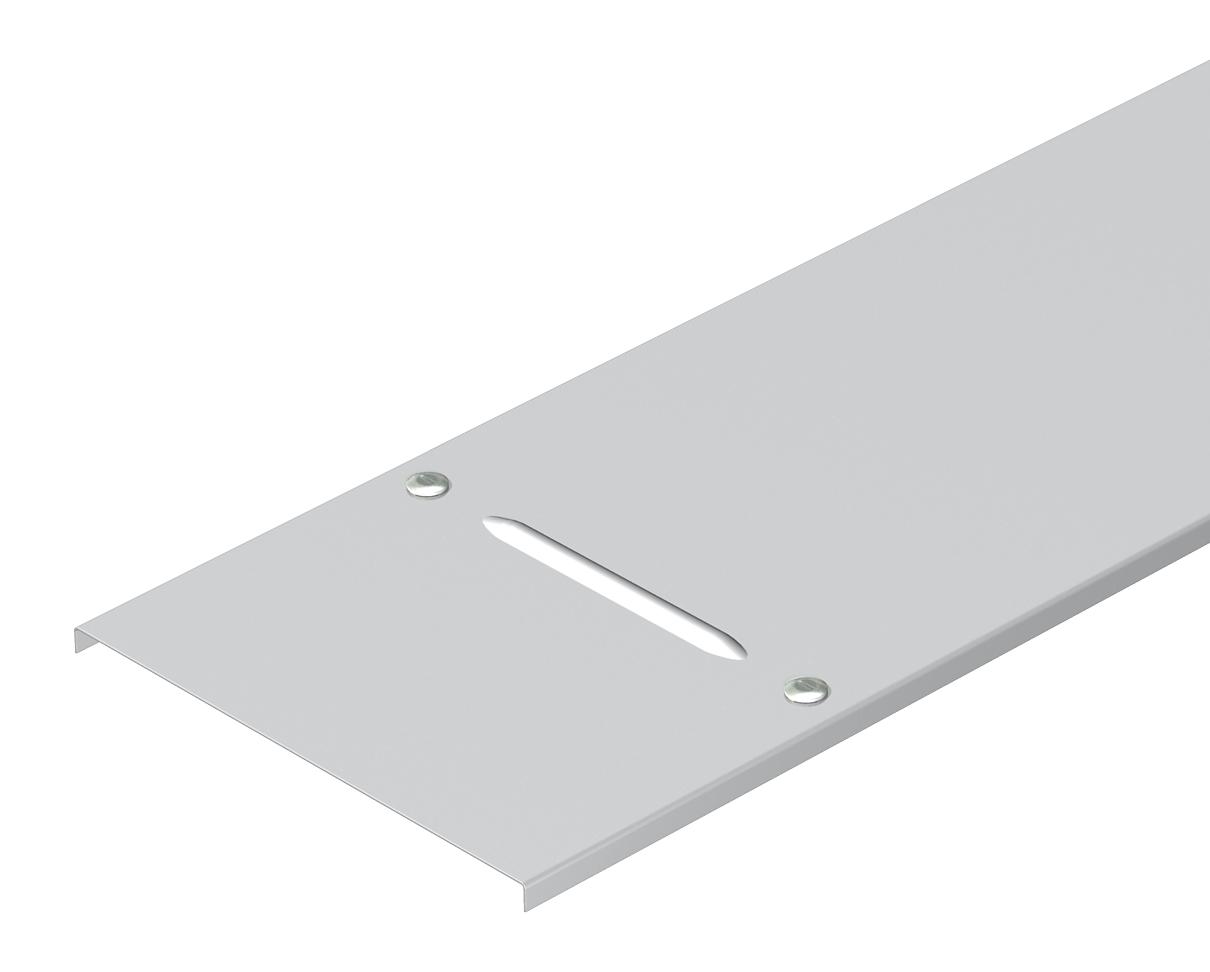

Cover with turn buckle WDRL 1116 20 A4
Item no. 6227361 | EAN 4012196802449
- Product description
-
Product descriptionCover for wide span trays and ladders with the side height 110 and 160 mm.
Cross beading from 500 mm width.

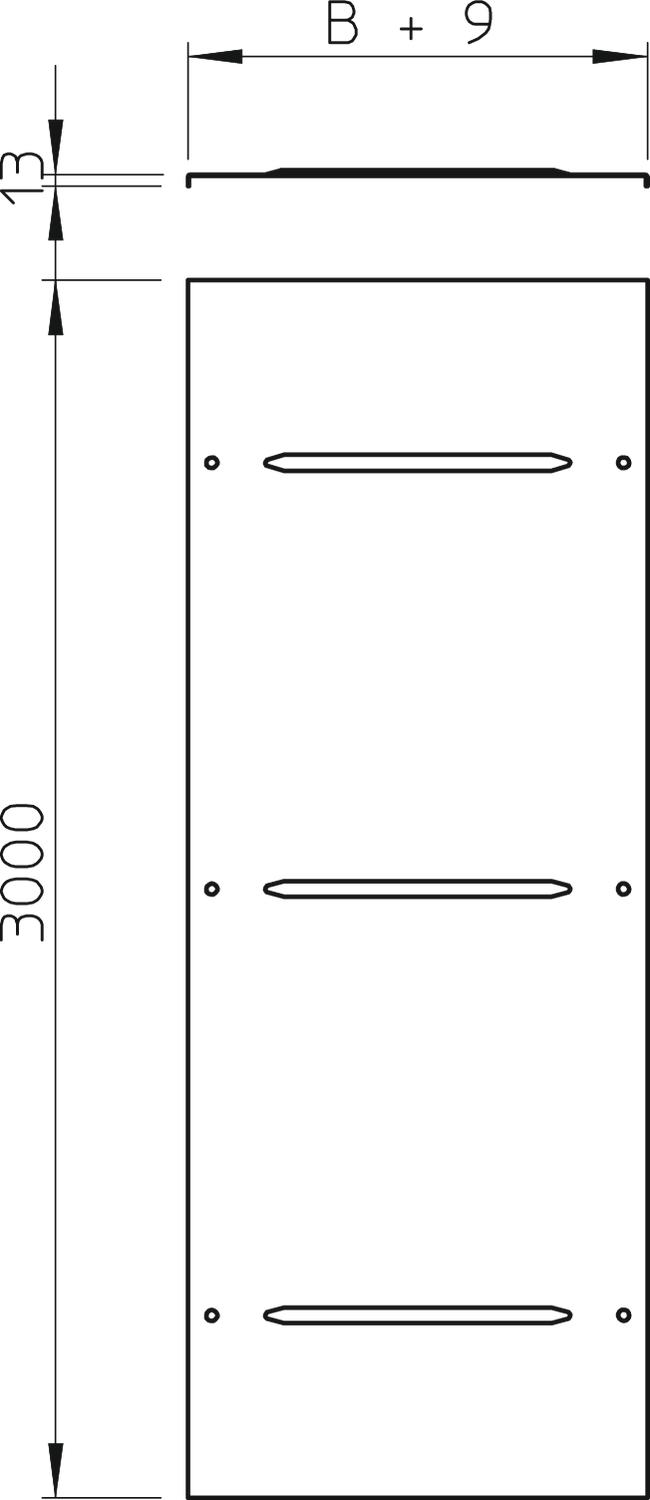

If a turn buckle is installed at a later time, the following dimensions of the drill hole arrangement should be maintained.
-
- Technical data
-
Technical data
Colour stainless steel Dimension 200x3000 Fastening type Sash lock Maintain electrical functions no Material Stainless steel 1.4571 Number of turn buckles 6 St. Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray no Surface Bright, treated Dimensions
Dimension B 200 mm Dimension H 15 mm Dimension L 3000 mm Height 13 mm Length 3000 mm Width 200 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 9,9383 kg CO2e / 1 Meter CO₂ Footprint (GWP) 9,9383 kg CO₂e Declared Unit (LCA) Metres Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
