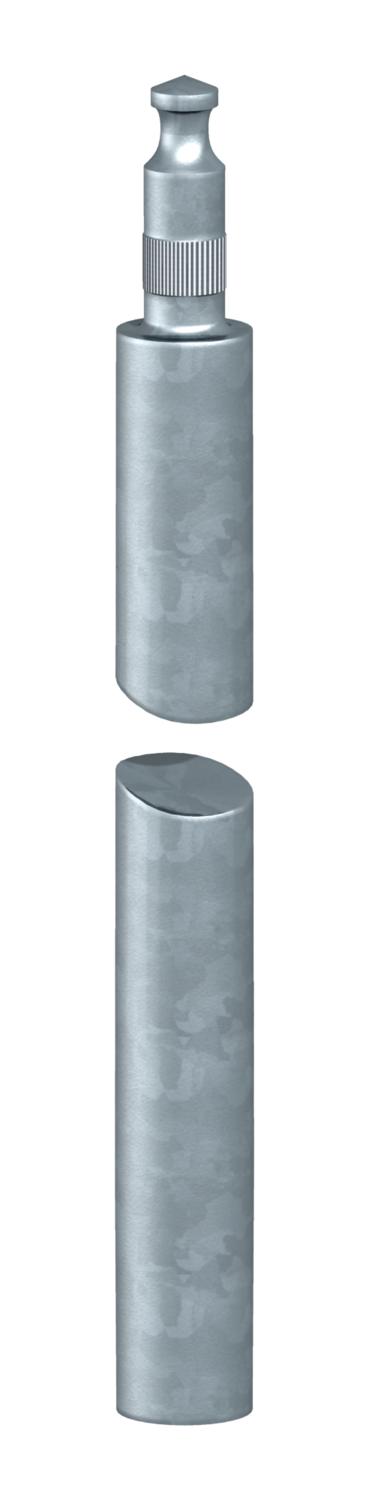

Earth rod BP, hot galvanised, 20 mm
Item no. 5000947 | EAN 4012195371892
- Product description
-
Product description• "BP" system (Bundespost)
• Very good contacting properties with soft metal inlay in the bore hole
• With peg and bore for linking together
• FT version with zinc coating approx. 130 µm
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2
-
- Technical data
-
Technical data

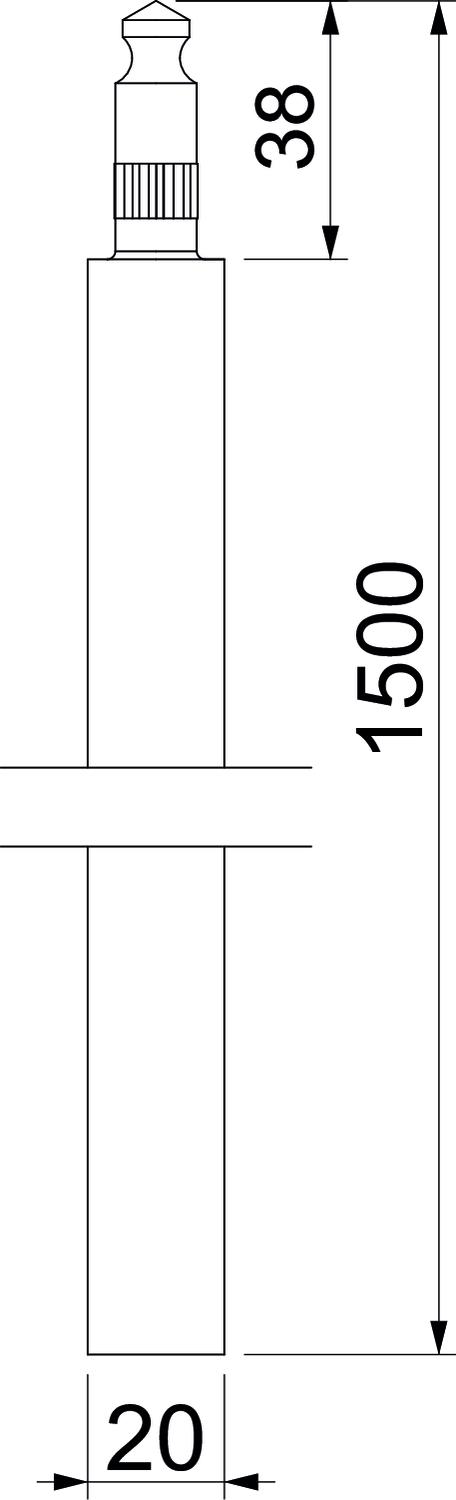

CO2 Footprint (GWP) Cradle-to-Gate 10,1912 kg CO2e / 1 Piece Dimension 1,5m Dimension L 1500 mm External diameter 20 mm Length 1500 mm Lightning current carrying capacity H/100 kA Material Steel Profile type Round D=20 mm Short-circuit current (50 HZ)(1 s;≤300°C) 7,9 kA Surface Hot-dip galvanised - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Driving spike for ST and BP earth rod
1819 20BP 3041212 5 piece
Driving head for ST, BP and OMEX earth rods
1820 20 3042200 1 piece
Connection clamp for earth rod on flat conductor FT
2730 20 FT 5001404 5 piece
Connection clamp for earth rod, universal FT
2760 20 FT 5001641 5 piece - Downloads
-
Data sheet 219 20 BP FT / 5000947 , 0.19MB , pdfEU declaration of conformity 219 20 BP FT / 5000947 , 0.06MB , pdfREACH Declaration of conformity 219 20 BP FT / 5000947 , 0.13MB , pdfRoHS Declaration of conformity 219 20 BP FT / 5000947 , 0.13MB , pdfMounting instructions Mounting instructions, earth rod , 0.15MB , pdf
