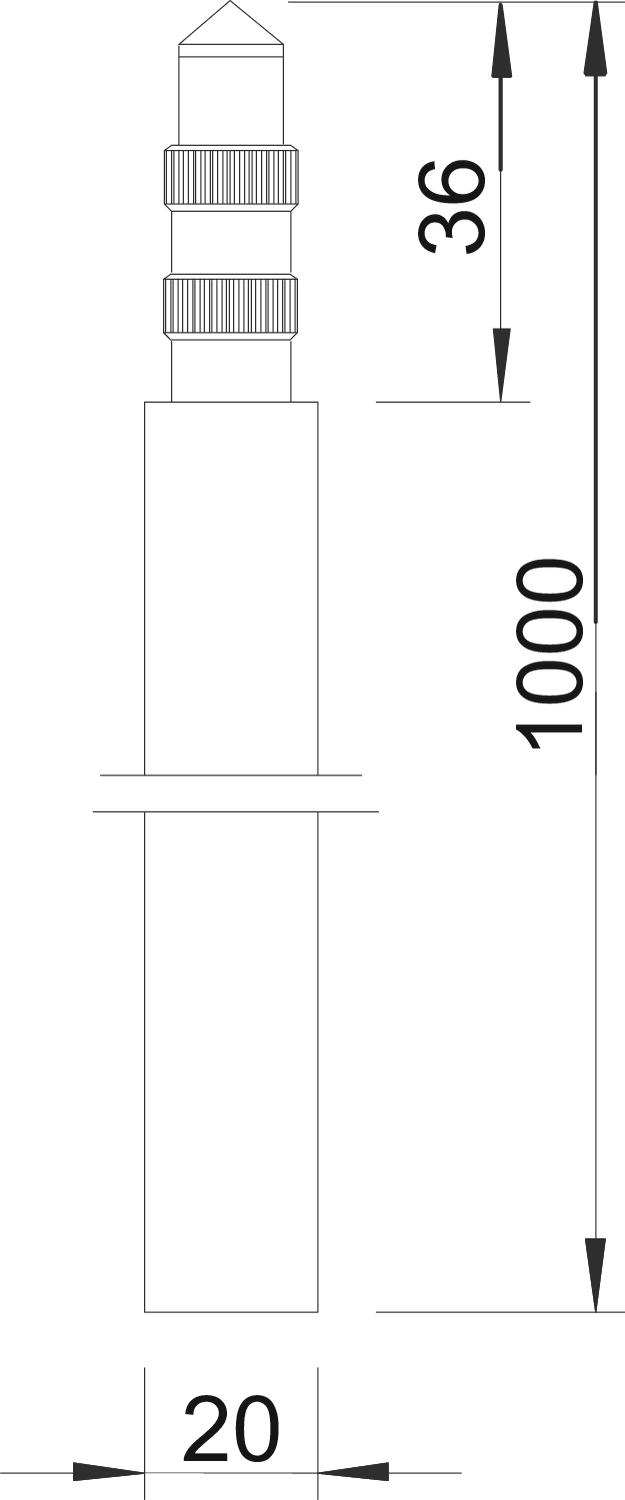

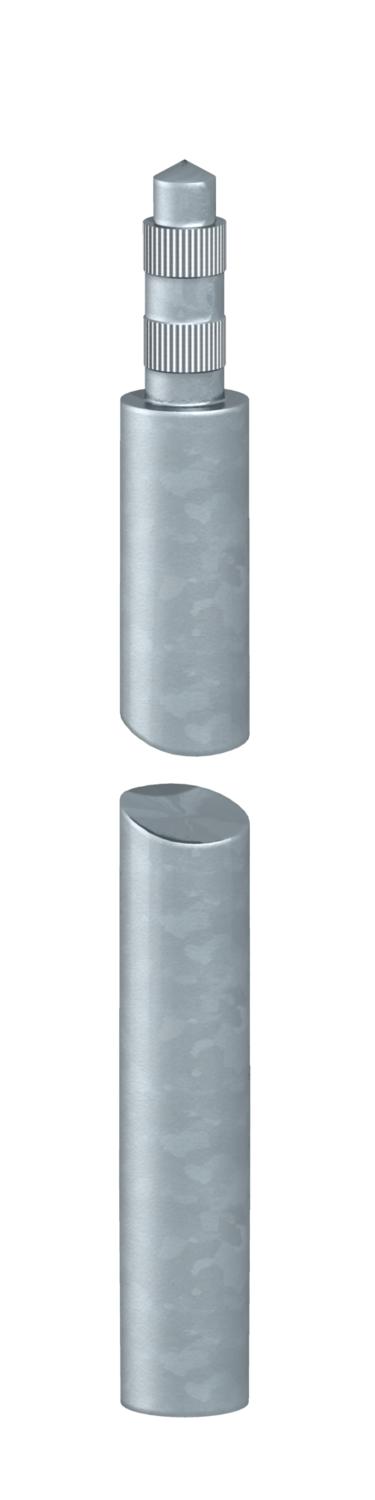

Earth rod for standard applications, hot galvanised, 20 mm 1000 | 20 | Steel

Earth rod for standard applications, hot galvanised, 20 mm

Item no. 5000742 | EAN 4012195018049

Item no. / Types

Length

External diameter	20 mm

Material	Steel

Product description

Product description

• High corrosion resistance

• Zinc support approx. 130 µm

• With peg and bore for linking together

• Round pegs with two knurls

• Conforms to the requirements according to VDE 0185-305 (IEC 62305)

• Short-circuit current Ik (50 Hz), time 1 s, temp. max. 300 °C: 7.9 kA

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	7,1416 kg CO2e / 1 Piece
Dimension	1,0m
External diameter	20 mm
Length	1000 mm
Lightning current carrying capacity	H/100 kA

Material	Steel
Profile type	Round D=20 mm
Short-circuit current (50 HZ)(1 s;≤300°C)	7,9 kA
Surface	Hot-dip galvanised

All types

All types

Types	Length	External diameter	Material	Item no.	Quantity	SSU
219 20 ST FT	1000 mm	20 mm	Steel	5000742	piece	5 piece
219 20 ST FT	1500 mm	20 mm	Steel	5000750	piece	5 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Driving spike for ST and BP earth rod	1819 20BP	3041212	piece	5 piece
Driving head for ST, BP and OMEX earth rods	1820 20	3042200	piece	1 piece

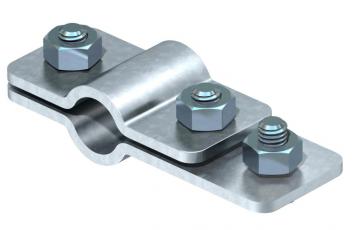

Connection clamp for earth rod on flat conductor FT	2730 20 FT	5001404	piece	5 piece

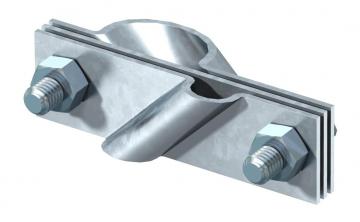

Connection clamp for earth rod, universal FT	2760 20 FT	5001641	piece	5 piece
