End piece, trunking type WDK 100130 150 | 130 | 130 | Cream; RAL 9001
morepic-1 morepic-2

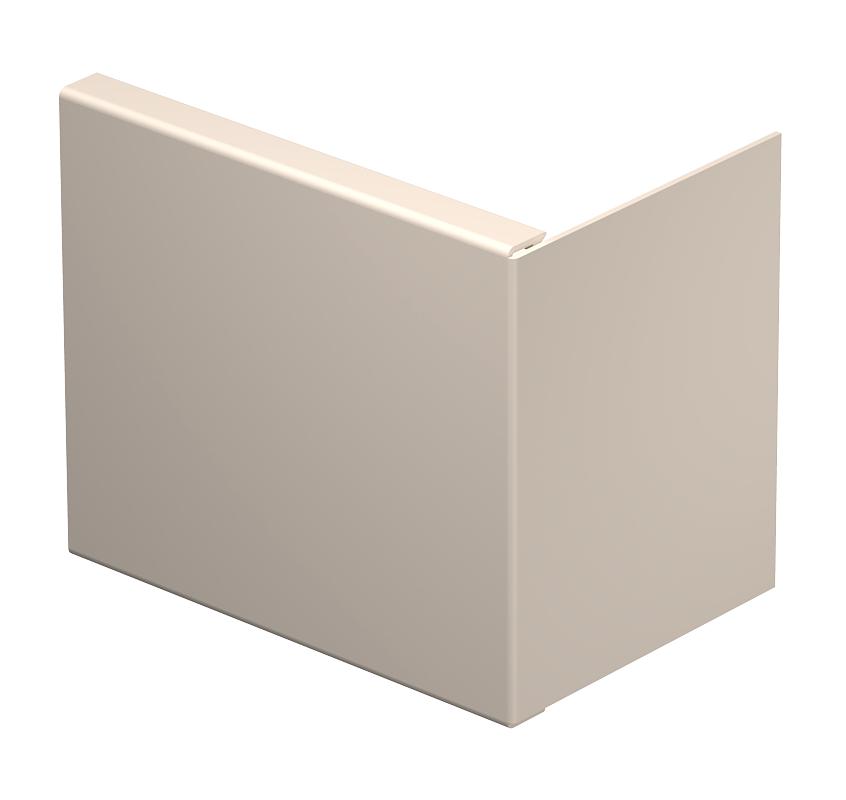

End piece, trunking type WDK 100130

Item no. 6163041 | EAN 4012196110353

6163041 / WDK HE100130CW
150 mm
130 mm
130 mm
Cream; RAL 9001
Product description
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking in the same way as the covers.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 100x130mm
Fastening type Lockable
Halogen-free no
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right

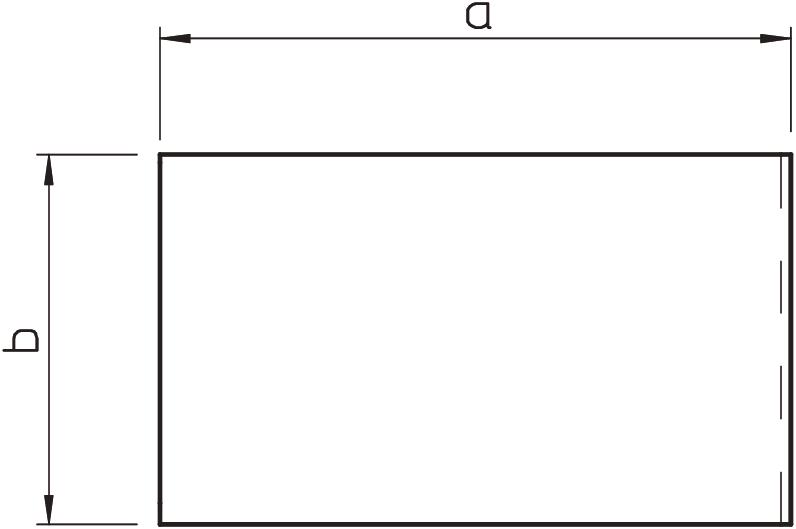

Dimensions

Dimension a 150 mm
Dimension b 130 mm
Dimension H 130 mm
Height 100 mm
Length 150 mm
Width 130 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,3312 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,3312 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE100130CW 150 mm 130 mm 130 mm Cream; RAL 9001 6163041
10 piece
Downloads

Download
Download

Download

EU declaration of conformity WDK HE100130CW / 6163041 , 0.10MB , pdf
Download
UK Declaration of Conformity WDK HE100130CW / 6163041 , 0.09MB , pdf
Download
REACH Declaration of conformity WDK HE100130CW / 6163041 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HE100130CW / 6163041 , 0.13MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
