End piece, trunking type WDK 25025 25 | 25 | 25 | Cream; RAL 9001
morepic-1 morepic-2

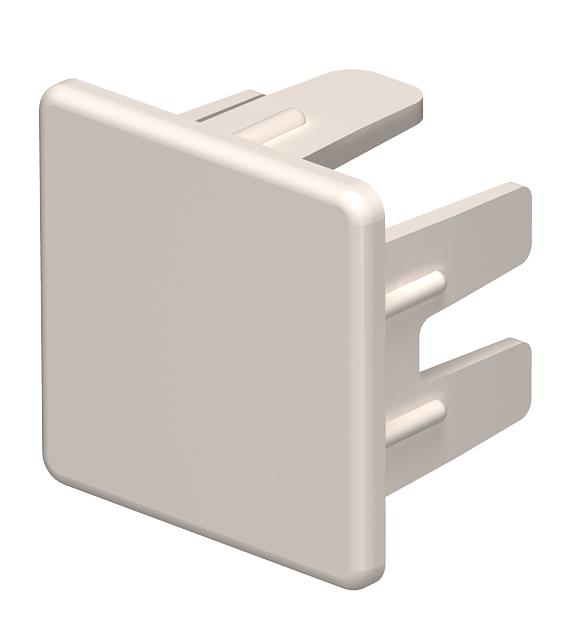

End piece, trunking type WDK 25025

Item no. 6162533 | EAN 4012196583812

6162533 / WDK HE25025CW
25 mm
25 mm
25 mm
Cream; RAL 9001
Product description
Product description
End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
Technical data

Technical data

Antibacterial treatment no
CO2 Footprint (GWP) Cradle-to-Gate 0,0124 kg CO2e / 1 Piece
Colour Cream; RAL 9001

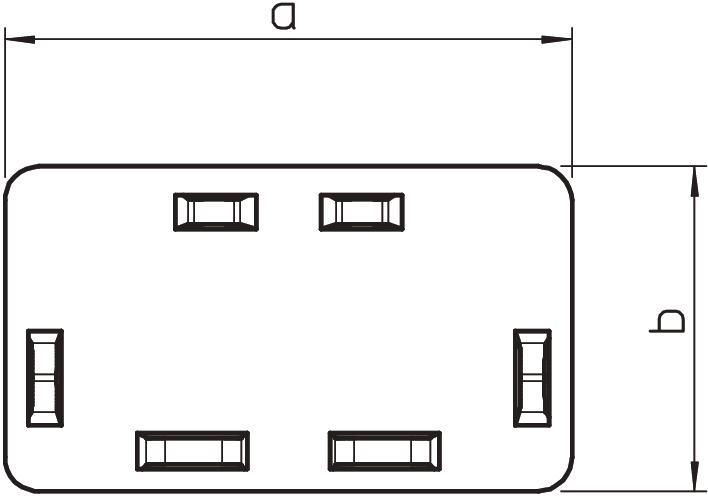

Dimension 25x25mm
Dimension a 25 mm
Dimension b 25 mm
Dimension H 25 mm
Fastening type Lockable
Halogen-free no
Height 25 mm
Length 17 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Left/right
Width 25 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HE25025CW 25 mm 25 mm 25 mm Cream; RAL 9001 6162533
10 piece
Downloads

Download
Download

Download

EU declaration of conformity WDK HE25025CW / 6162533 , 0.10MB , pdf
Download
UK Declaration of Conformity WDK HE25025CW / 6162533 , 0.09MB , pdf
Download
REACH Declaration of conformity WDK HE25025CW / 6162533 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HE25025CW / 6162533 , 0.13MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
