Equipotential busbar 1804 for concealed mounting
Item no. 5015545 | EAN 4012195378433
- Product description
-

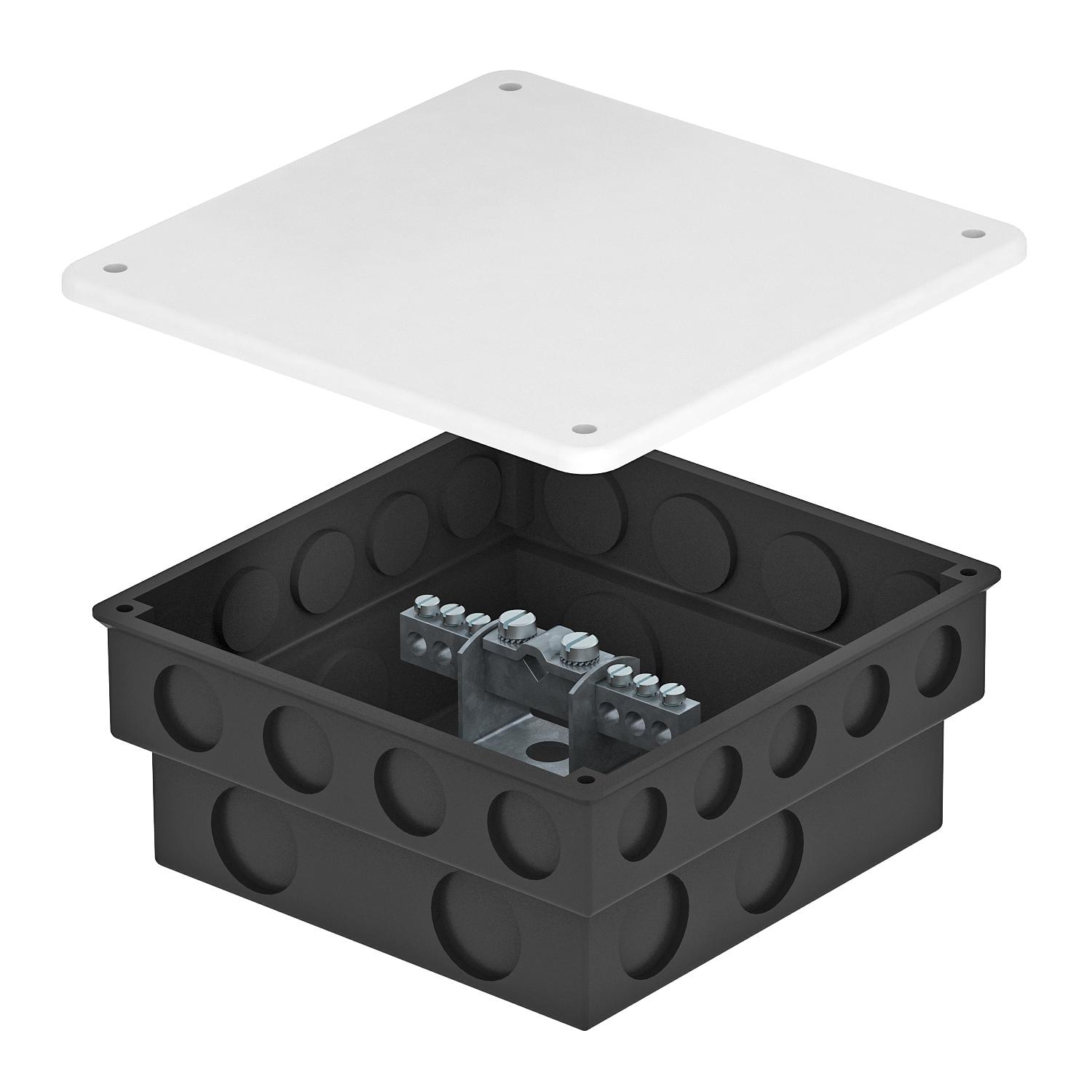

Product description• Mounted equipotential busbar 1804 in concealed housing
• Pre-marked concealed housing for inserting required cables and covers
• Contact strip made of nickel-plated brass
• Bolts and crossbar made of electrogalvanised steel
Connection options:
• 6x cables 1.5–10 mm²
• 1x cable 6–16 mm²
-
- Technical data
-
Technical data
Dimension 50x5mm Insulator yes Material Brass Material of the contact rail Brass Material of the terminal Steel Quantity of cable connections up to 16 mm², rigid 7 Quantity of flat conductor connections up to 30 mm 1 Quantity of round conductor connections 8-10 mm 1 Quantity of round conductor connections, total 7 Surface of the contact rail Nickel-plated Surface of the terminal Electrogalvanised Type Fixed structure Version for In the housing Dimensions

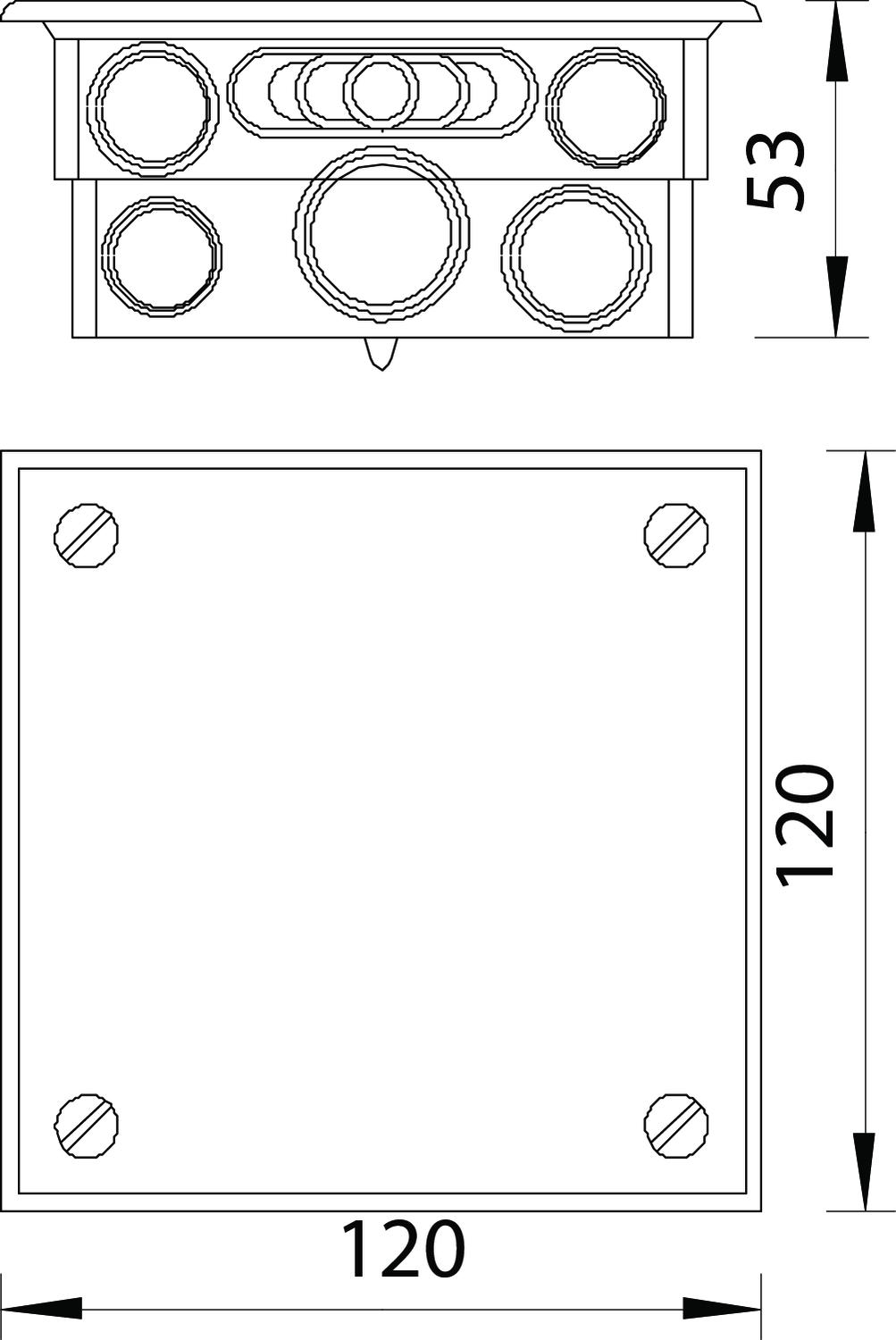

Height 53 mm Length 120 mm Width 120 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0748 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0748 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
