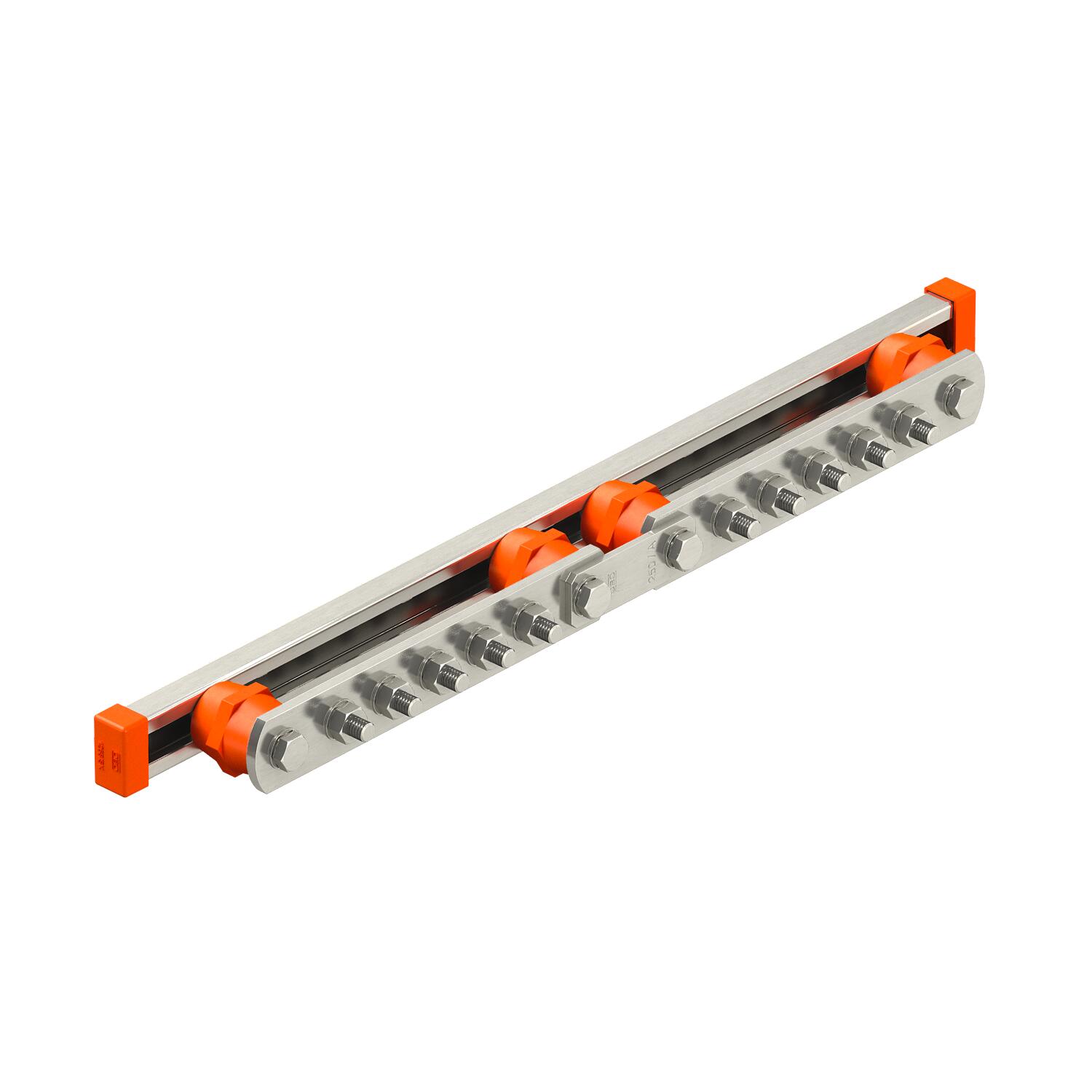

Equipotential busbar for flexible wall mounting with separation point
Item no. 5015876 | EAN 4012196681938
- Product description
-
Product descriptionMain equipotential busbar for equipotential bonding to VDE 0100 Part 410/-540 and
lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• With separation point (Disconnect - DC)
• For flexible wall mounting
• Complete with profile rail (FT) and screws
• Rust-proof stainless steel versions (V2A) are suitable for outdoor use
• Quick, simple mounting of the connection cable using
lock bolts M10
• With lock washer (DIN 137) for bolt locking against loosening
-
- Technical data
-
Technical data
Dimension 5+5 x M10 Insulator yes Lightning current carrying capacity H/100 kA Material Stainless steel 1.4301 Material of the contact rail Rustproof steel (V2A) Material of the terminal Rustproof steel (V2A) Number of connections 10 Type Modular structure Version for Only terminal Dimensions

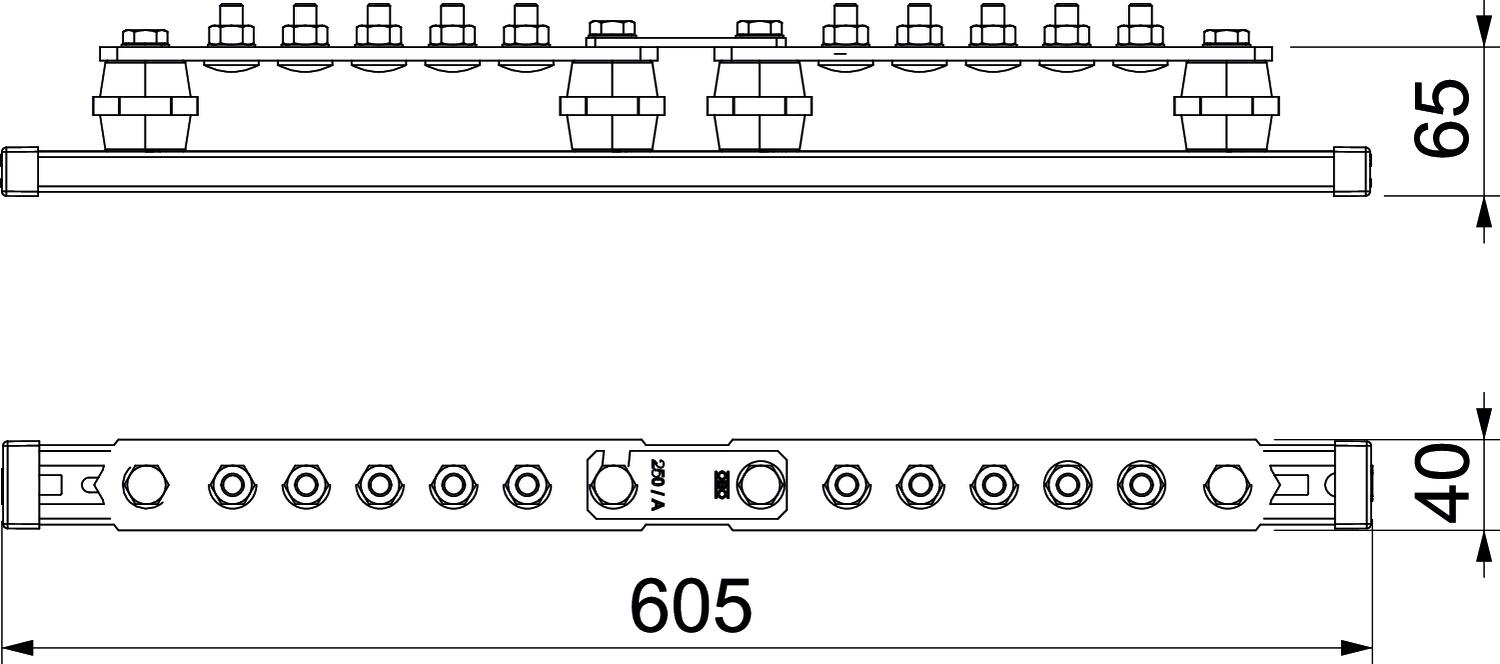

Height 85 mm Length 605 mm Width 40 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 9,7349 kg CO2e / 1 Piece CO₂ Footprint (GWP) 9,7349 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 1802 DC 5+5 VA / 5015876 , 0.19MB , pdfEU declaration of conformity 1802 DC 5+5 VA / 5015876 , 0.10MB , pdfManufacturer declaration 1802 DC 5+5 VA / 5015876 , 0.05MB , pdfREACH Declaration of conformity 1802 DC 5+5 VA / 5015876 , 0.12MB , pdfRoHS Declaration of conformity 1802 DC 5+5 VA / 5015876 , 0.13MB , pdfInstallation instructions Mounting and installation instructions, equipotential busbar 1802... , 2.00MB , pdf
