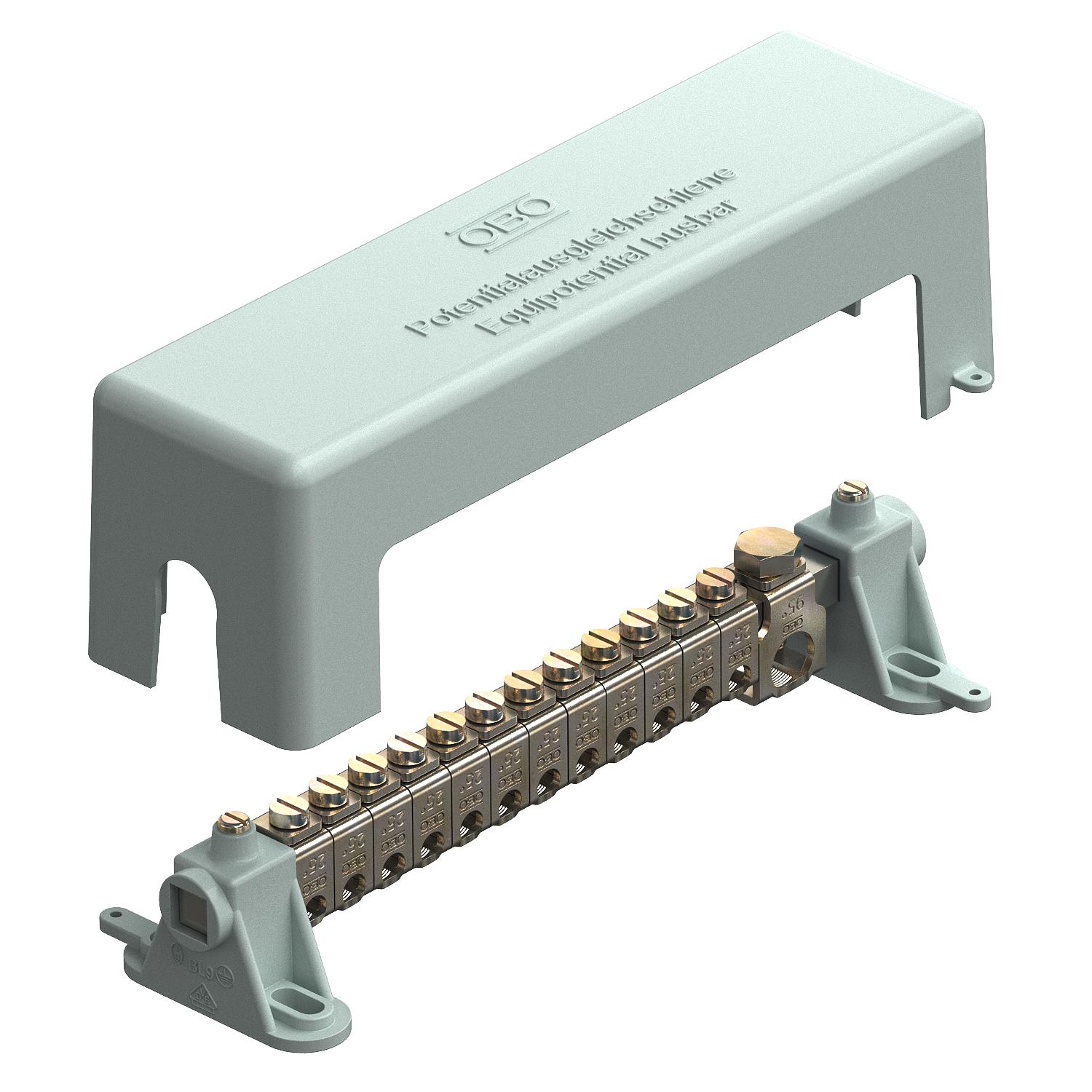

Equipotential busbar for indoors
Item no. 5015683 | EAN 4012196868421
- Product description
-
Product descriptionEquipotential busbar for equipotential bonding to DIN VDE 0100-410/-540 as well as lightning protection equipotential bonding to DIN VDE 0185-305
• With 10 x 10 mm clamping rail made of nickel-plated brass
• With contact-secure series terminals made of electrogalvanised steel
• Cover and rail stands made of grey polystyrene
• Sealable/labellable cover
• Lightning current carrying capacity 100 kA (10/350)
• Tension clamp with screw lock against self-loosening (e.g. required in industry)
Connection options:
• 12 single or multi-wire cables 2.5–25 mm² or fine-wire cables to 16 mm² (max. Ø 7 mm)
• 1 single or multi-wire cable 25–95 mm² or fine-wire cable to 70 mm² (max. Ø 13.5 mm)
-
- Technical data
-
Technical data
Colour Grey Dimension 217mm Insulator yes Material Brass Material of the contact rail Brass Material of the terminal Steel Quantity of cable connections up to 95 mm², rigid 2 Surface of the contact rail Nickel-plated Surface of the terminal Electrogalvanised Type Modular structure Version for With cover hood Dimensions
Height 67,5 mm Length 217 mm Width 63 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,5108 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,5108 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
