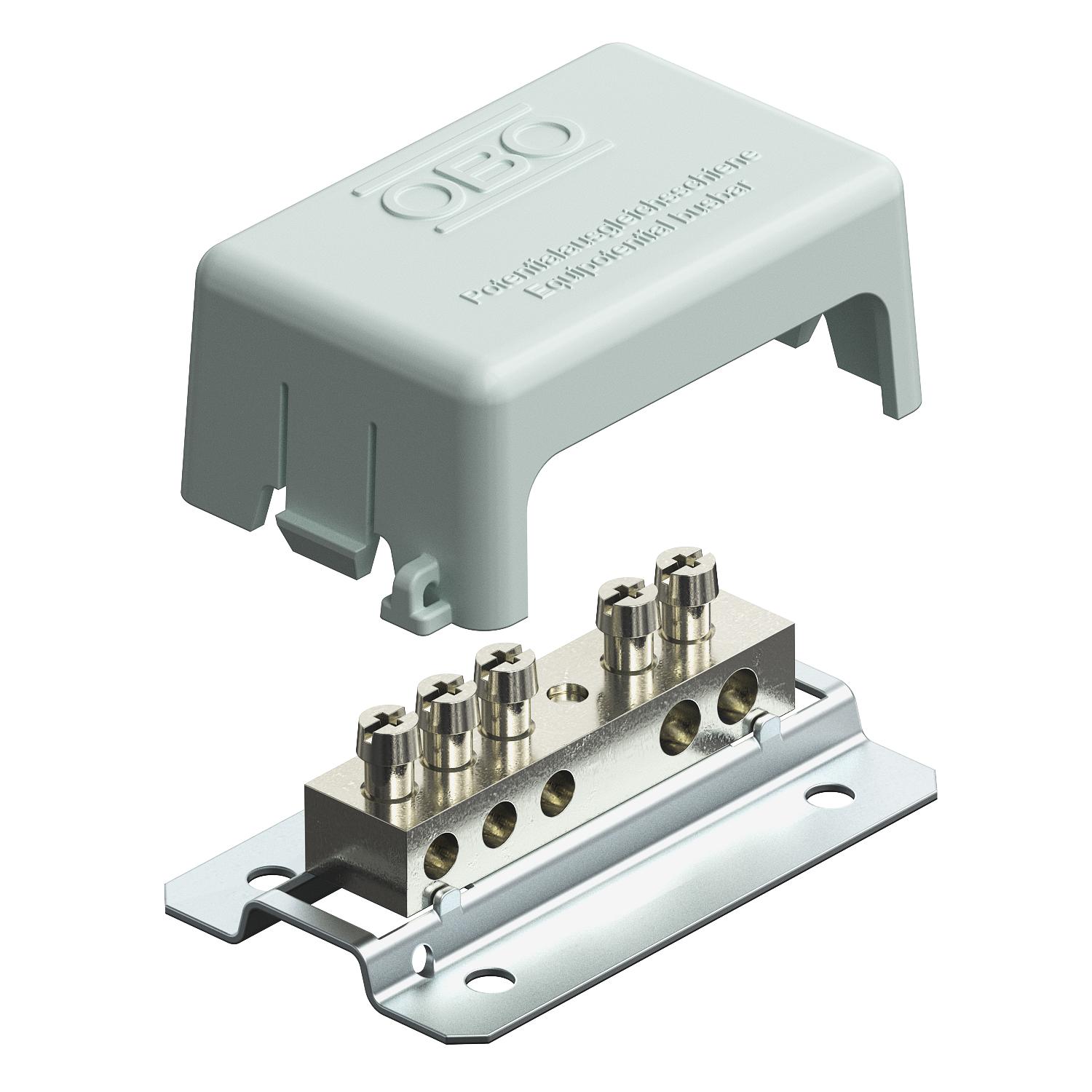

Equipotential busbar for small systems
Item no. 5015502 | EAN 4012195378372
- Product description
-
Product description• Cover made of polystyrene, grey
• Sealable/labellable
• Base plate made of strip galvanised steel
• Contact strip and screws made of nickel-plated brass
Connection options:
• 3 x multi-core cables to 6 mm²
• 2 x multi-core cables to 16 mm²
-
- Technical data
-
Technical data
Colour Grey Dimension 72x45mm Insulator no Material Brass Material of the contact rail Brass Material of the terminal Brass Quantity of cable connections up to 16 mm², rigid 2 Quantity of cable connections up to 6 mm², rigid 3 Surface of the contact rail Nickel-plated Surface of the terminal Nickel-plated Type Fixed structure Version for With cover hood Dimensions

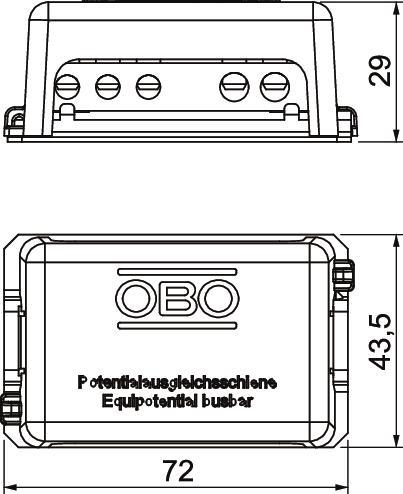

Height 29 mm Length 72 mm Width 43,5 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,3406 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,3406 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 1809 BG / 5015502 , 0.17MB , pdfEU declaration of conformity 1809 BG / 5015502 , 0.10MB , pdfREACH Declaration of conformity 1809 BG / 5015502 , 0.10MB , pdfRoHS Declaration of conformity 1809 BG / 5015502 , 0.13MB , pdf
