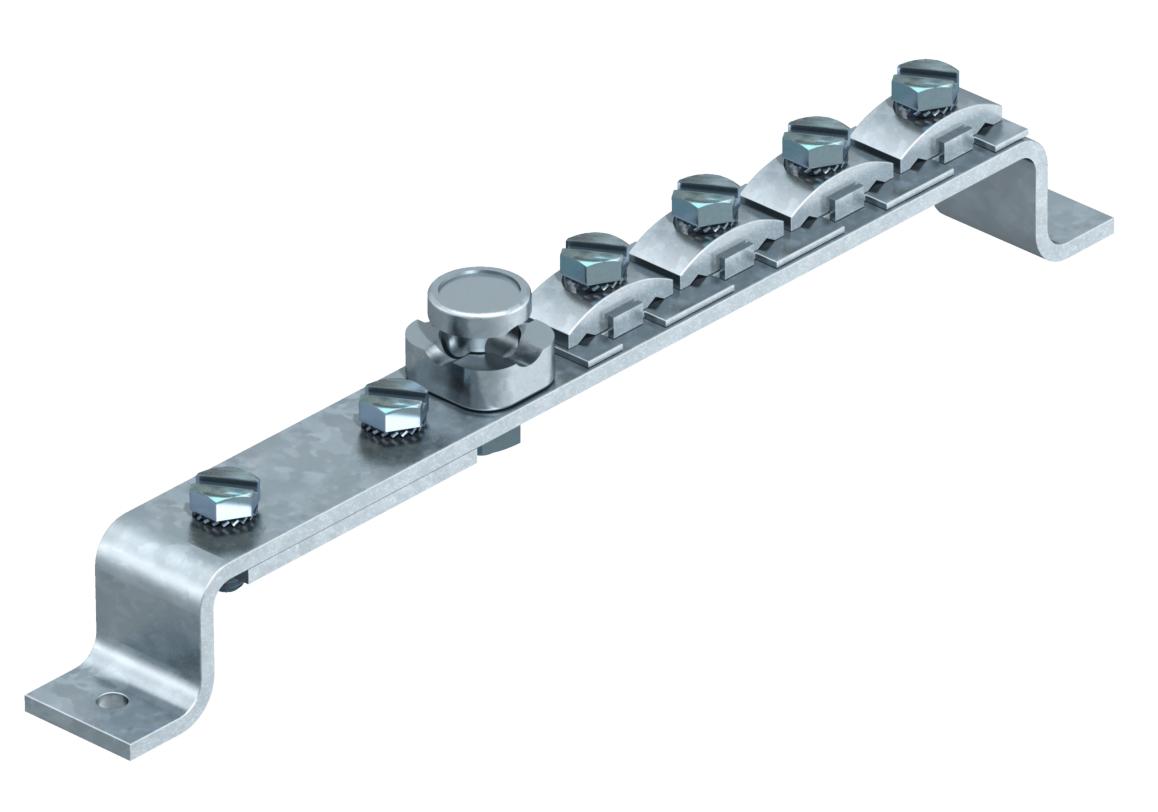

Equipotential busbar, simple version
Item no. 5015014 | EAN 4012195378075
- Product description
-
Product description• Clamp and crossbar, electrogalvanised steel
• Clamping element and contact strip, brass, screws, hot dipped galvanised steel
Connection options:
• 8 x cables to 25 mm²
• 1 x round conductor Rd 8-10
• 1 x flat conductor to FL 40
-
- Technical data
-
Technical data
Dimension 300mm Insulator no Material Brass Material of the contact rail Brass Material of the terminal Brass Quantity of cable connections up to 25 mm², rigid 8 Quantity of flat conductor connections up to 40 mm 1 Quantity of round conductor connections 8-10 mm 1 Quantity of round conductor connections, total 1 Surface of the contact rail Nickel-plated Surface of the terminal Nickel-plated Type Fixed structure Version for Without cover hood Dimensions

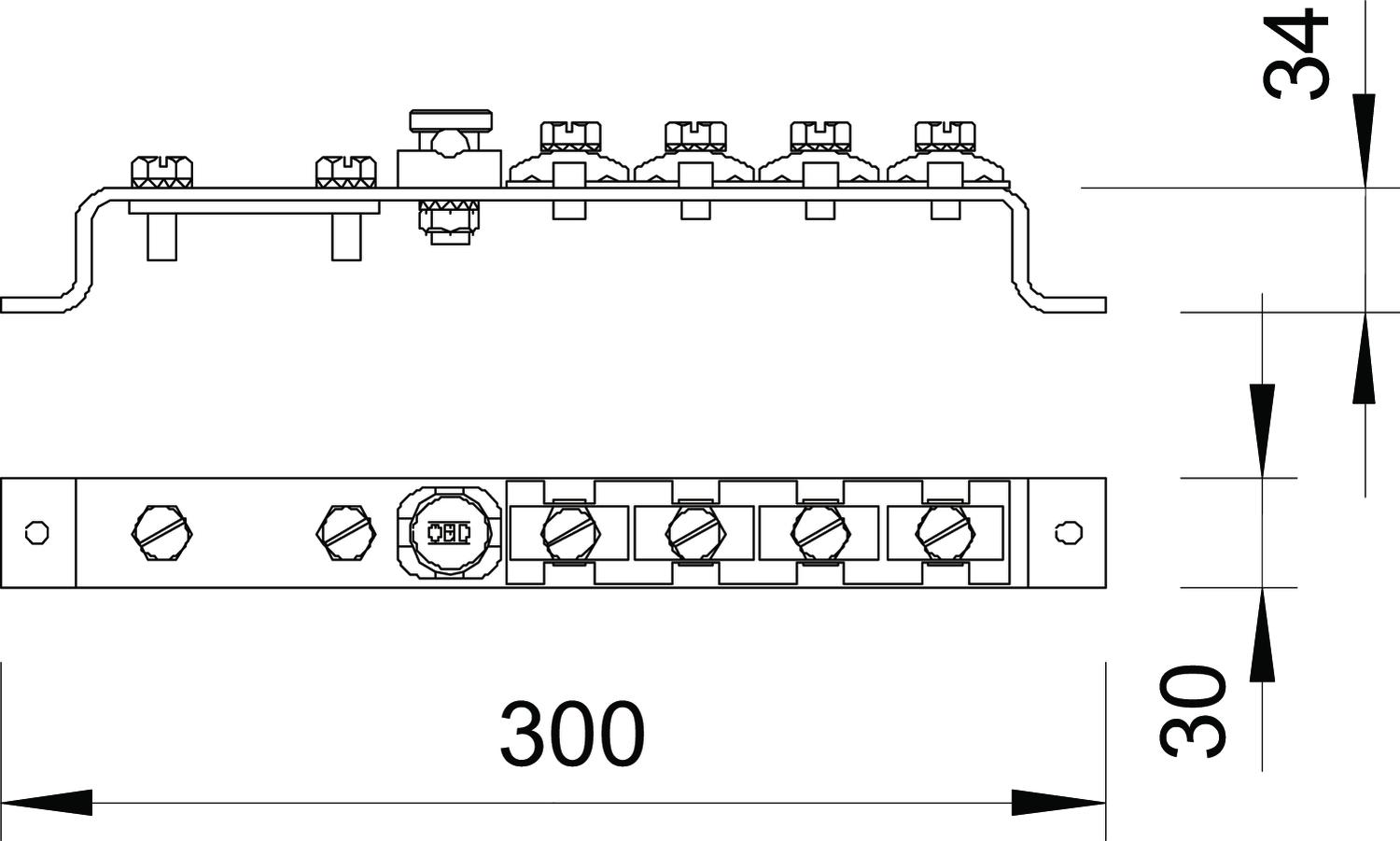

Height 34 mm Length 300 mm Width 30 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,5903 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,5903 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
