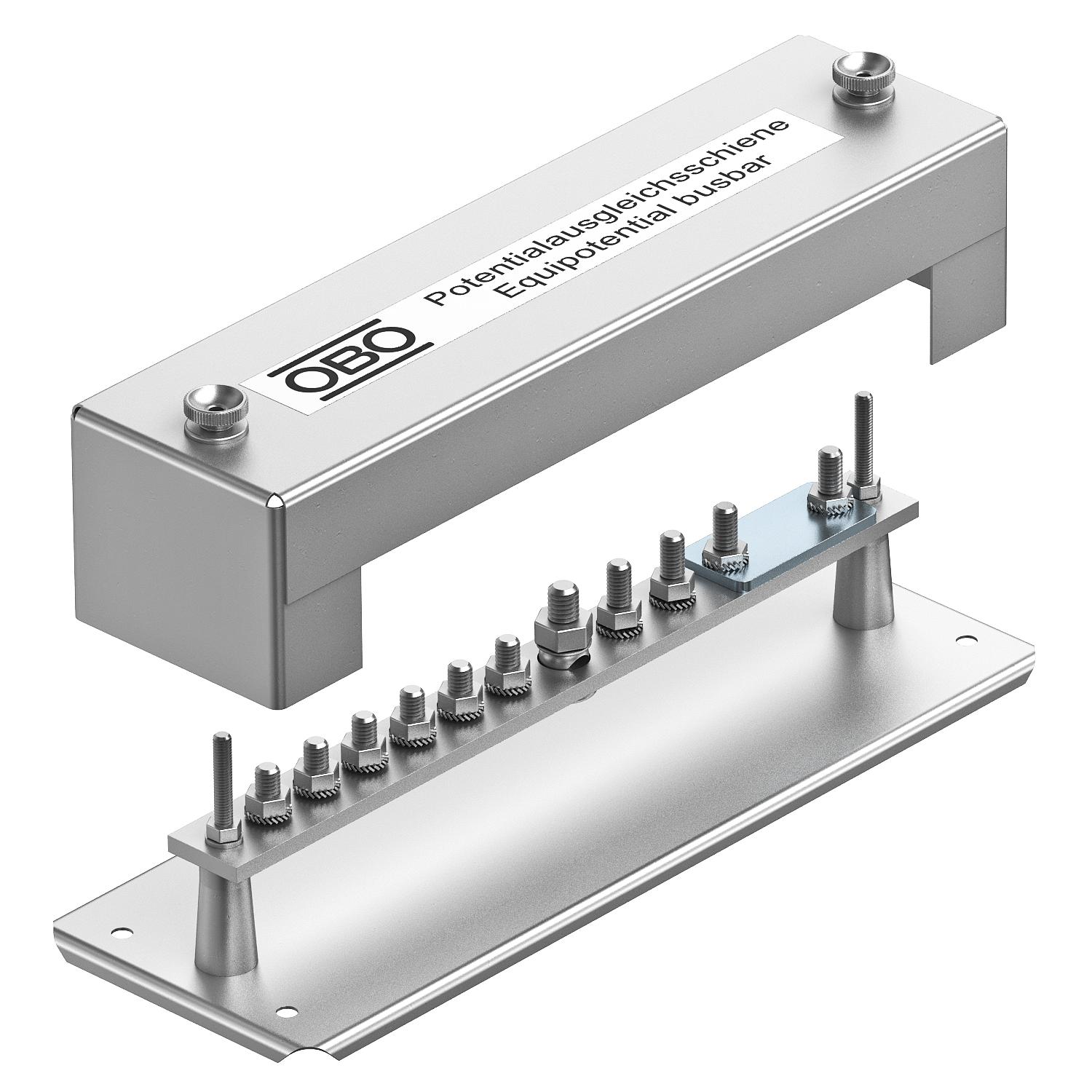

Equipotential busbar, solid version
Item no. 5015057 | EAN 4012195378136
- Product description
-
Product description• Base plate and screw-on cover made of strip-galvanised steel
• Sealable / labellable cover
• Contact strip made of strip-galvanised steel
• Screws and crossbar made of steel, hot-dip galvanised or electrogalvanised
Connection options:
• 6 cables 6-16 mm²
• 1 round conductor Rd 8-10
• 1 flat conductor to FL 40
• 2 cable shoe M8
-
- Technical data
-
Technical data
Dimension 348mm Insulator no Material Steel Material of the contact rail Brass Material of the terminal Steel Quantity of cable connections up to 16 mm², rigid 6 Quantity of flat conductor connections up to 40 mm 1 Quantity of round conductor connections 8-10 mm 1 Quantity of round conductor connections, total 1 Surface Hot galvanised Surface of the contact rail Nickel-plated Surface of the terminal Electrogalvanised Type Fixed structure Version for With cover hood Dimensions

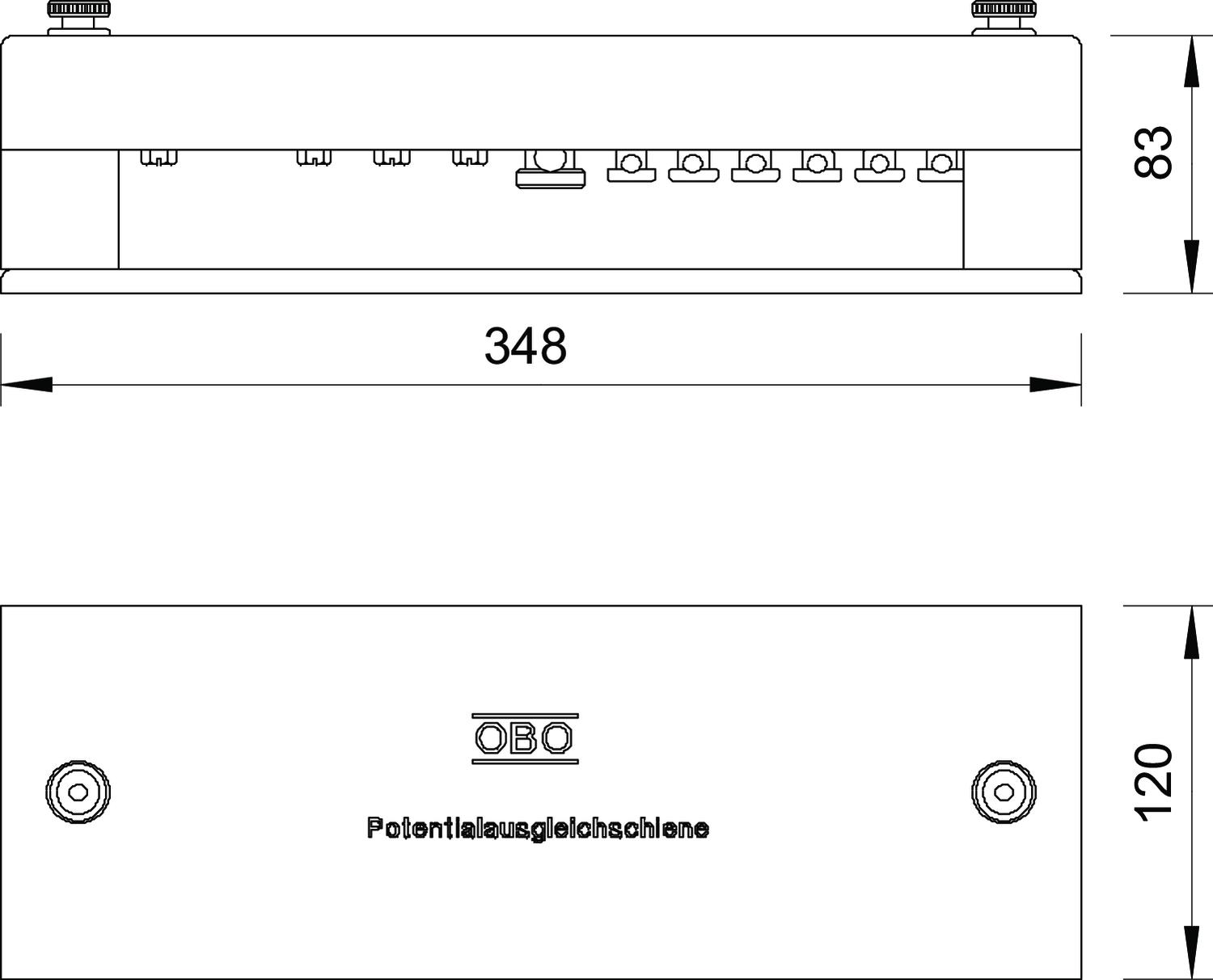

Height 83 mm Length 348 mm Width 120 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 4,6032 kg CO2e / 1 Piece CO₂ Footprint (GWP) 4,6032 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 1810 / 5015057 , 0.19MB , pdfEU declaration of conformity 1810 / 5015057 , 0.10MB , pdfREACH Declaration of conformity 1810 / 5015057 , 0.12MB , pdfRoHS Declaration of conformity 1810 / 5015057 , 0.12MB , pdf
