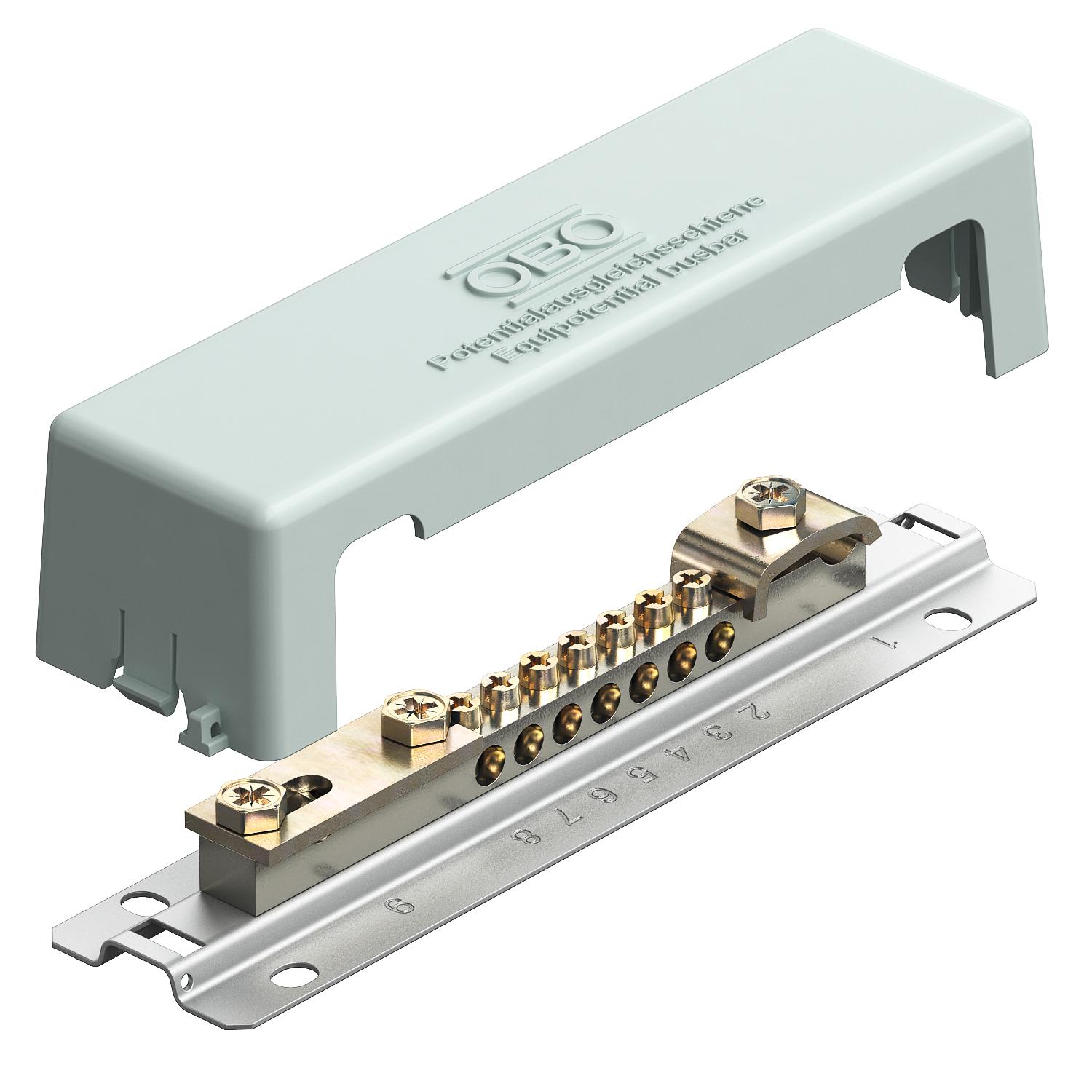

Equipotential busbar with metal base plate
Item no. 5015081 | EAN 4012195378310
- Product description
-
Product descriptionEquipotential busbar with metal foot for equipotential bonding according to DIN VDE 0100-410/-540 and lightning protection equipotential bonding according to DIN VDE 0185-305
• Cover hood from polystyrene, grey
• Sealable/labellable cover
• Base plate made of strip-galvanised steel
• Contact strip made of nickel-plated brass
• Screws and crossbar made of electrogalvanised steel
• Capable of carrying lightning current 100 kA (10/350)
Connection options:
• 7x single or multi-core cables to 25 mm² or fine-core cables to 16 mm²
• 1x round conductor Rd 8–10
• 1x flat strip to FL30 or round conductor Rd 8–10
-
- Technical data
-
Technical data
Colour Grey Dimension 188mm Insulator no Lightning current carrying capacity H/100 kA Material Brass Material of the contact rail Brass Material of the terminal Steel Quantity of cable connections up to 25 mm², rigid 7 Quantity of flat conductor connections up to 30 mm 1 Quantity of round conductor connections 8-10 mm 1 Quantity of round conductor connections, total 1 Surface of the contact rail Nickel-plated Surface of the terminal Electrogalvanised Type Fixed structure Version for With cover hood Dimensions

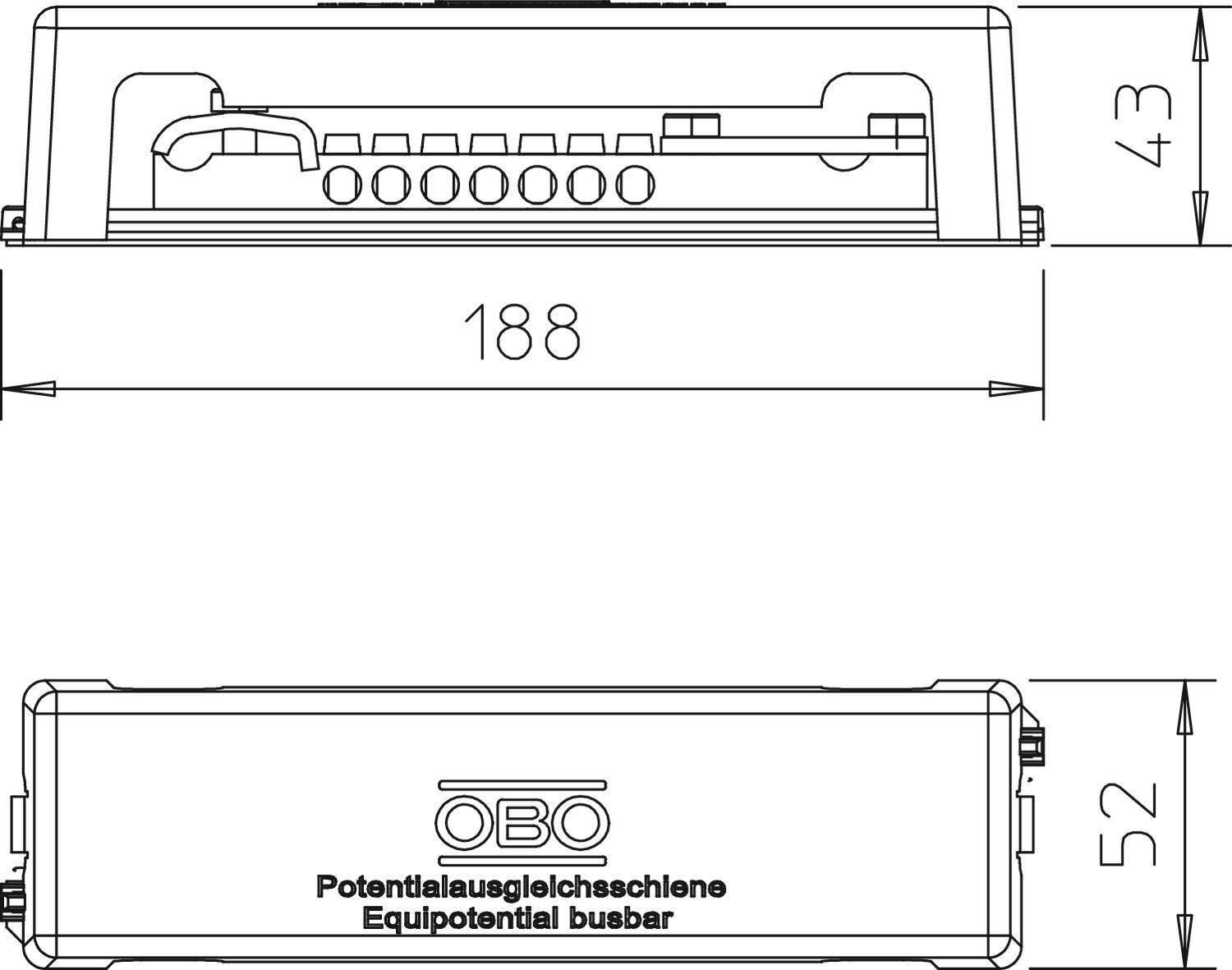

Height 43 mm Length 188 mm Width 52 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,8422 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,8422 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 1809 M / 5015081 , 0.23MB , pdfEU declaration of conformity 1809 M / 5015081 , 0.10MB , pdfREACH Declaration of conformity 1809 M / 5015081 , 0.13MB , pdfRoHS Declaration of conformity 1809 M / 5015081 , 0.13MB , pdf
