Fastening clip 604, light duty
Item no. 1003089 | EAN 4012195001096
- Product description
-

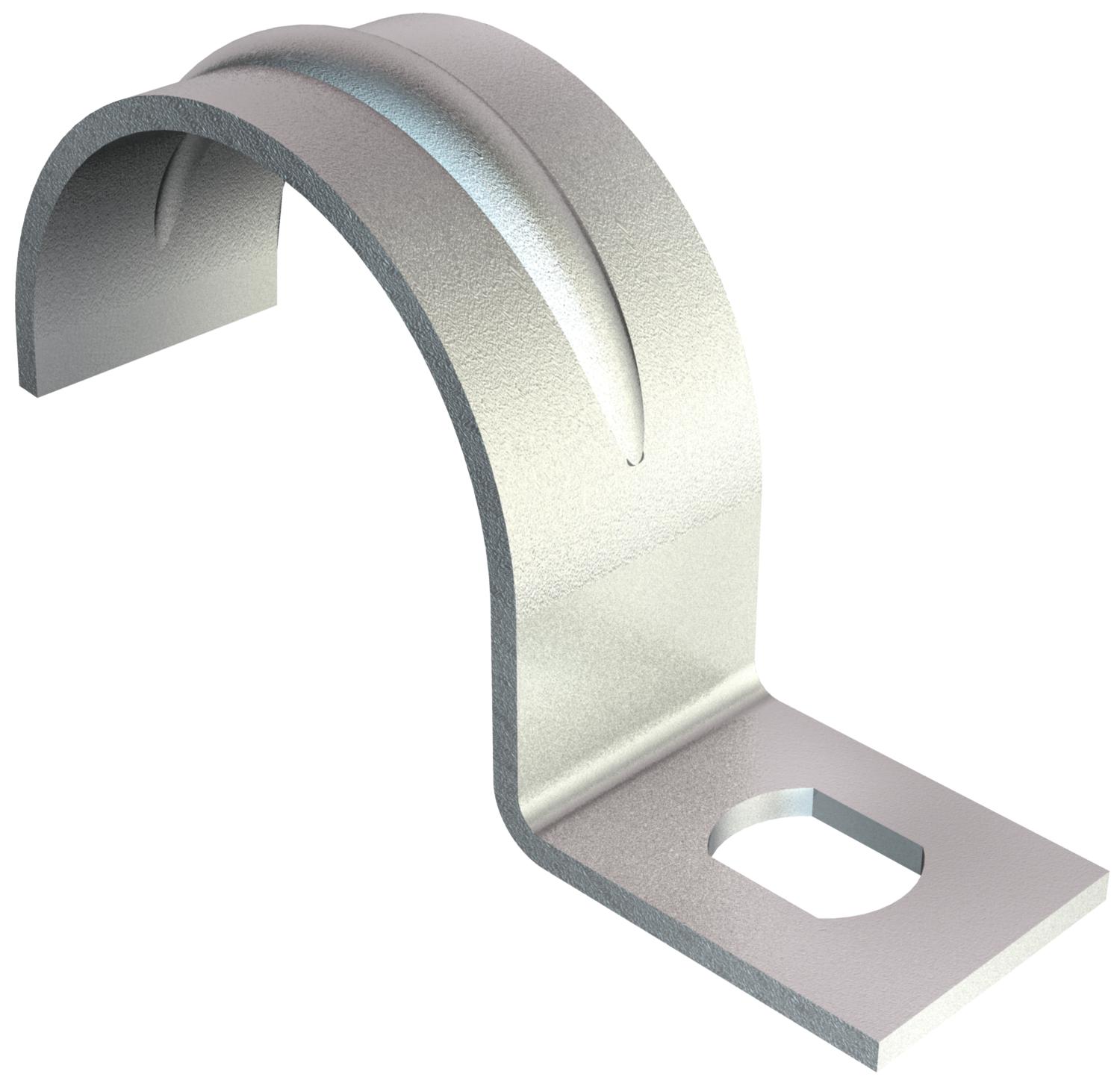

Product descriptionSingle-lobe fastening clip for cables and pipes.
* Sizes 3 and 4 are not suitable for nail device
* Sizes 3 to 21 are not suitable for bolt-firing tool
-
- Technical data
-
Technical data
Dimension 8mm Distance to the wall no Fastening type Screw hole For diameter 8 Halogen-free yes Hole size 4,5 x 6 Material Steel Material thickness 0,7 mm Nominal diameter 8 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Electrogalvanised UV-resistant yes Version for Single-lobe Dimensions

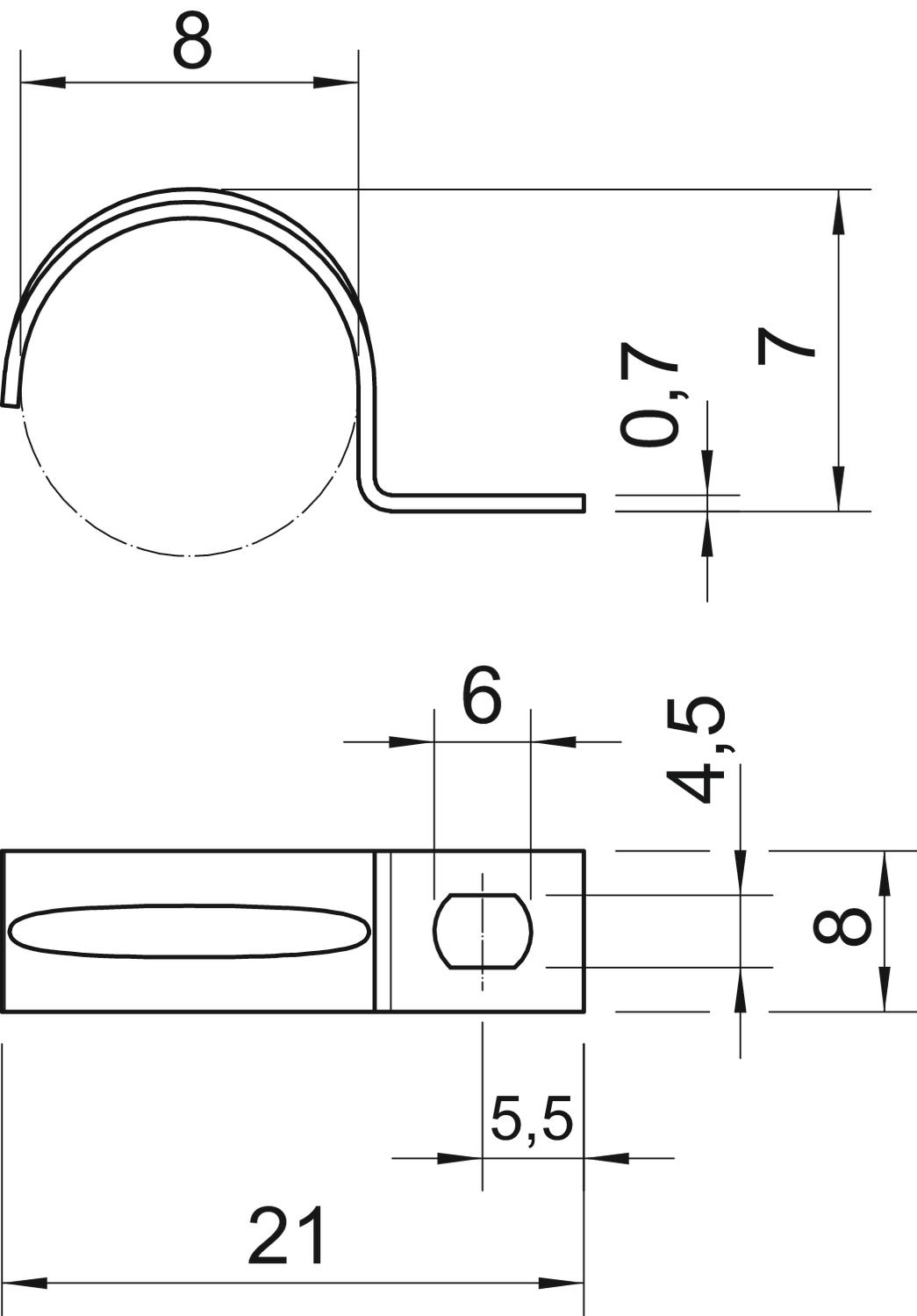

Dimension A 5,5 mm Dimension b 8 mm Dimension d 4,5 mm Dimension D 8 mm Dimension e 6 mm Dimension H 7 mm Dimension L 21 mm Dimension t 0,7 mm Height 7 mm Length 21 mm Width 8 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0043 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0043 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
All types
- Downloads
-
Data sheet 604 8 G / 1003089 , 0.21MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 604 8 G / 1003089 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity 604 8 G / 1003089 , 0.09MB , pdfREACH Declaration of conformity 604 8 G / 1003089 , 0.12MB , pdfRoHS Declaration of conformity 604 8 G / 1003089 , 0.13MB , pdf
