Grip 40
Item no. 2205416 | EAN 4012195651666
- Product description
-

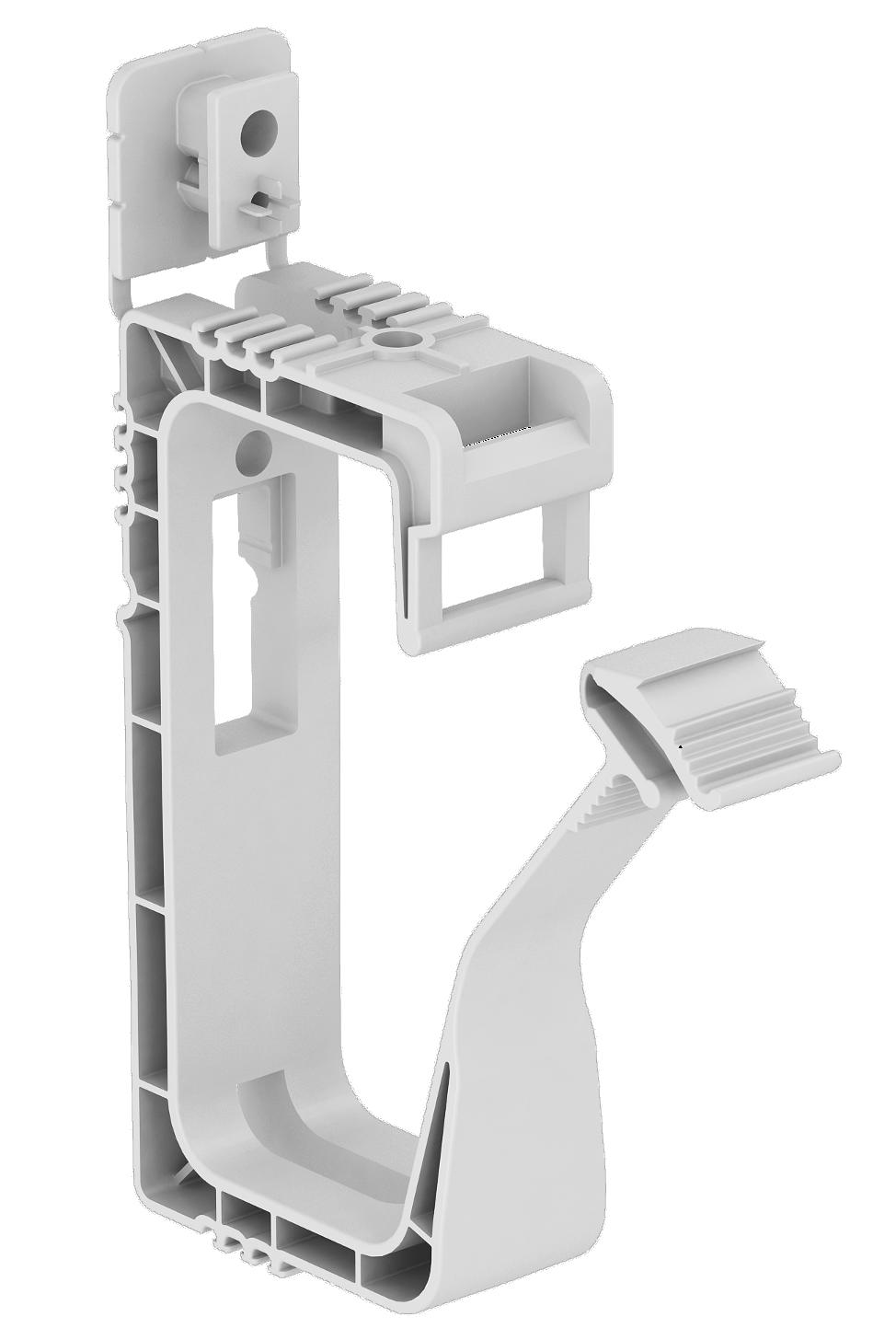

Product descriptionCollection clamp with pointed fastening element, for mounting up to 40 cables NYM 3 x 1.5 mm2 on walls or ceilings. Fastening with impact anchor or push-fit anchor. Also suitable for the fastening with gas- and battery-operated setting tools of the brands Bosch, Fischer and Spit (inner nose diameter Ø 7 mm). Fastening hole: Ø 6 mm. Recommended fastening distance of 250–400 cm when fully assigned, depending on the respective national specifications/norms.
With multifunctional fastening element. Capacity: 2031/ 40 max. 40 cables NYM 3 x 1.5 mm²
-
- Technical data
-
Technical data
Breaking load 0,32 kN CO2 Footprint (GWP) Cradle-to-Gate 0,1352 kg CO2e / 1 Piece Colour Light grey; RAL 7035 Dimension 40x NYM3x1,5 Flame-resistant version no Halogen-free yes Maintain electrical functions no Material Polypropylene No. of conductors NYM 3 x 1.5 40 With anchor no - All types
- Downloads
-
Data sheet 2031 40 / 2205416 , 0.24MB , pdfEU declaration of conformity 2031 40 / 2205416 , 0.10MB , pdfUK Declaration of Conformity 2031 40 / 2205416 , 0.09MB , pdfREACH Declaration of conformity 2031 40 / 2205416 , 0.13MB , pdfRoHS Declaration of conformity 2031 40 / 2205416 , 0.13MB , pdfLabel approval UL certificate, Grip grouped support , 0.33MB , pdfMounting instructions Grip M grouped support 2031 , 0.99MB , pdf
