Note: This article is discontinued.

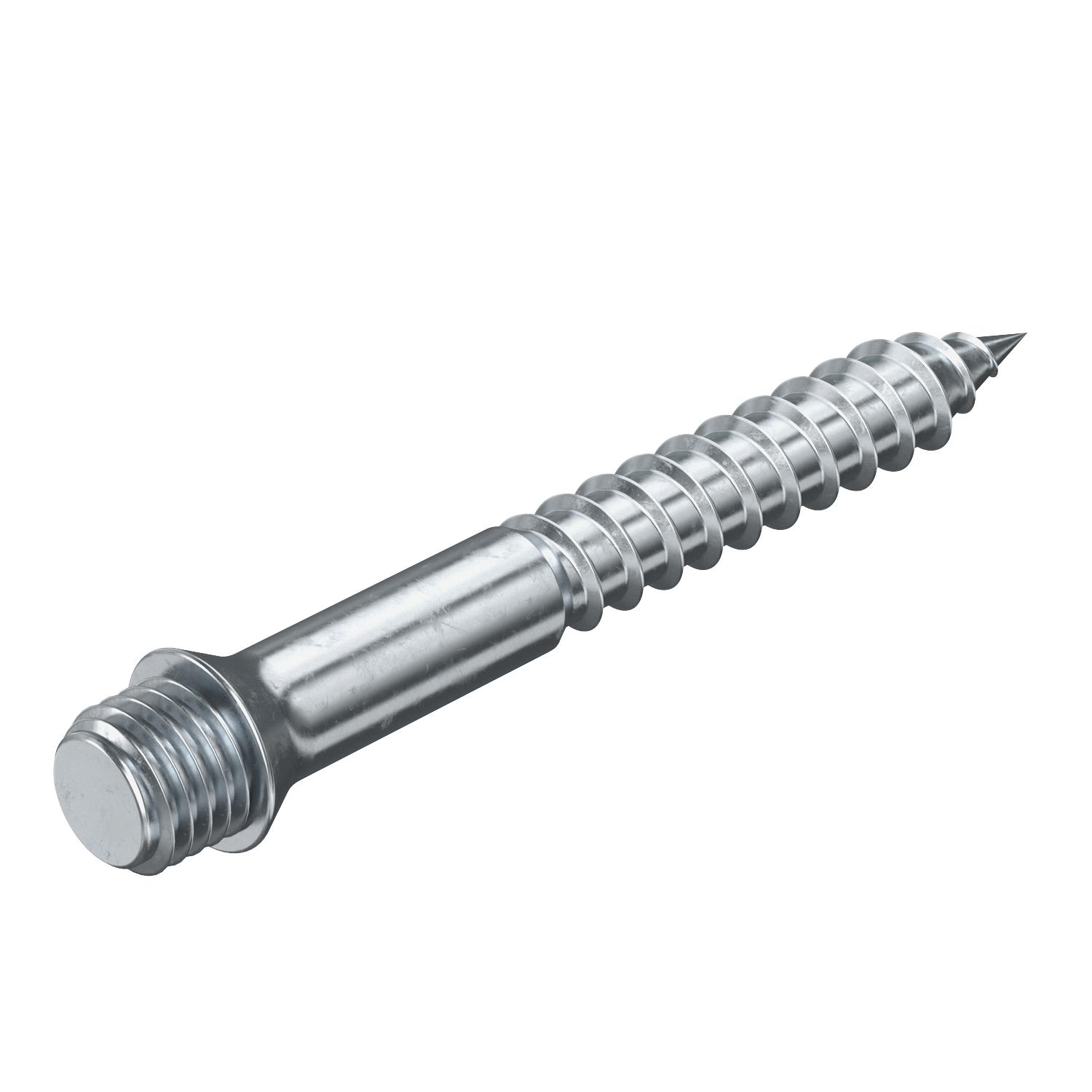

HST M6 hanger screw
Item no. 3498150 | EAN 4012197288044
- Product description
-
Product descriptionWood screw for fireproof fastening of cable systems for the maintenance of electrical function according to DIN 4102 Part 12 on supporting wooden components. The hanger bolt allows the installation of the ASG 732 clip on wooden components.
- Technical data
-
Technical data
Colour zinc Dimension 95x90x70 Hardened yes Head diameter 6 mm Head shape external thread Material Steel Screw system Miscellaneous Screw system Miscellaneous Shank diameter 6 mm Surface Electrogalvanised Thread length 32 mm Thread metric 6 Thread type Metric Two-compartment no Dimensions

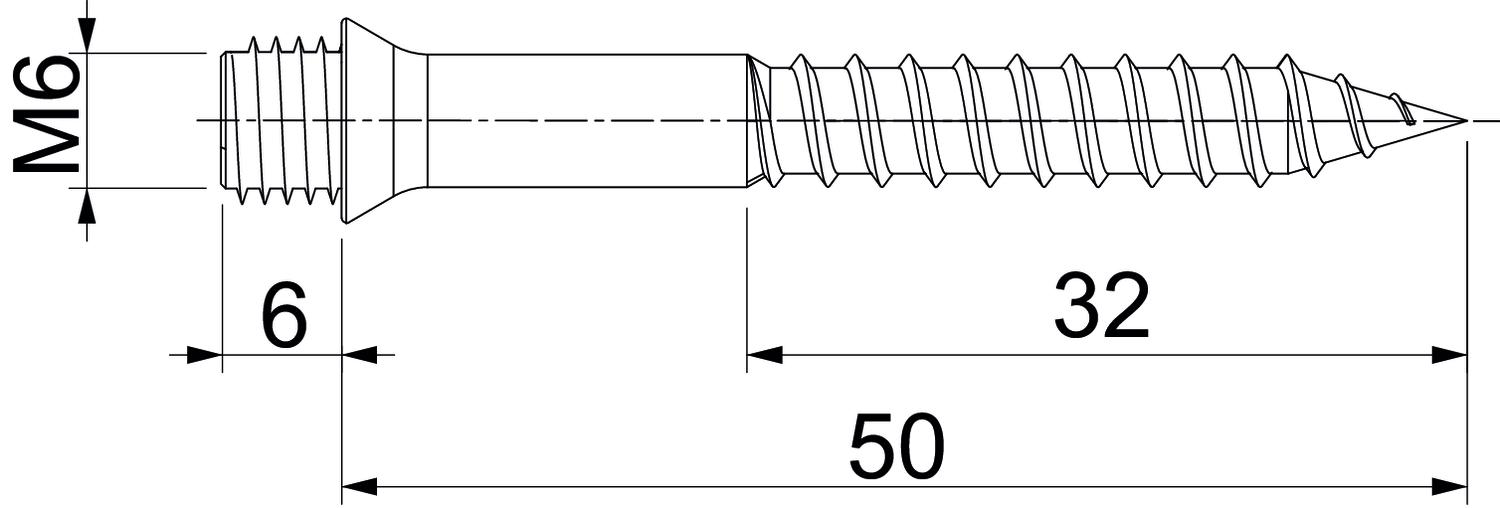

Dimension D 6 mm Dimension G M6 mm Dimension L 50 mm Dimension L1 32 mm Length 50 mm - All types
- Downloads
-
Data sheet HST 6x50 GA M6 / 3498150 , 0.18MB , pdfREACH Declaration of conformity HST 6x50 GA M6 / 3498150 , 0.12MB , pdfRoHS Declaration of conformity HST 6x50 GA M6 / 3498150 , 0.12MB , pdfNo invitation to tender text is available for this product.
