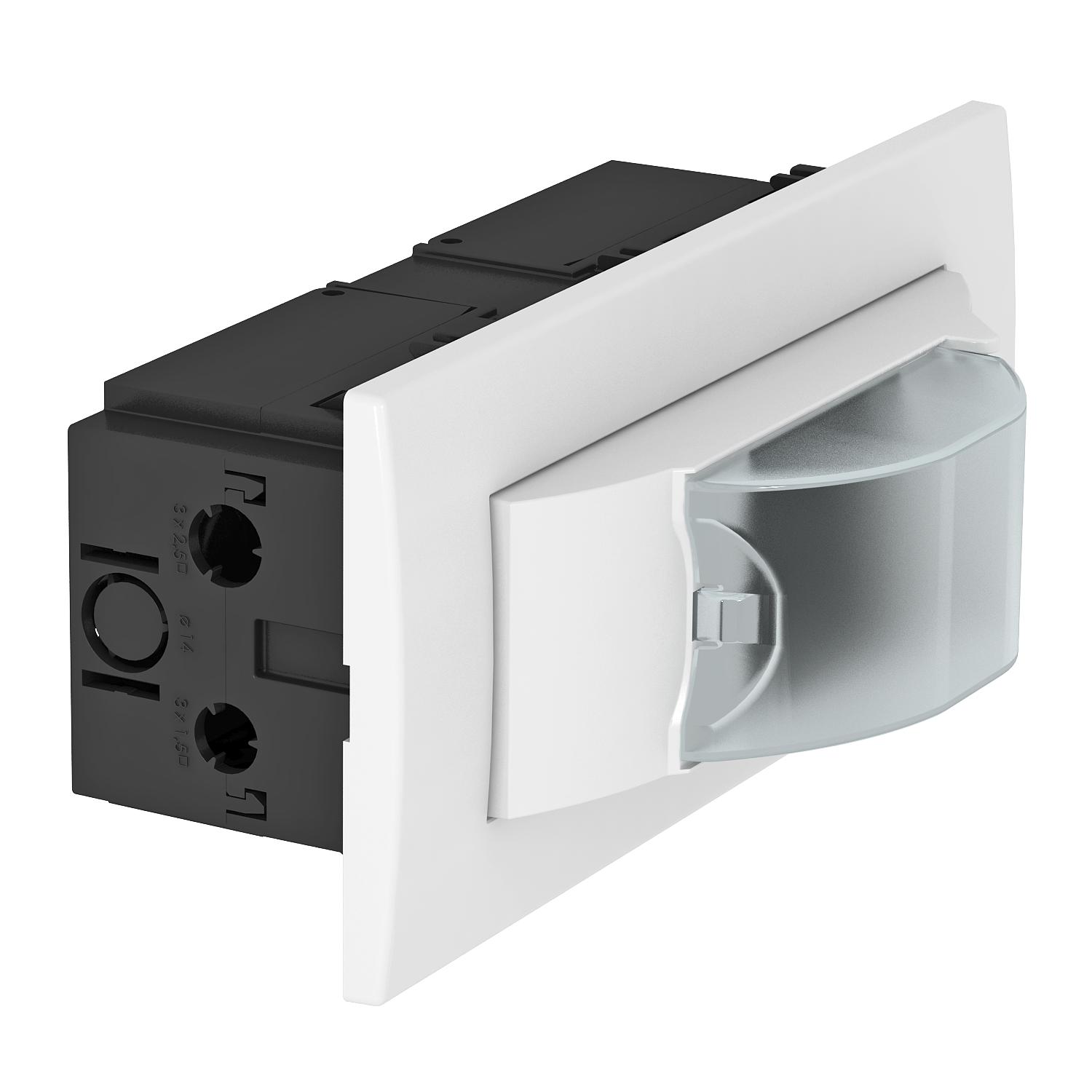

IKR6 installation unit, for 2 part units
Item no. 6119319 | EAN 4012195889373
- Product description
-
Product descriptionInstallation unit to accept protective units such as miniature circuit breakers of FI protection switches up to 2 PUs, suitable for installation in Rapid 80 device installation trunking systems and ISS service poles.
Installation unit, consisting of:
- Accessory mounting box, triple, type 71GD9-2
- Cover, incl. PVC support clamp for 2 PUs, colour: see table
- Cover frame AR45, triple, without labelling panel, colour: pure white
For installation in Rapid 80 device installation trunking and ISS service poles.
-
- Technical data
-
Technical data
Colour Pure white; RAL 9010 Dimension 84x185x95mm DIN rail yes Halogen-free no Material Polycarbonate Mounting type Device installation duct Number of rows 1 Number of units 2 Suitable for duct depth 80 Surface version Matt With mounting plate yes Dimensions

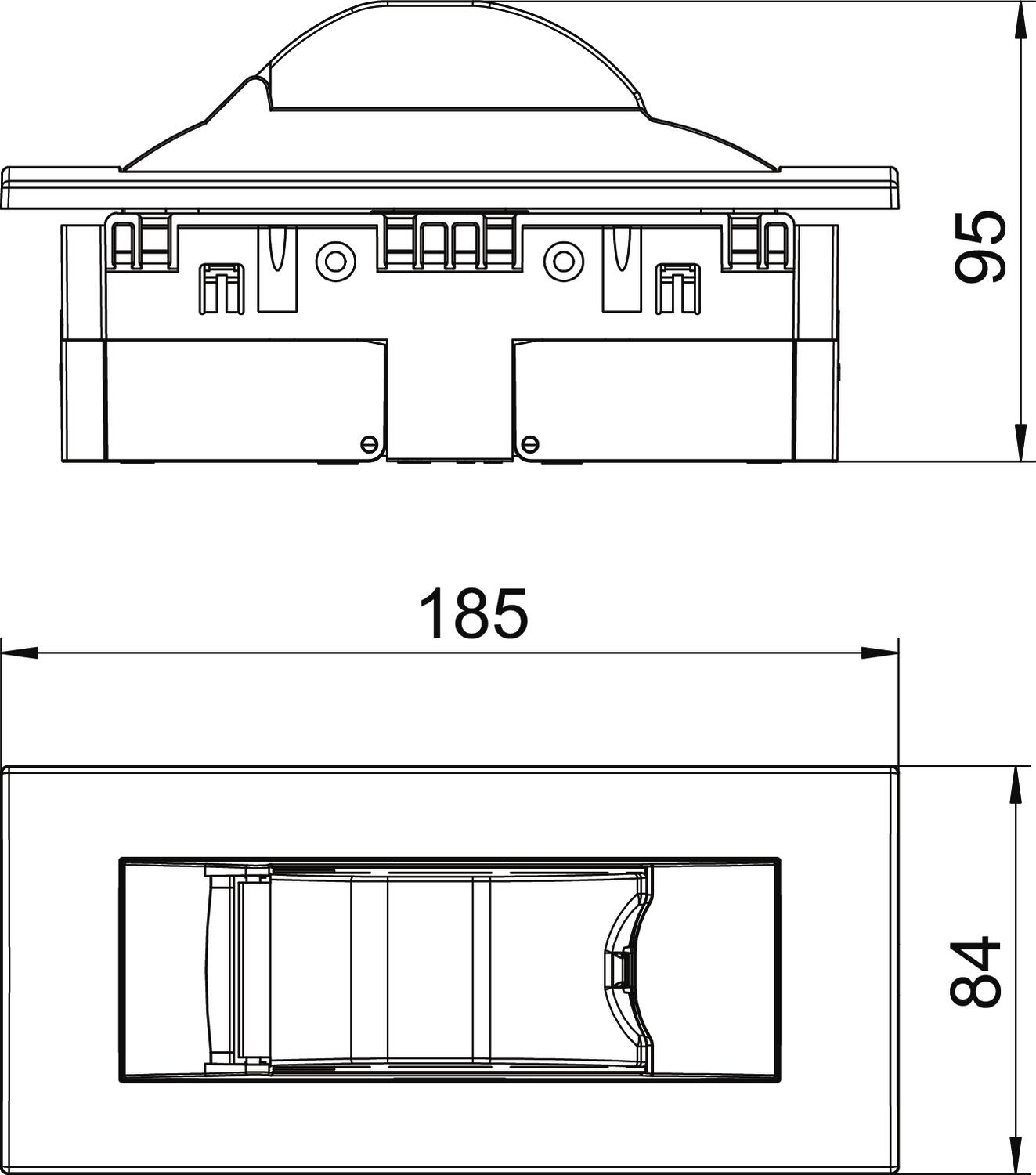

Height 95 mm Length 185 mm Width 84 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,8045 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,8045 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet IKR-6 RW / 6119319 , 0.18MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity IKR-6 RW / 6119319 , 0.12MB , pdfRoHS Declaration of conformity IKR-6 RW / 6119319 , 0.13MB , pdfMounting instructions Sicherheitshinweise , 0.43MB , pdfNo invitation to tender text is available for this product.
