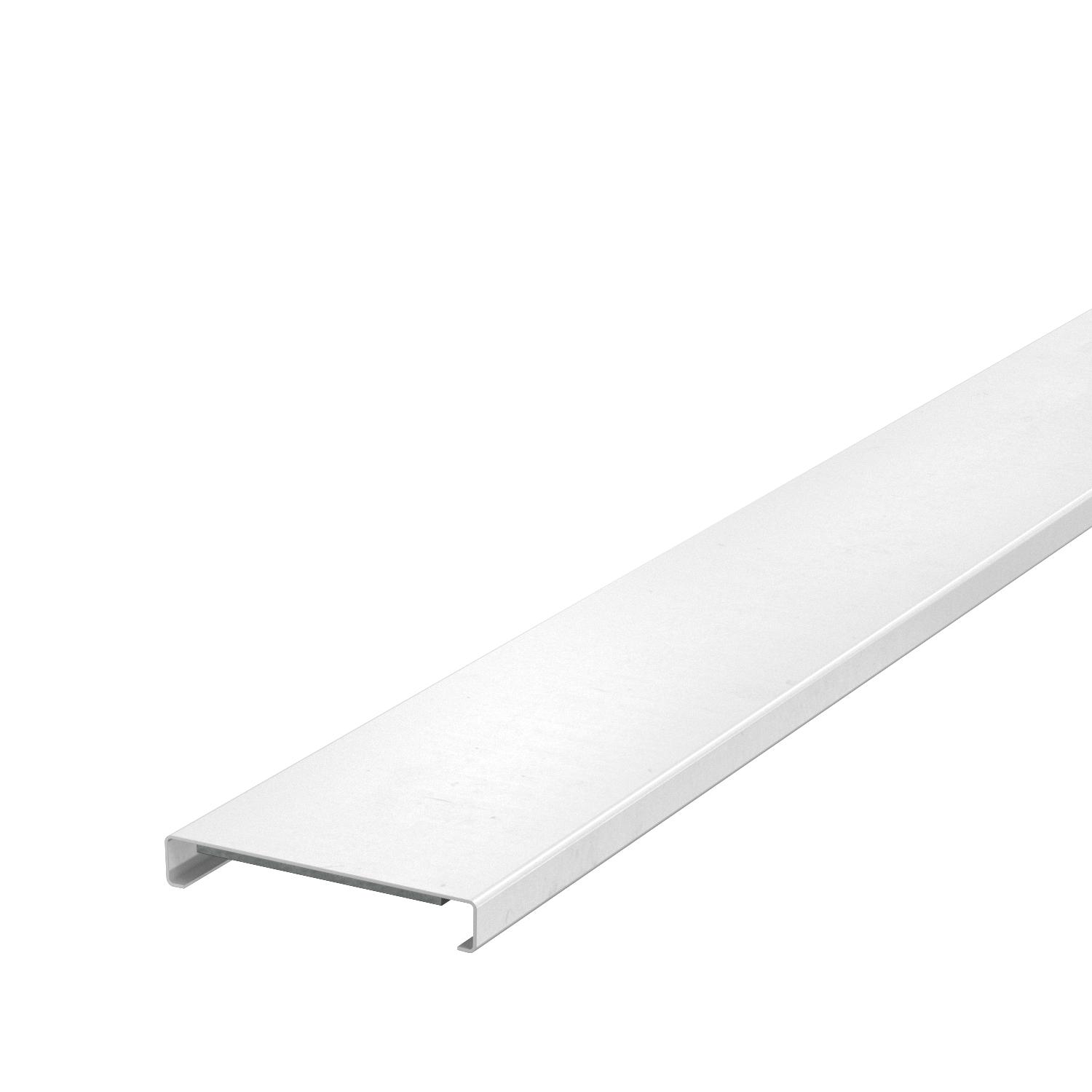

Installation duct cover, duct width 100 mm, pure white
Item no. 7218022 | EAN 4012197351328
- Product description
-
Product descriptionCover with factory-made beading for toolless mounting and continuous equipotential bonding. Additional locking brackets can be used for shortened covers. Take the details from the mounting instructions into account.
-
- Technical data
-
Technical data
Accessories yes Classification EI − installation duct 90 Colour Pure white; RAL 9010 Dimension 12x77x2000 Material Steel Spare part no Surface Powder-coated Type of accessory Miscellaneous Dimensions

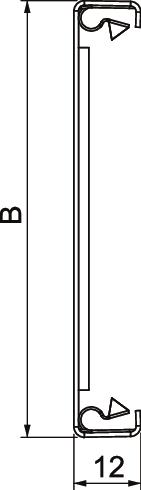

Dimension B 76 mm Length 2000 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,7446 kg CO2e / 1 Meter CO₂ Footprint (GWP) 1,7446 kg CO₂e Declared Unit (LCA) Metres Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet PLM LI 100 RW / 7218022 , 0.13MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfEU declaration of conformity PLM LI 100 RW / 7218022 , 0.11MB , pdfDeclaration of performance PLM LI 100 RW / 7218022 , 0.78MB , pdfLabel approval VDE marks approval PYROLINE Rapid PLM , 0.27MB , pdfMounting instructions PYROLINE® Rapid installation duct system , 3.70MB , pdfNo invitation to tender text is available for this product.
