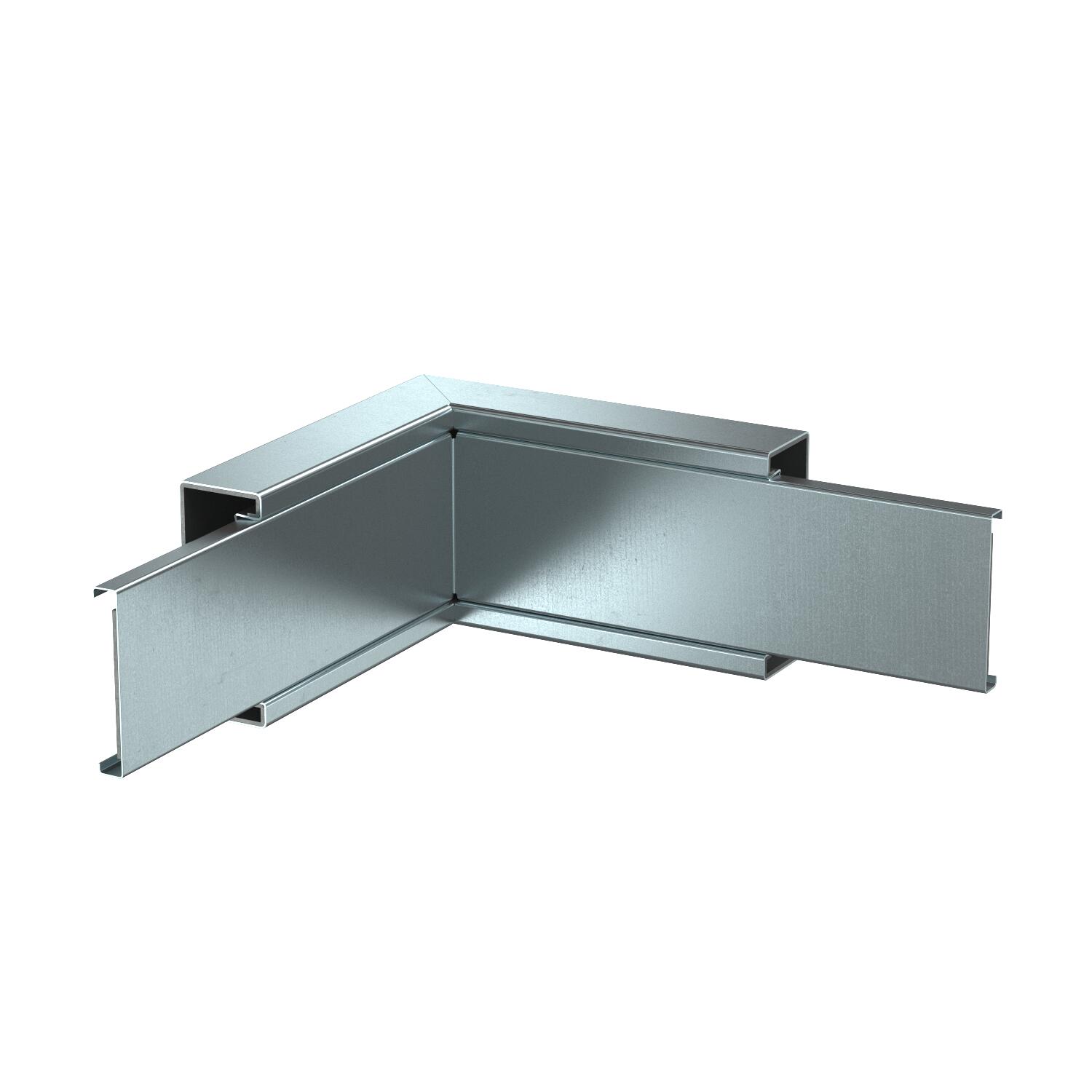

Internal corner, duct height 40 mm, FS
Item no. 7218050 | EAN 4012197332075
- Product description
-
Product descriptionInternal corner with intumescent fire protection mesh for PYROLINE® Rapid PLM installation duct. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
-
- Technical data
-
Technical data
Angle of the bend 90 ° Colour zinc Cover fastening Miscellaneous Dimension 290x100x290 Jacketing Steel Material Steel Number of flammable sides 4 Partitions possible no Surface Strip galvanised Usable cross-section 1780 mm² With perforation yes Dimensions

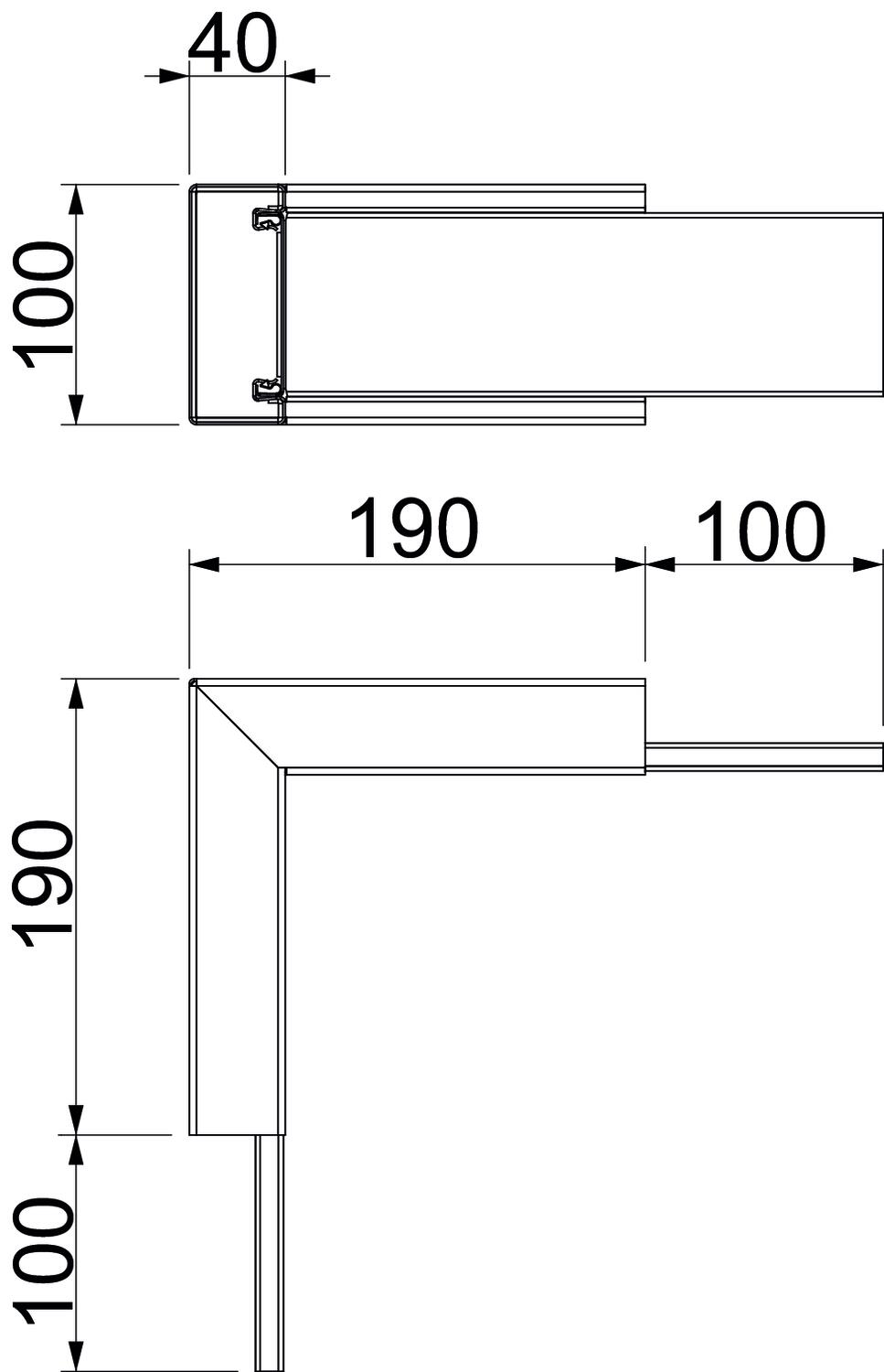

Dimension A 190 mm Dimension B 100 mm Dimension H 40 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 4,3081 kg CO2e / 1 Piece CO₂ Footprint (GWP) 4,3081 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet PLM IC 0410 FS / 7218050 , 0.16MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfEU declaration of conformity PLM IC 0410 FS / 7218050 , 0.11MB , pdfDeclaration of performance PLM IC 0410 FS / 7218050 , 0.78MB , pdfREACH Declaration of conformity PLM IC 0410 FS / 7218050 , 0.13MB , pdfRoHS Declaration of conformity PLM IC 0410 FS / 7218050 , 0.13MB , pdfLabel approval VDE marks approval PYROLINE Rapid PLM , 0.27MB , pdfApproval certificate Fire protection ducts PYROLINE® Rapid PLM , 2.15MB , pdfMounting instructions PYROLINE® Rapid installation duct system , 3.70MB , pdfNo invitation to tender text is available for this product.
