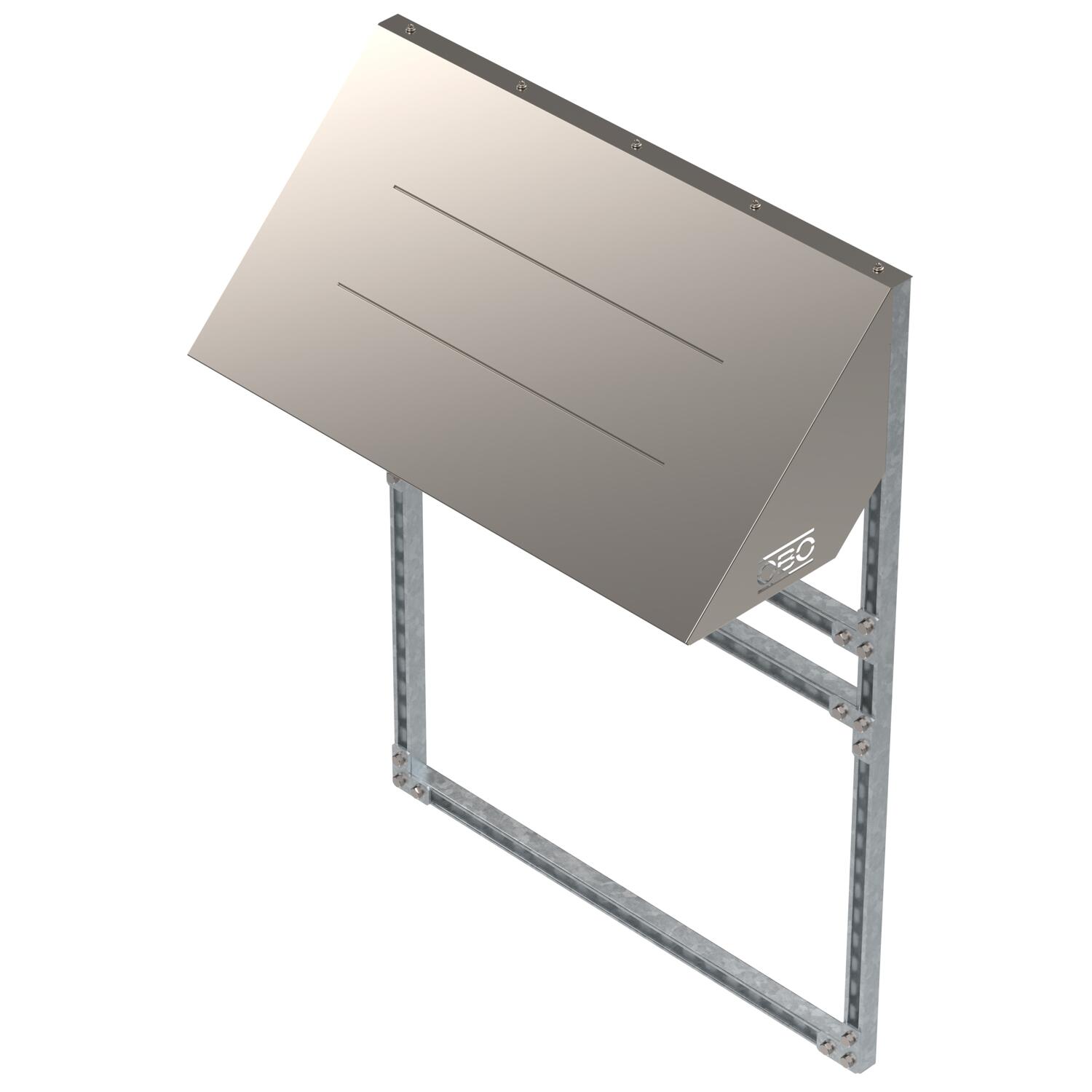

Inverter frame for wall mounting.
morepic-1 morepic-2

Inverter frame for wall mounting.

Item no. 5904005 | EAN 4012197480776

Product description
Product description
Inverter frame for the protected installation of several inverters for PV systems on flat roofs. Mounting on the wall.
Technical data

Technical data

Accessories no
Dimension 468x1082x1501
Material Steel
ROHS-conformant yes
Spare part no
Suitable for a type of renewable energy generation Photovoltaics
Surface Hot-dip galvanised/stainless steel, rustproof 1.4301
Type of accessory Accessory/spare parts für renewable energy generation Other

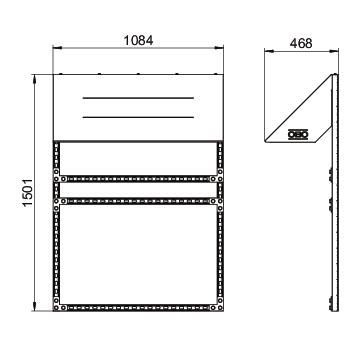

Dimensions

Height 1501 mm
Length 468 mm
Width 1082 mm
All types

All types

Types Item no. Quantity SSU
WRR W1000 5904005
1 piece
WRR W1500 5904007
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT BS-U1-M-12 FT 1186502
100 piece
Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT BS-U1-M-16 FT 1186509
100 piece
Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT BS-U1-M-22 FT 1186516
100 piece
Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT BS-U1-M-28 FT 1186522
100 piece
Earthing terminal for PV mounting systems Earthing terminal for PV mounting systems 249 PV10 6-50V2A 5051520
8 piece
Downloads

Download

Download

No invitation to tender text is available for this product.
