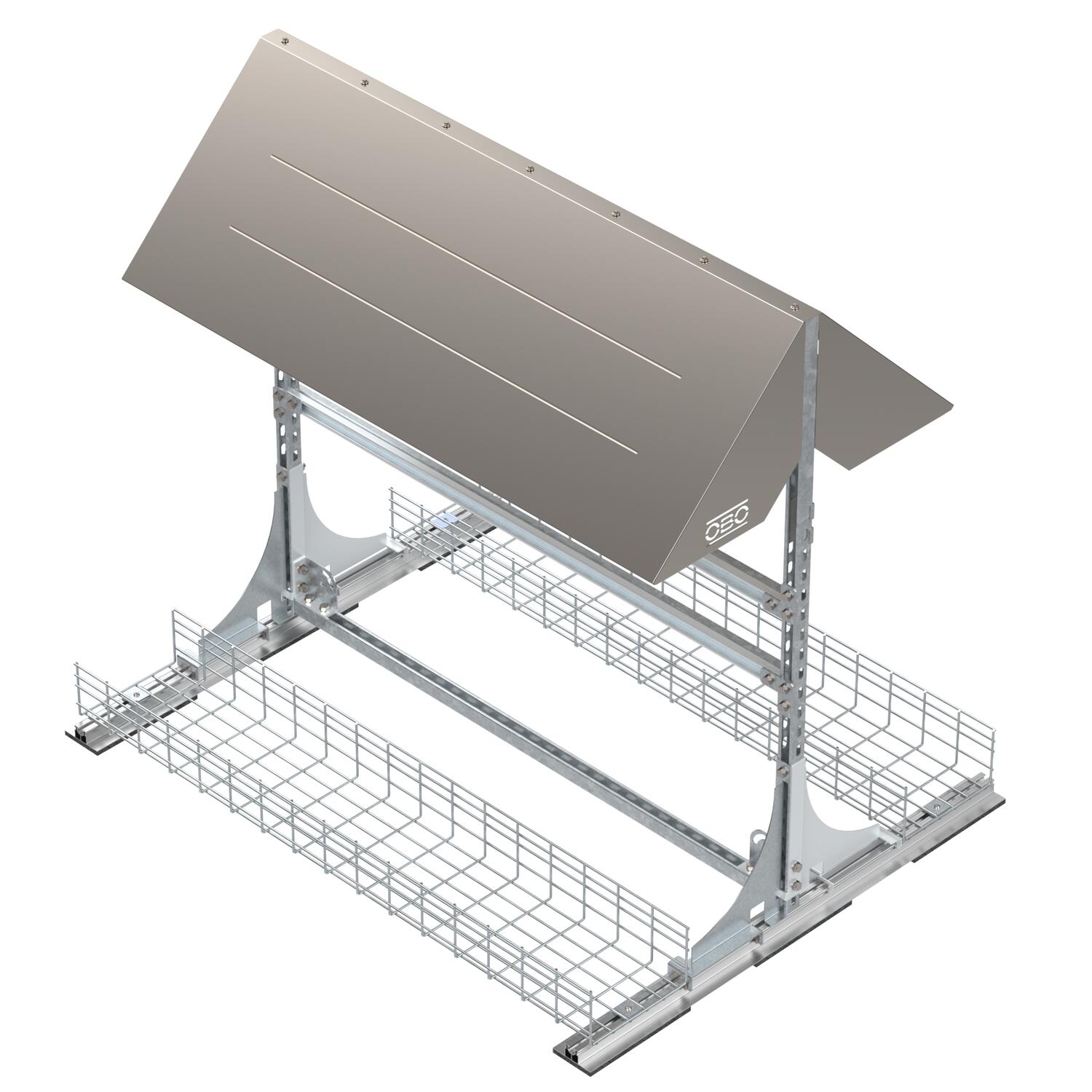

Inverter frame, free-standing, double-sided.

Inverter frame, free-standing, double-sided.

Name: Inverter frame, free-standing, double-sided.
Brand: OBO Bettermann
SKU: 5904029

Item no. 5904029 | EAN 4012197480936

Product description

Product description

Inverter frame for the protected installation of several inverters for PV systems on flat roofs. Free-standing. Loading on both sides possible. 2 mesh cable trays included for ballasting and for the routing of cables.

Technical data

Technical data

Accessories	no
Dimension	1300x1651x1554
Material	Steel
ROHS-conformant	yes

Spare part	no
Suitable for a type of renewable energy generation	Photovoltaics
Surface	Hot-dip galvanised/stainless steel, rustproof 1.4301
Type of accessory Accessory/spare parts für renewable energy generation	Other

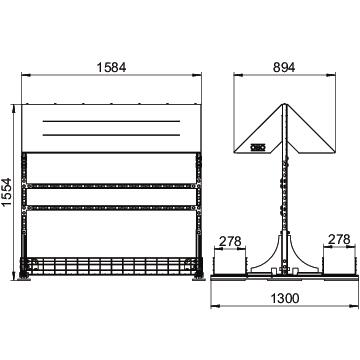

Dimensions

Height	1554 mm
Length	1300 mm

Width	1651 mm

All types

All types

Types		Item no.	Quantity	SSU
WRR D1000		5904026	piece	1 piece
WRR D1500		5904029	piece	1 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT	BS-U1-M-12 FT	1186502	piece	100 piece
Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT	BS-U1-M-16 FT	1186509	piece	100 piece
Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT	BS-U1-M-22 FT	1186516	piece	100 piece
Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT	BS-U1-M-28 FT	1186522	piece	100 piece
Earthing terminal for PV mounting systems	249 PV10 6-50V2A	5051520	piece	8 piece
