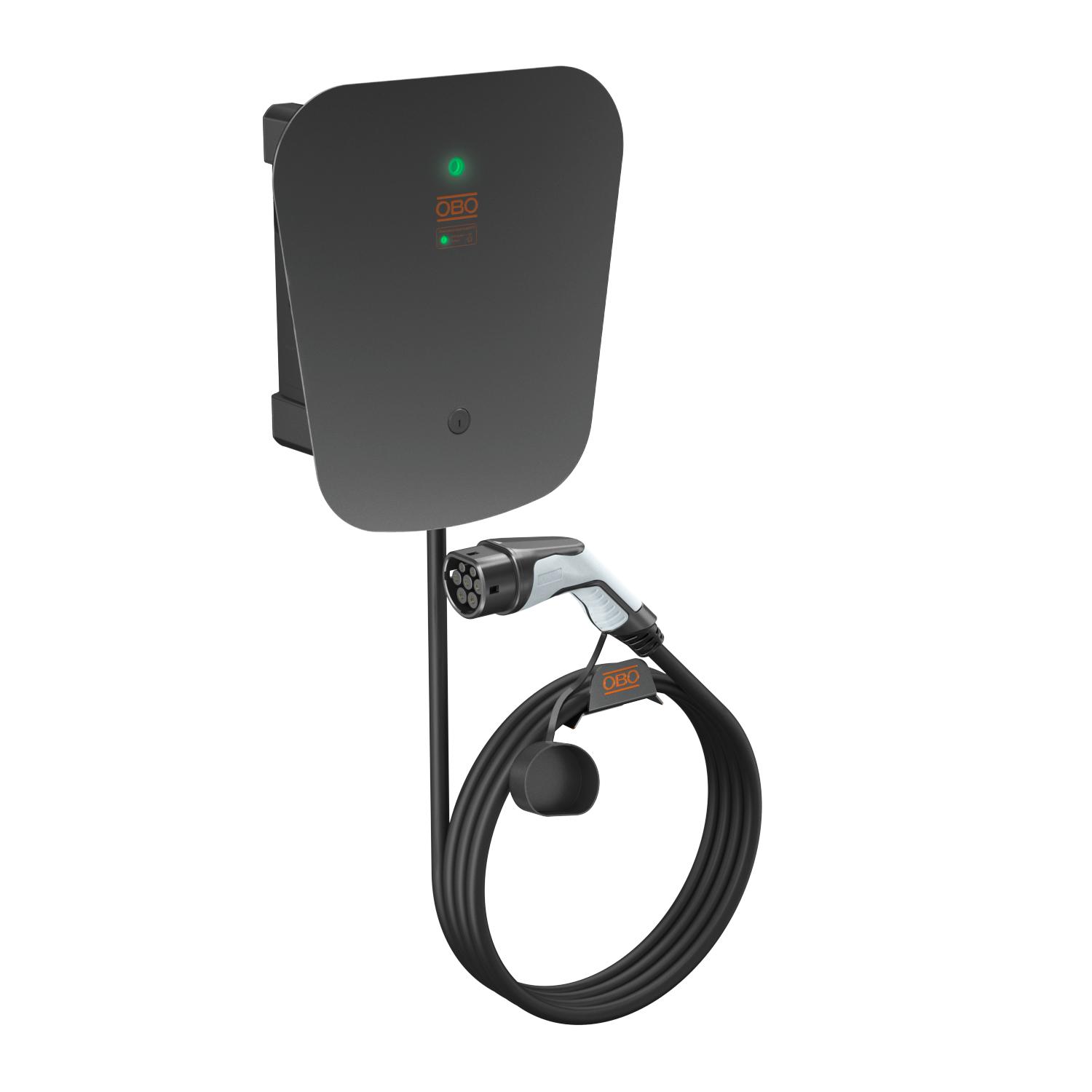

Ion Charging station Key protect
Item no. 6570026 | EAN 4012197274863
- Product description
-
Product descriptionThe Ion charging station for the charging of electrical vehicles in private areas as a singular charging point. Suitable for permanent mounting on the wall in interior or protected exterior areas.
• Charging according to Mode 3 in accordance with IEC 61851-1
• Single, double and three-phase charging
• Suitable for TN and TT networks
• Integrated temperature monitoring
• DC error current monitoring
• Status information via LED display
• Prewired, ready for connection
• Including 5 m charging cable with type 2 charging connector and cable bracket
• Supply from above or below
• Stainless steel design elements
• Charging power can be limited to a fixed value, factory-set value 11 kW
• Integrated surge voltage protection for power and data cables
• Modbus RTU protocol via RS-485 interface for bidirectional communication
• Can be controlled via Modbus RTU for dynamic load management, dynamic PV-optimised charging and digital authentication (via web/app) with external control (ASKI, Smart1Solutions, Loxone, Comexio)
• Potential-free enable contact, e.g. for PV systems, ripple control receiver
• With key switch for authorisation
-
- Technical data
-
Technical data
Colour Black Depth 136 mm Dimension 370x340x136 Material Polycarbonate Max. Output per charging point 22 kW Nominal connection output 22 kW Number of charging points 1 Number of type 2 charging connectors 1 Protection rating IP66 Protection rating IK code IK08 Surface Painted Surge protection yes Version for 3-phase With circuit breaker no With communication interface yes With domestic junction box (HAK) no With energy meter no With load management no Dimensions

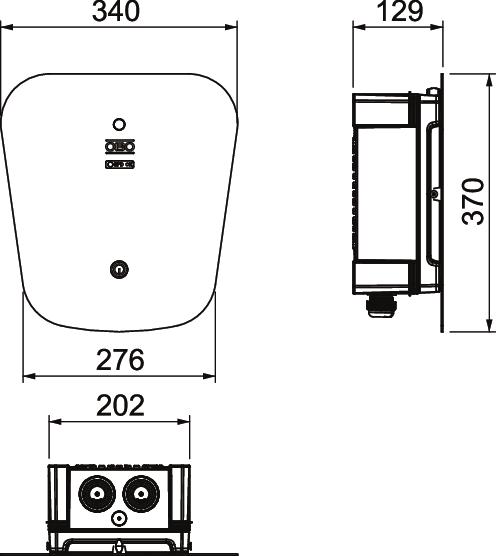

Height 370 mm Width 340 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 20,9328 kg CO2e / 1 Piece CO₂ Footprint (GWP) 20,9328 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
System accessories
Products Types Item no. Quantity SSU
Weather protection roof for Ion charging station Basic Protect/Key Protect
WB WPR SPD 6570107 1 piece - Downloads
-
Data sheet WB AC BL KS SPD / 6570026 , 0.24MB , pdfEU declaration of conformity WB AC BL KS SPD / 6570026 , 0.11MB , pdfREACH Declaration of conformity WB AC BL KS SPD / 6570026 , 0.13MB , pdfRoHS Declaration of conformity WB AC BL KS SPD / 6570026 , 0.13MB , pdfMounting instructions Ion charging station , 4.57MB , pdfOperating instructions Ion charging station , 2.35MB , pdfNo invitation to tender text is available for this product.
