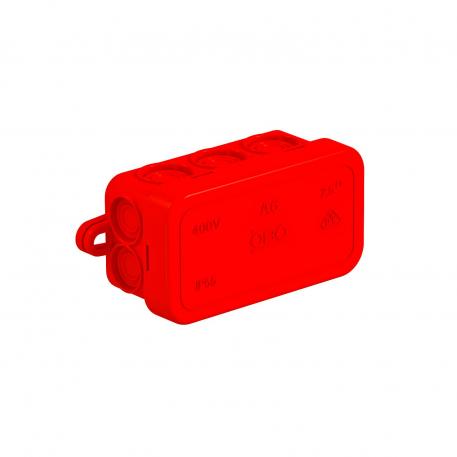

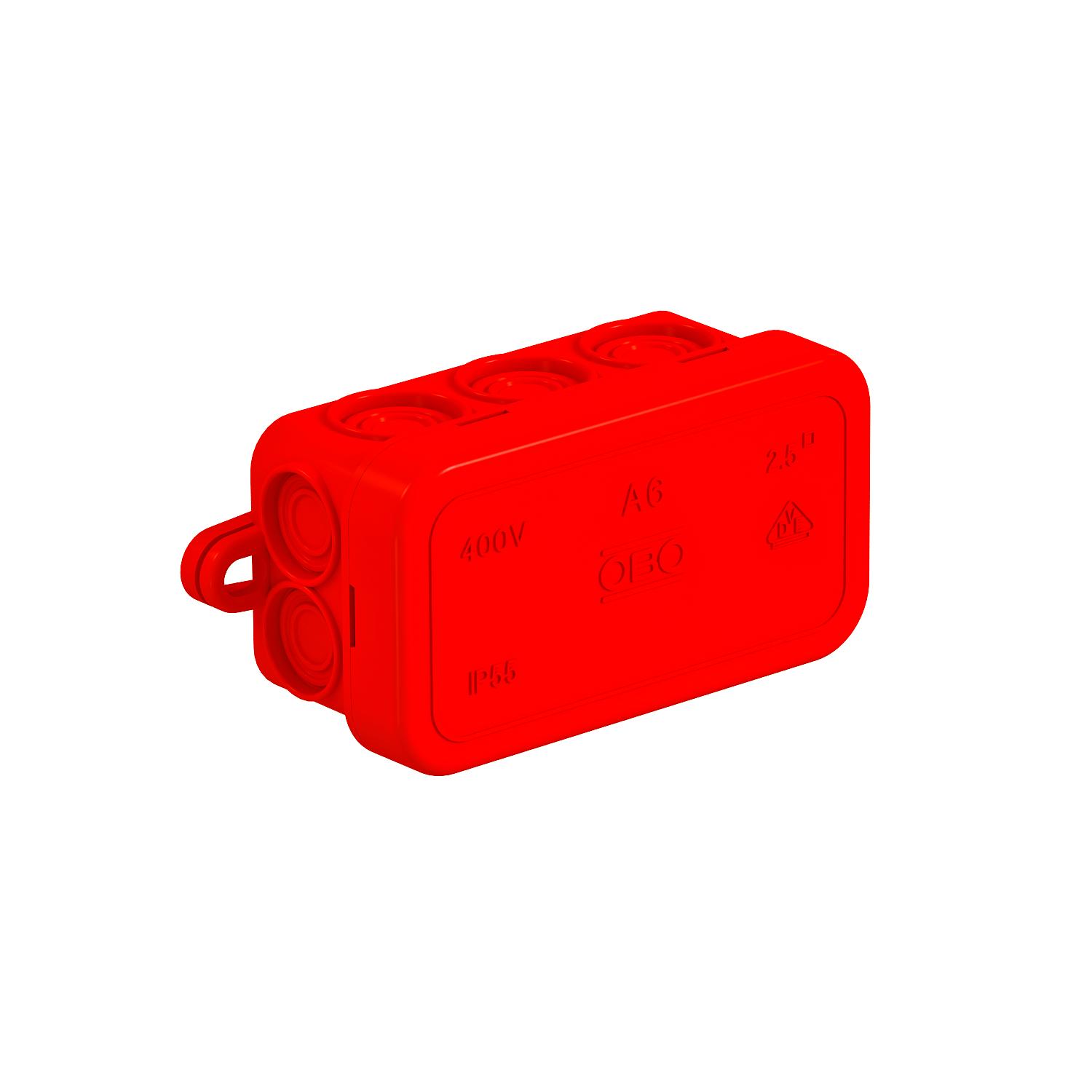

Junction box A 6
Item no. 2000003 | EAN 4012195917076
- Product description
-
Product descriptionProtection rating IP55, rated voltage 690 V, nominal cross-section 2.5 mm², 6 entries for cable diameter 5‒14 mm
4 entries for cable diameter 5–9 mm.
Clamshell.

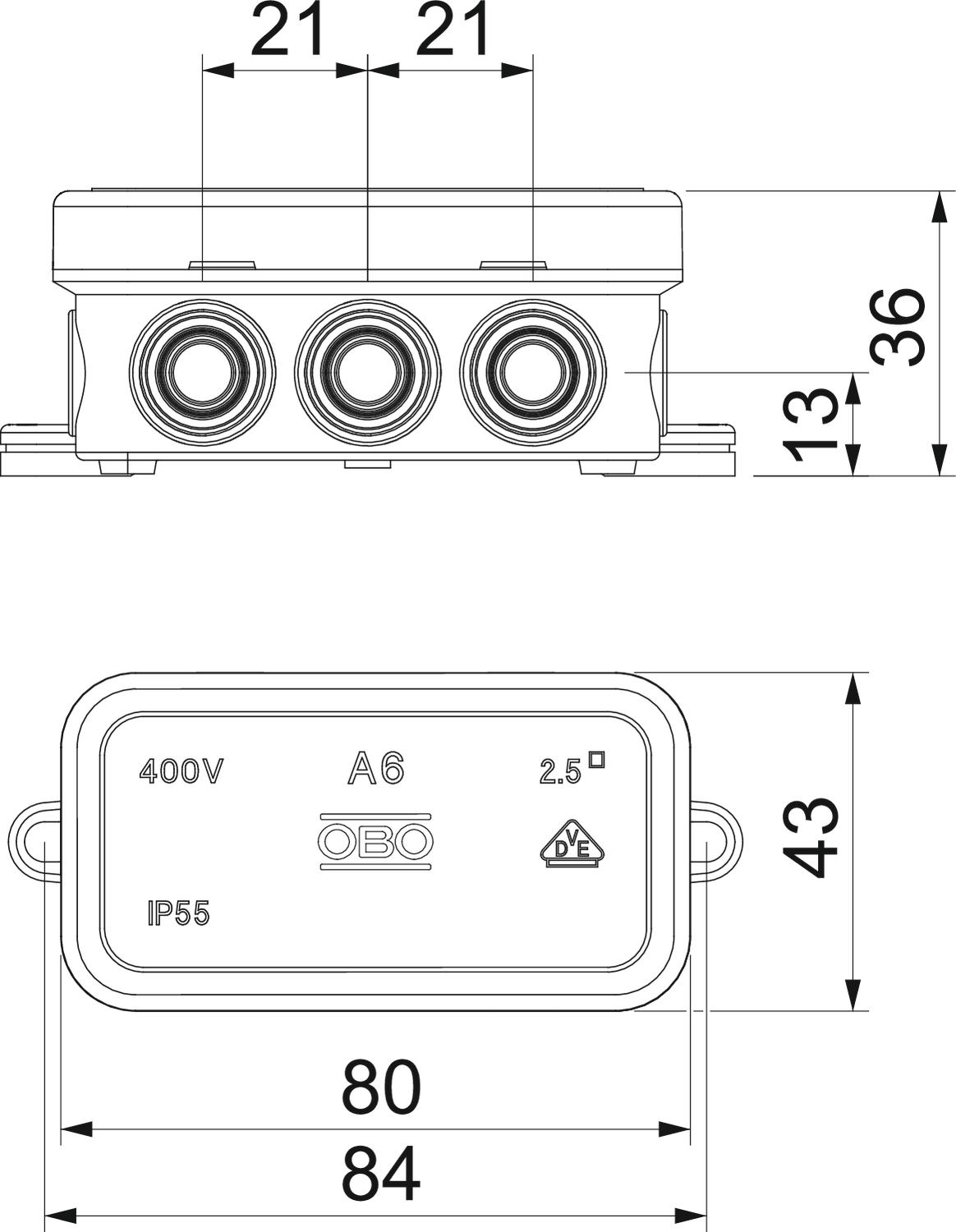

Dimensions: 80 x 43 x 36 mm
Clear internal dimensions: 69 x 32 x 30 mm
1 cut-out tool for every 10 boxes
-
- Technical data
-
Technical data
Colour Red Cover Not transparent Cover fastening Locking Dimension 80x43x34 Entry from rear no Equipment Without Expandable yes Explosion-tested version no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Junction box cover version Blanking lid Maintain electrical functions Without Material Polyethylene Max. Conductor cross-section 2,5 mm² Measured insulation voltage Vi 690 V Mounting type Wall/ceiling mounting No. of entries 10 Nominal cross-section, min. 2,5 mm² Nominal voltage 690 V Permitted temperature range, max. 45 °C Permitted temperature range, min. -5 °C Protection rating IP55 Sealable no Shape Square Transparent lid no Type of entry Cable Type of entry Cable Type of housing penetration Pre-marking Weatherproof no with lid yes With screening no Dimensions
Clear internal dimensions 69x32x30 mm Height 36 mm Length 80 mm Width 43 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0683 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0683 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet A 6 HF RO / 2000003 , 0.27MB , pdfEU declaration of conformity A 6 HF RO / 2000003 , 0.10MB , pdfUK Declaration of Conformity A 6 HF RO / 2000003 , 0.09MB , pdfREACH Declaration of conformity A 6 HF RO / 2000003 , 0.12MB , pdfRoHS Declaration of conformity A 6 HF RO / 2000003 , 0.12MB , pdfLabel approval VDE symbol approval, A 6, A 14, A 18 , 0.83MB , pdf
