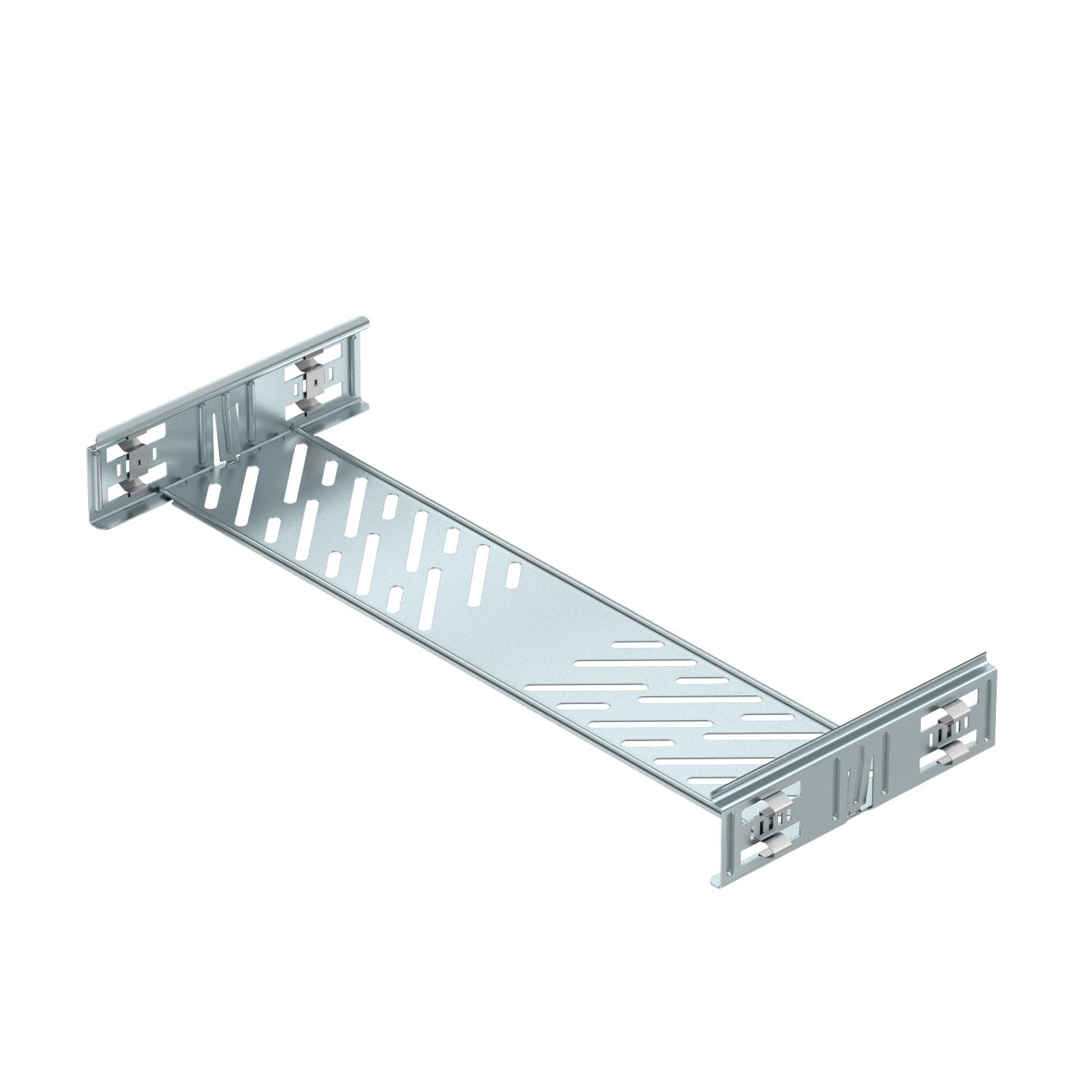

Magic straight connector set FS
Item no. 6068924 | EAN 4012195889557
- Product description
-
Product descriptionCable tray connector with quick fastening for the screwless connection of perforated cable trays with a side height of 60 mm.
The optimised design means that the connector can be used to create radii and as a length compensation piece for large temperature deviations.
-
- Technical data
-
Technical data

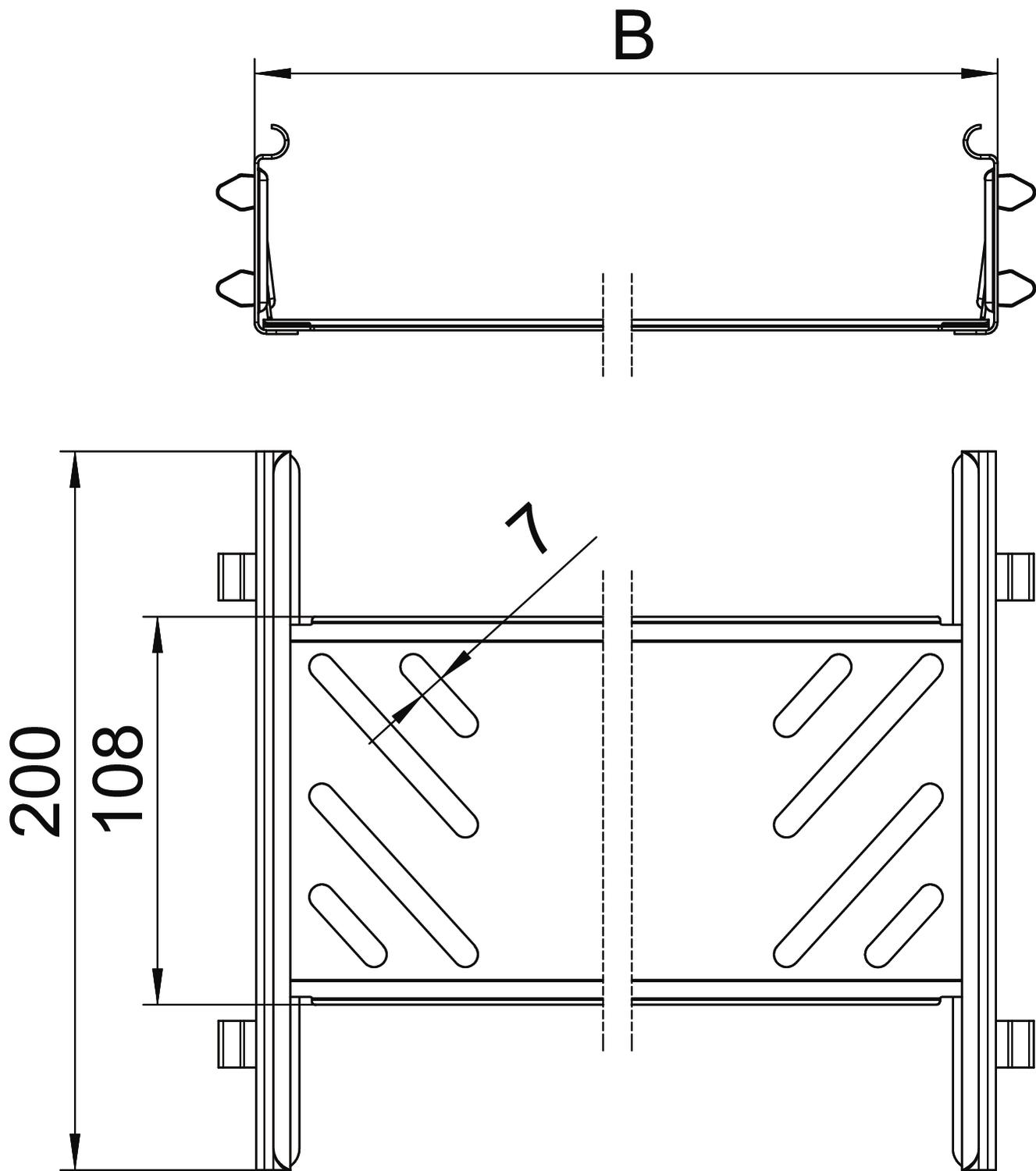

Adjustable connector, horizontal no Articulated connector, vertical no CO2 Footprint (GWP) Cradle-to-Gate 2,3367 kg CO2e / 1 Piece Colour zinc Connection type Screwless connector Dimension 60x500 Dimension 60x500x200 Dimension B 500 mm Height 60 mm Height 2 in Length 200 mm Maintain electrical functions no Material Steel Plate thickness 1 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 60 mm Suitable for mesh cable tray no Surface Strip galvanized Version for Straight connector Width 500 mm Width 20 in - All types
- Downloads
-
Data sheet KTSMV 650 FS / 6068924 , 0.22MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity KTSMV 650 FS / 6068924 , 0.10MB , pdfUK Declaration of Conformity KTSMV 650 FS / 6068924 , 0.09MB , pdfREACH Declaration of conformity KTSMV 650 FS / 6068924 , 0.12MB , pdfRoHS Declaration of conformity KTSMV 650 FS / 6068924 , 0.12MB , pdfSelection aid Selection aid for cable trays, Magic , 0.23MB , pdfMounting instructions Latchable Magic cable tray systems , 12.24MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
