Mesh cable tray GR-Magic® 105 FT

Item no. / Types

Length	3000 mm

Width

Height	105 mm

Wire diameter

Usable cross-section

Maintain electrical functions	no

Product description

Product description

Mesh cable tray with shaped connector of side height 105 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm.

Technical data

Colour	zinc
Connector version	Integrated connector

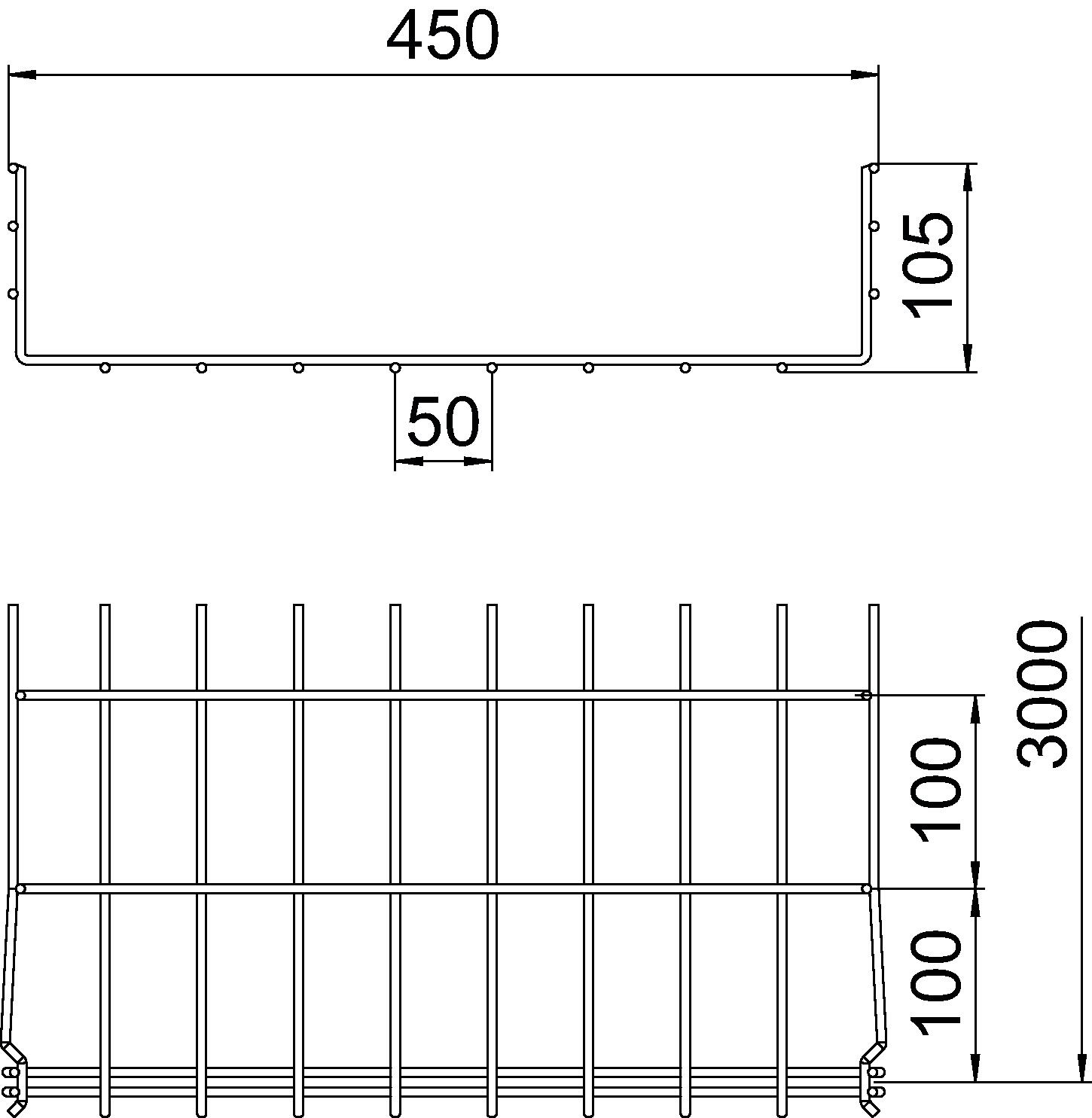

Dimension	105x450x3000
Integrated partition	Without
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Profile shape	U-shaped

Rustproof steel, pickled	no
Screwless connector	yes
Surface	Hot-dip galvanised
Type of connector, cable support system	Click fastening
Usable cross-section	411 cm²
Usable cross-section	41100 mm²
Wide-span version	no
Wire diameter	4,8 mm

Support spacing 2.5 m	0,33 kN/m
Support spacing 3.0 m	0,3 kN/m

CO2 Footprint (GWP) Cradle-to-Gate	5,9443 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	5,9443 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-21T00:00:00.000+0200

Technical data

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
GRM 105 100 FT	3000 mm	100 mm	105 mm	3.9 mm	82 cm²	no	6002431	m	3 m
GRM 105 150 FT	3000 mm	150 mm	105 mm	3.9 mm	130 cm²	no	6002433	m	3 m
GRM 105 200 FT	3000 mm	200 mm	105 mm	4.8 mm	175 cm²	no	6002435	m	3 m
GRM 105 300 FT	3000 mm	300 mm	105 mm	4.8 mm	268 cm²	no	6002437	m	3 m
GRM 105 400 FT	3000 mm	400 mm	105 mm	4.8 mm	363 cm²	no	6002439	m	3 m
GRM 105 450 FT	3000 mm	450 mm	105 mm	4.8 mm	411 cm²	no	6002441	m	3 m
GRM 105 500 FT	3000 mm	500 mm	105 mm	4.8 mm	459 cm²	no	6002443	m	3 m
GRM 105 600 FT	3000 mm	600 mm	105 mm	4.8 mm	554 cm²	no	6002445	m	3 m
