MWAG 12 A4 wall and support bracket
Item no. 6424414 | EAN 4012197254018
- Product description
-

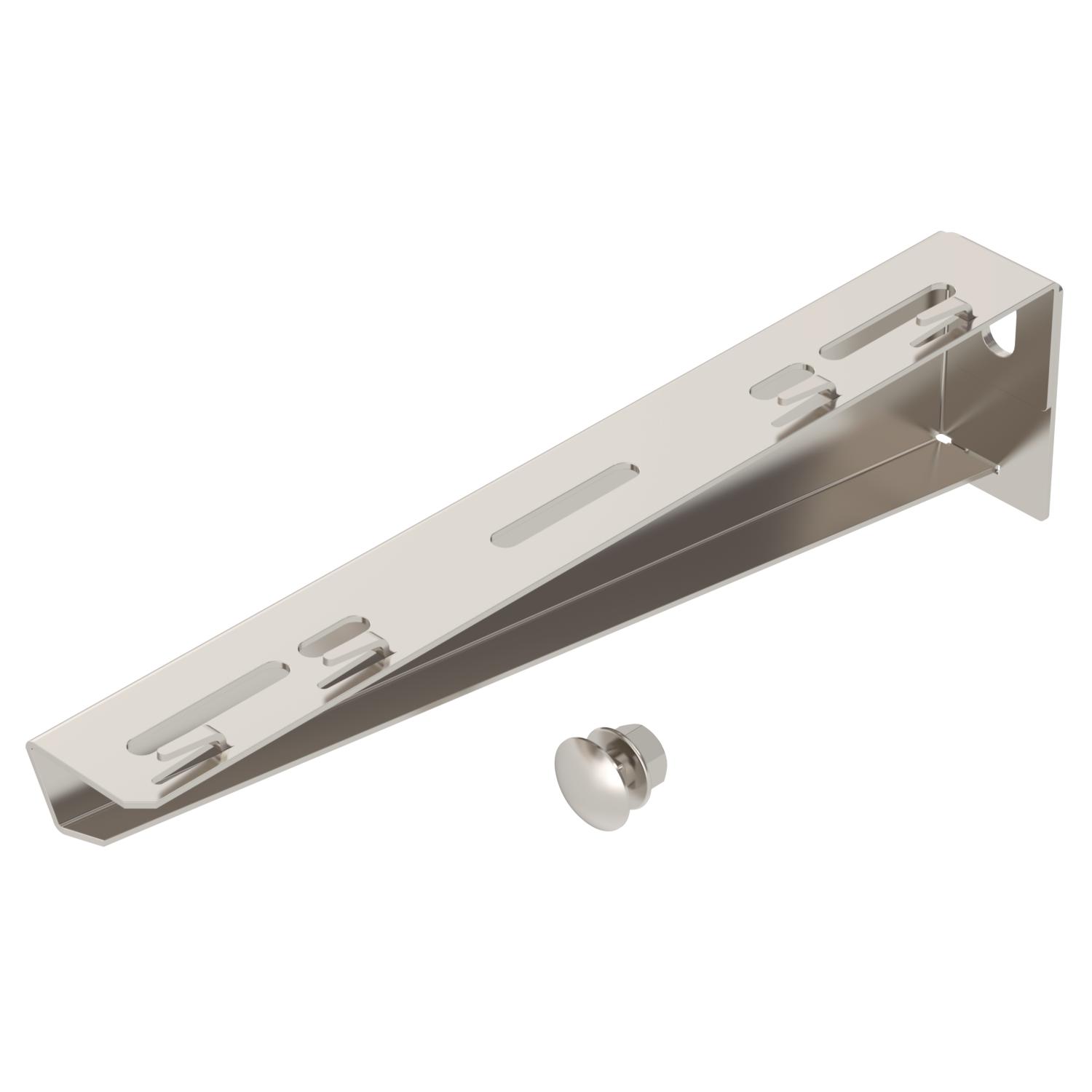

Product descriptionLight-duty wall and support bracket with edged design for screwless mesh cable tray fastening.
Including truss-head bolt M10 x 25 for fastening to
U supports.
-
- Technical data
-
Technical data

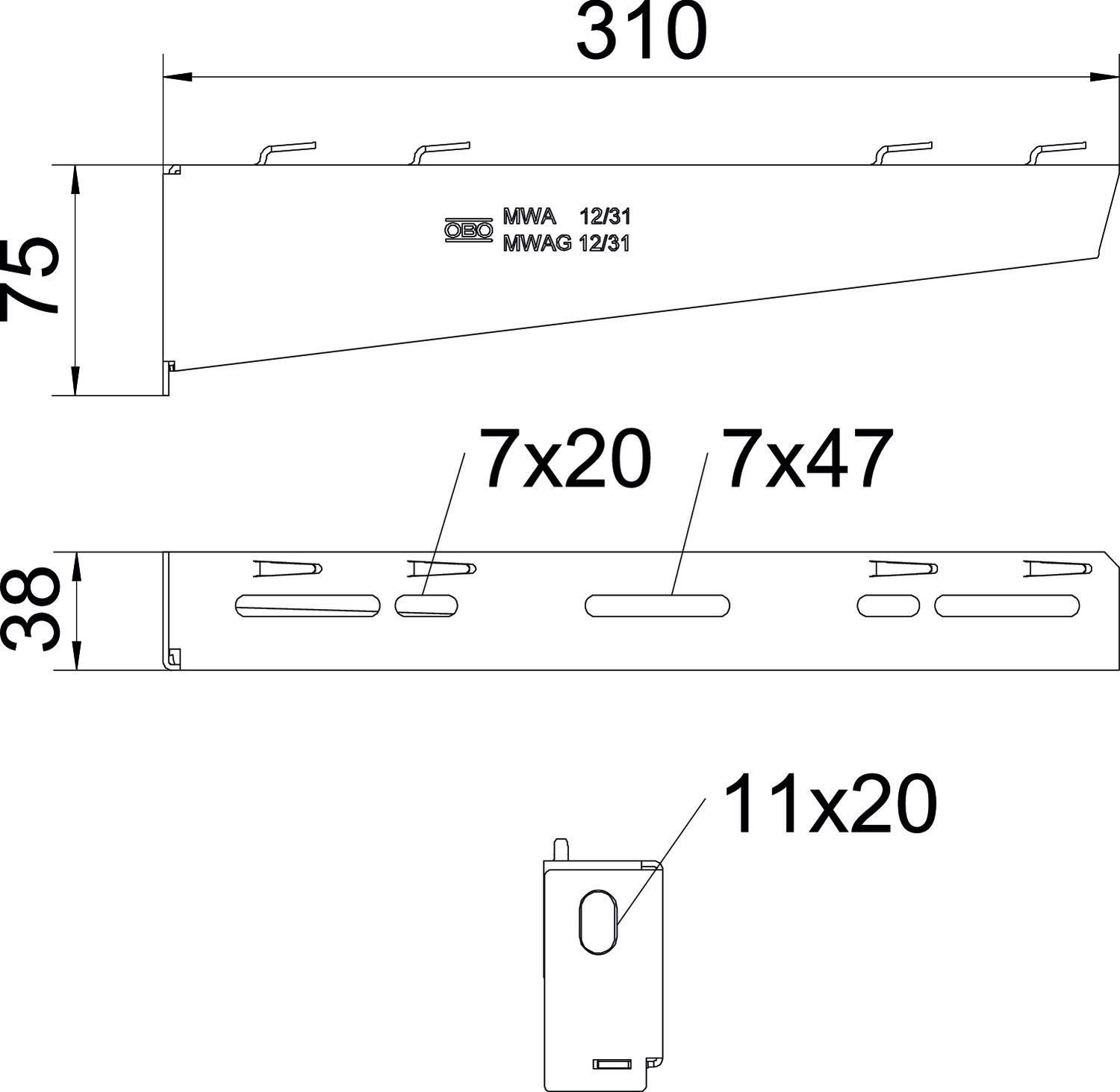

Angle range, max. 90 mm Angle range, min. 90 mm CO2 Footprint (GWP) Cradle-to-Gate 3,3169 kg CO2e / 1 Piece Colour stainless steel Dimension B310mm Dimension A 38 mm Dimension B 310 mm Dimension H 75 mm Dimension L 310 mm F in kN 1,2 kN for width min. 300 Height 2,95 in Height 75 mm Hole diameter 11 mm Length 38 mm Maintain electrical functions no Material Stainless steel 1.4571 Rustproof steel, pickled no Surface Bright, treated Version for Wall and support bracket Width 310 mm Width 12 in - All types
