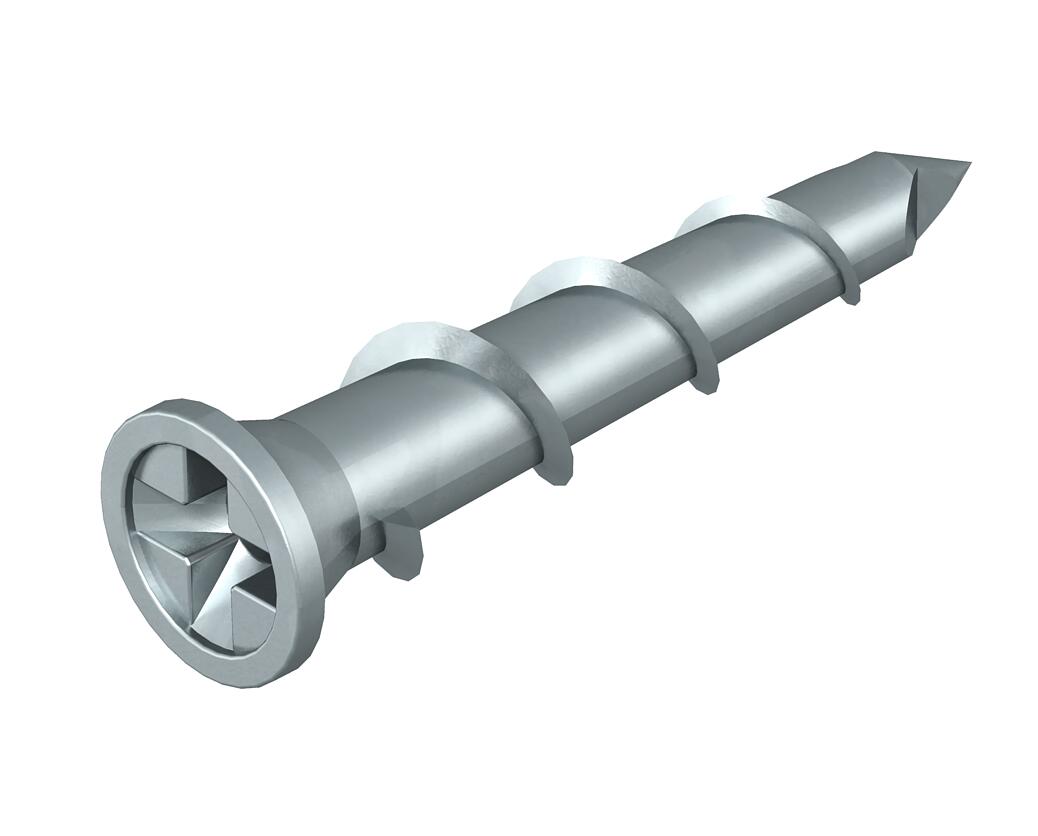

Plasterboard anchor
Item no. 3483239 | EAN 4012195418207
- Product description
-
Product descriptionTo fasten components to plasterboard or fibre composite plates.
Min. plate thickness: 5 mm.
-
- Technical data
-
Technical data
Diameter 7,5 mm Dimension Ø6x25 Material Die-cast zinc Permitted load range, tension zone 0,04 With bolts no With thread yes Dimensions

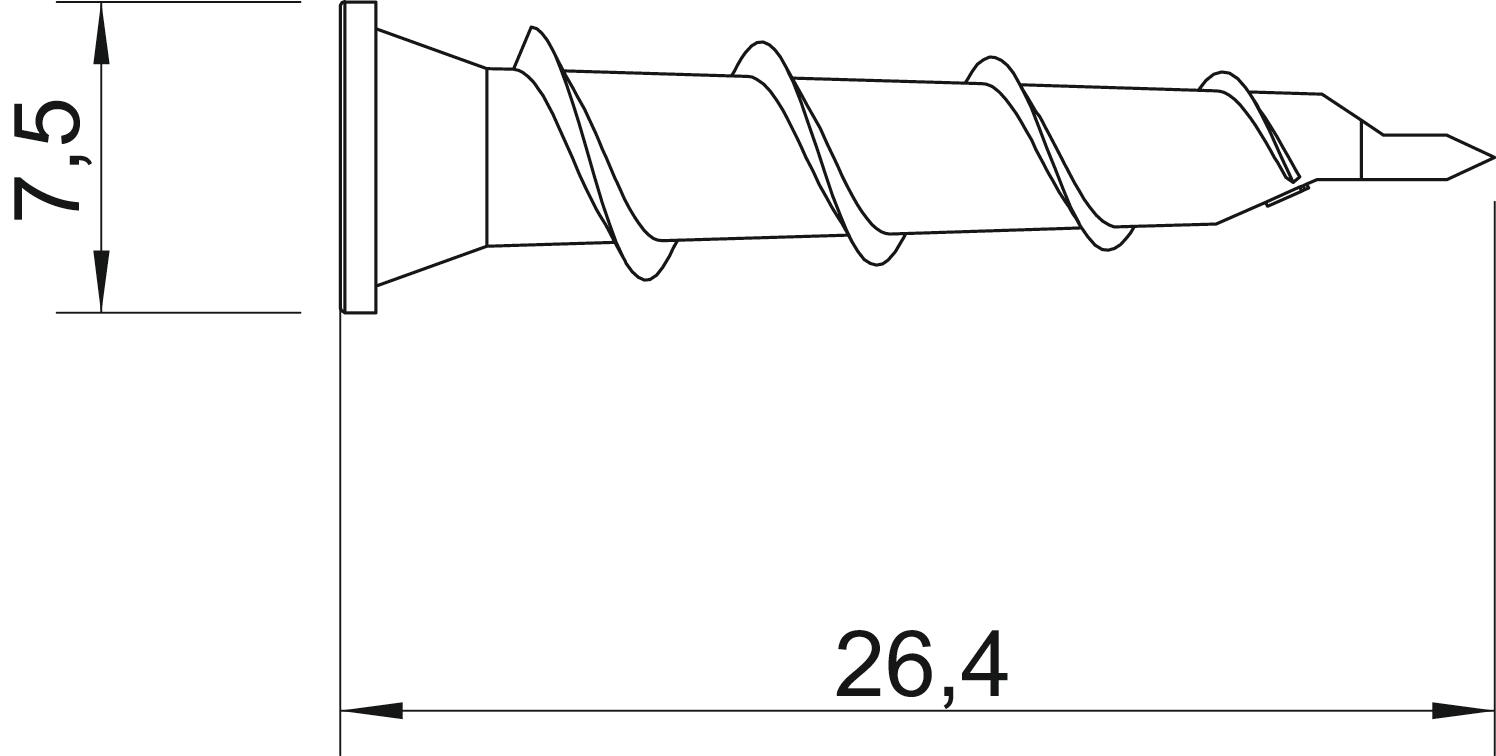

Dimension D 7,5 mm Dimension L 26,4 mm Length 26,4 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 7,61 kg CO2e / 1 Piece CO₂ Footprint (GWP) 7,61 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 910 GKSM 6x25 / 3483239 , 0.14MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity 910 GKSM 6x25 / 3483239 , 0.12MB , pdfRoHS Declaration of conformity 910 GKSM 6x25 / 3483239 , 0.13MB , pdf
