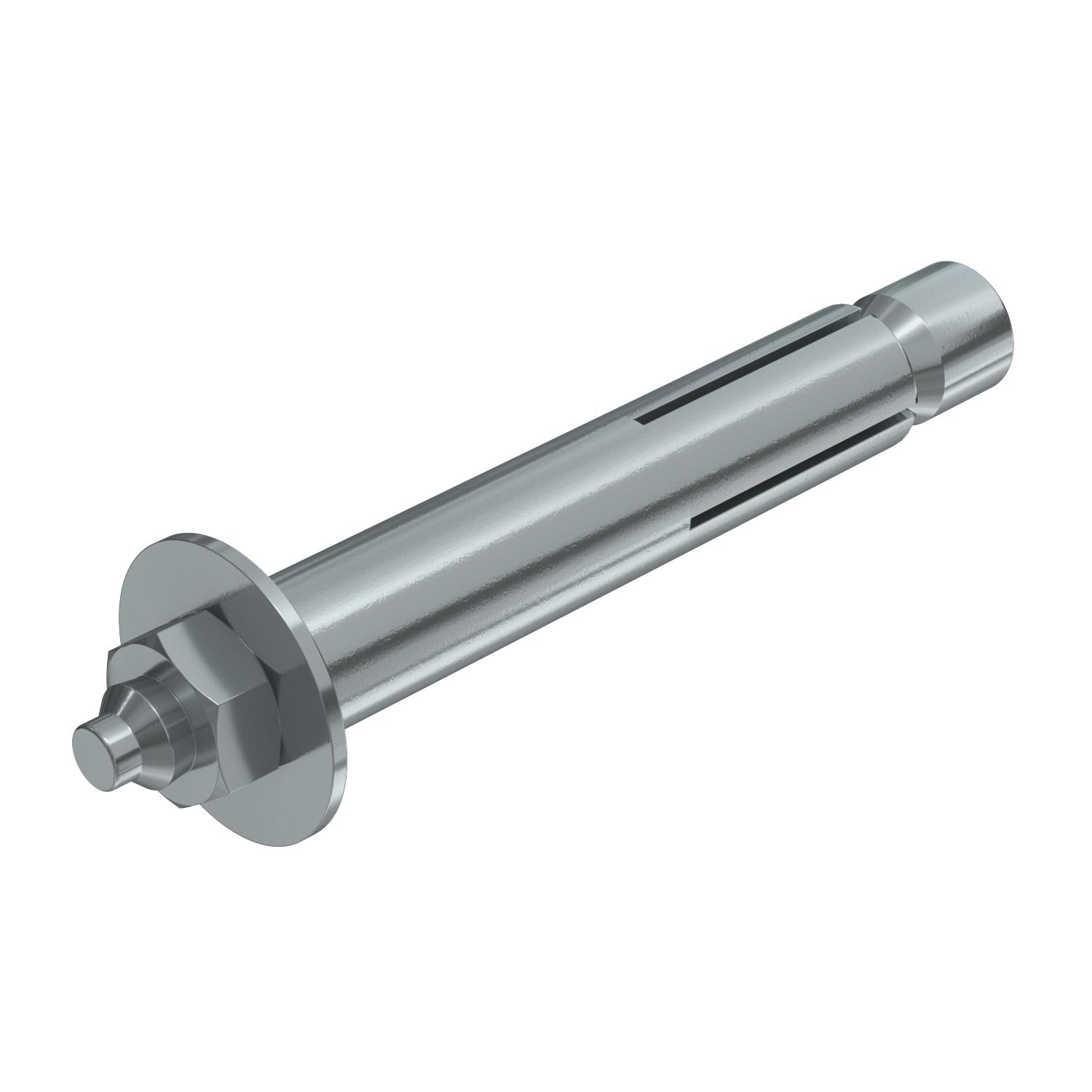

Porous concrete anchor with M8 external thread
Item no. 3497608 | EAN 4012196652365
- Product description
-
Product descriptionSteel spreading anchor tested for fire protection properties and approved for use in porous concrete.
Version with external thread. Suitable for fire loads of up to 120 minutes, please refer to the general construction approval for the load values (applies to porous concrete of resistance classes of min. 3.3).
A setting tool is required for mounting.
-
- Technical data
-
Technical data

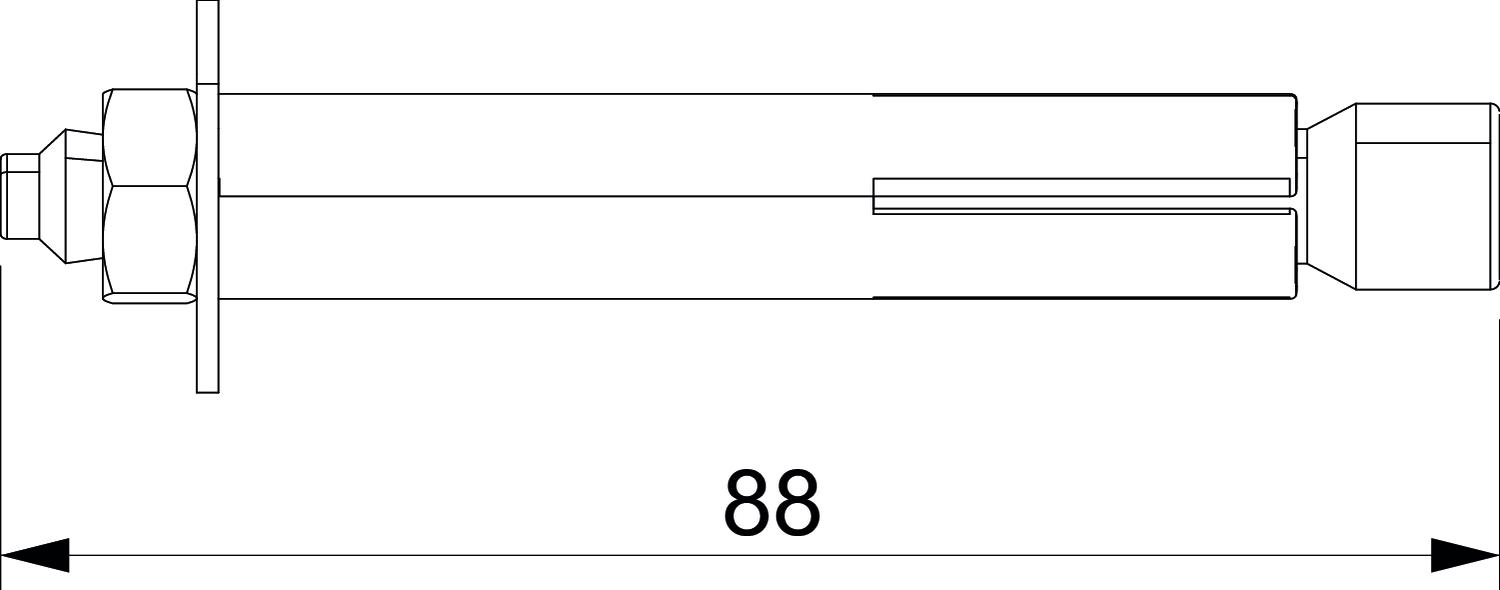

Clamping strength 10 mm Colour zinc Dimension 88x12 Dimension L 88 mm Length 88 mm Material Steel Surface Electrogalvanized Thread M8 Thread metric 8 Thread type Metric Version for For knocking in - All types
- Downloads
-
Data sheet PBD M8x10 / 3497608 , 0.16MB , pdfNo invitation to tender text is available for this product.
