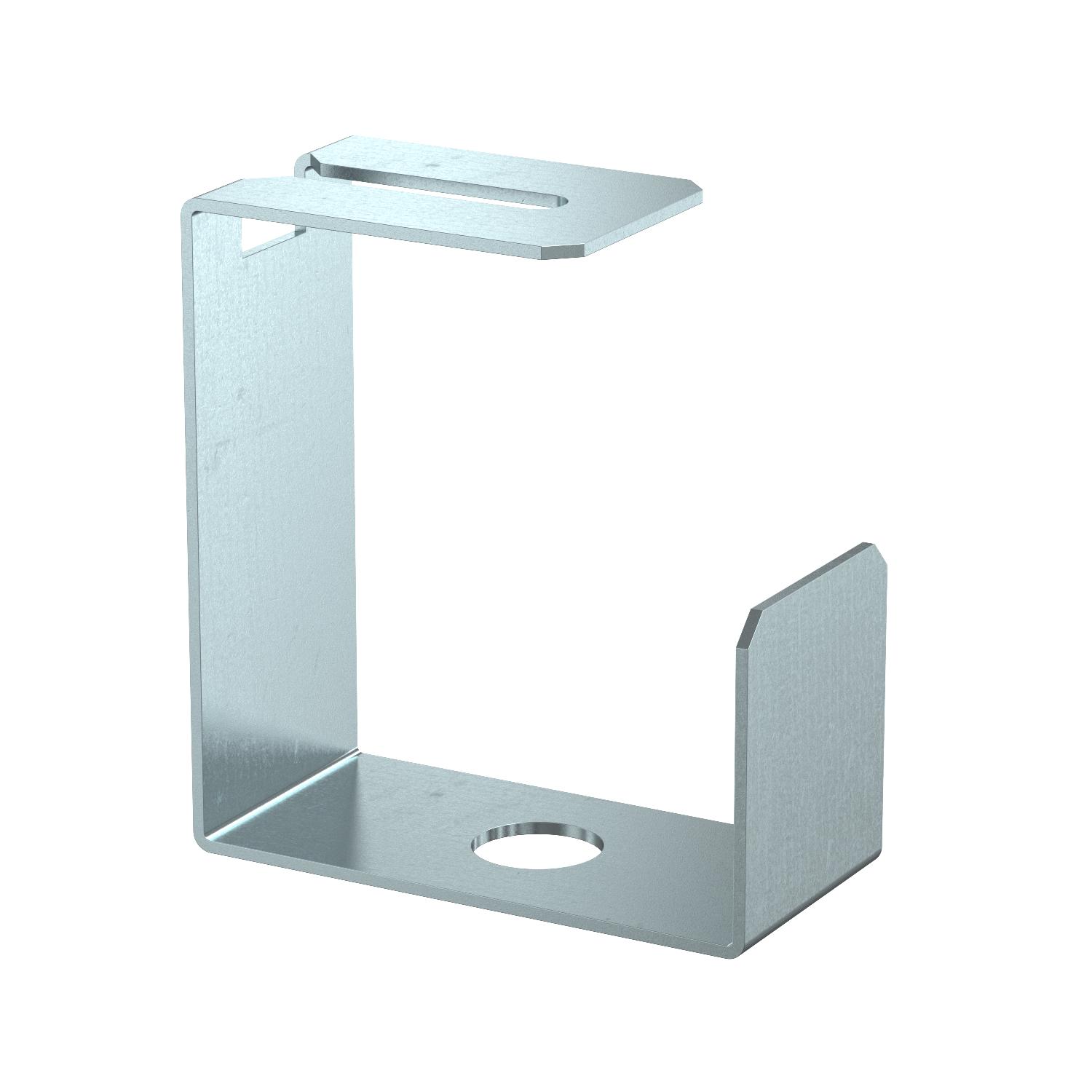

Pressure clip for ceiling mounting, duct height 120 mm
Item no. 7218150 | EAN 4012197310479
- Product description
-
Product descriptionInstallation aid against cables falling out during ceiling mounting of the PLM D 1220 installation duct.
-
- Technical data
-
Technical data
Accessories yes Colour zinc Dimension 94x45x102 Fastening type Screw-on Material Steel Spare part no Surface Strip galvanised Type of accessory Miscellaneous Dimensions

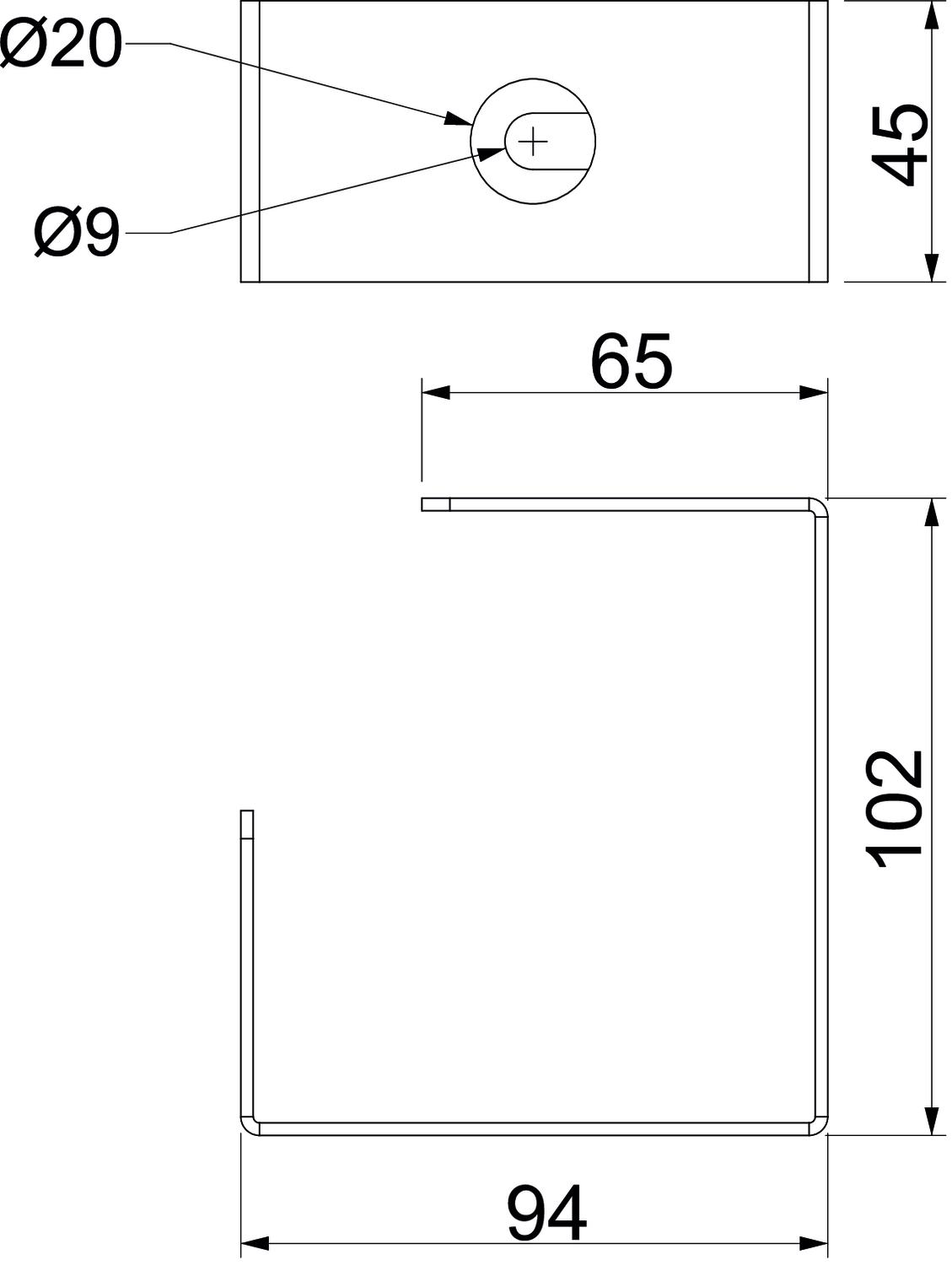

Dimension B 94 mm Dimension b 65 mm Dimension H 102 mm Dimension t 45 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,6127 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,6127 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet PLM CB 1220 FS / 7218150 , 0.16MB , pdfCatalogue Fire protection ducts , 8.99MB , pdfEU declaration of conformity PLM CB 1220 FS / 7218150 , 0.11MB , pdfDeclaration of performance PLM CB 1220 FS / 7218150 , 0.78MB , pdfREACH Declaration of conformity PLM CB 1220 FS / 7218150 , 0.12MB , pdfRoHS Declaration of conformity PLM CB 1220 FS / 7218150 , 0.13MB , pdfLabel approval VDE marks approval PYROLINE Rapid PLM , 0.27MB , pdfMounting instructions PYROLINE® Rapid installation duct system , 3.70MB , pdfNo invitation to tender text is available for this product.
