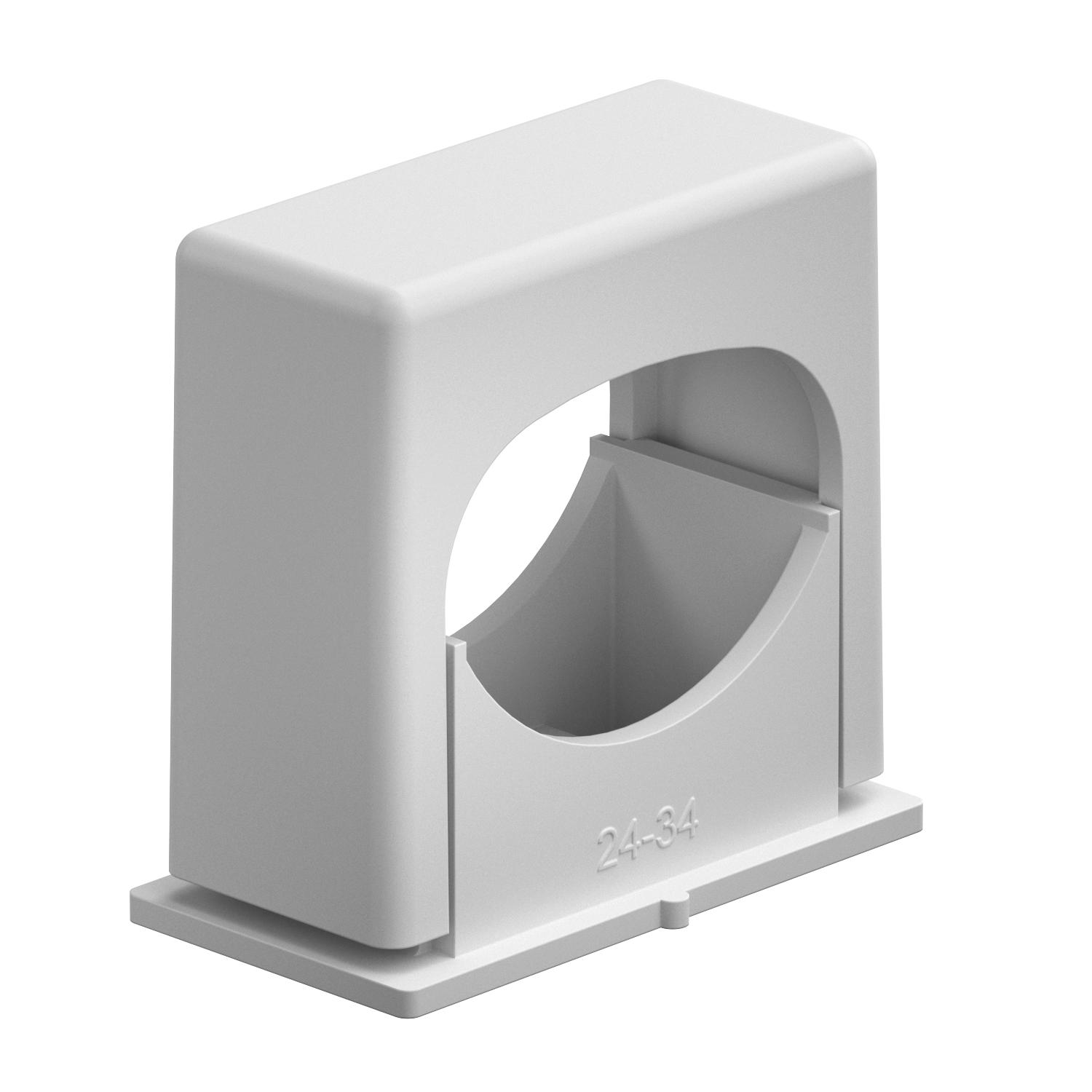

Pressure ISO clip 3052, single, light grey
Item no. 2101068 | EAN 4012195195375
- Product description
-
Product descriptionWith adhesive base, slot and for screwing to M6 thread.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.
-
- Technical data
-
Technical data
Clamping range D, max. 34 mm Clamping range D, min. 24 mm Colour Light grey; RAL 7035 Dimension 24-34mm Expandable no Fastening type Screw hole Halogen-free yes Impact-resistant yes Material Polystyrene Number of cables/pipes 1 Dimensions

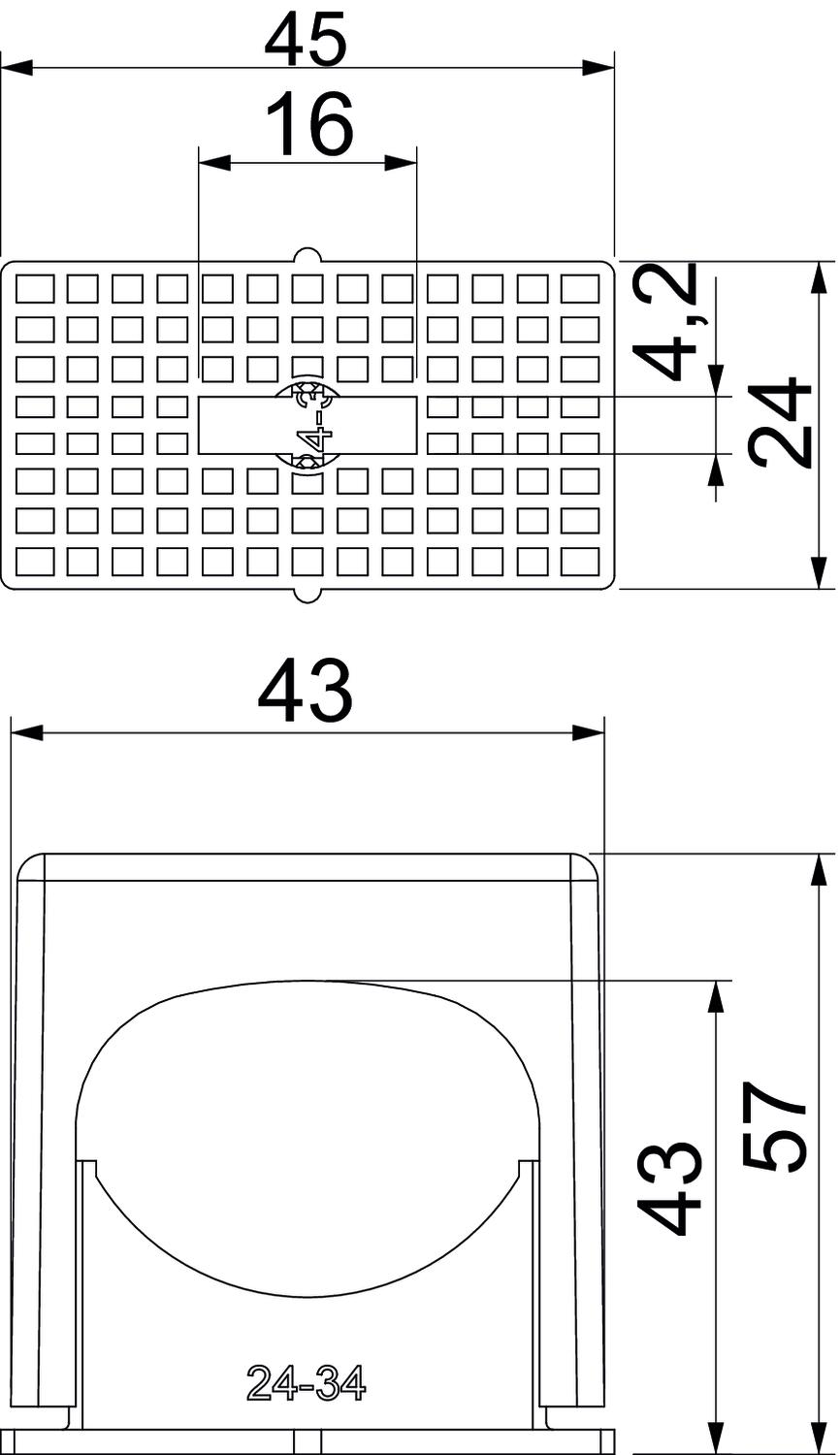

Dimension a 45 mm Dimension a1 (mm) 16 mm Dimension b 24 mm Dimension b1 4,2 mm Dimension c 43 mm Dimension d 43 mm Dimension e 57 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0524 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0524 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 3052 LGR / 2101068 , 0.18MB , pdfEU declaration of conformity 3052 LGR / 2101068 , 0.10MB , pdfREACH Declaration of conformity 3052 LGR / 2101068 , 0.12MB , pdfRoHS Declaration of conformity 3052 LGR / 2101068 , 0.12MB , pdf
