Pressure ring, PG thread 18.5 | 14 | 13.5
morepic-1 morepic-2

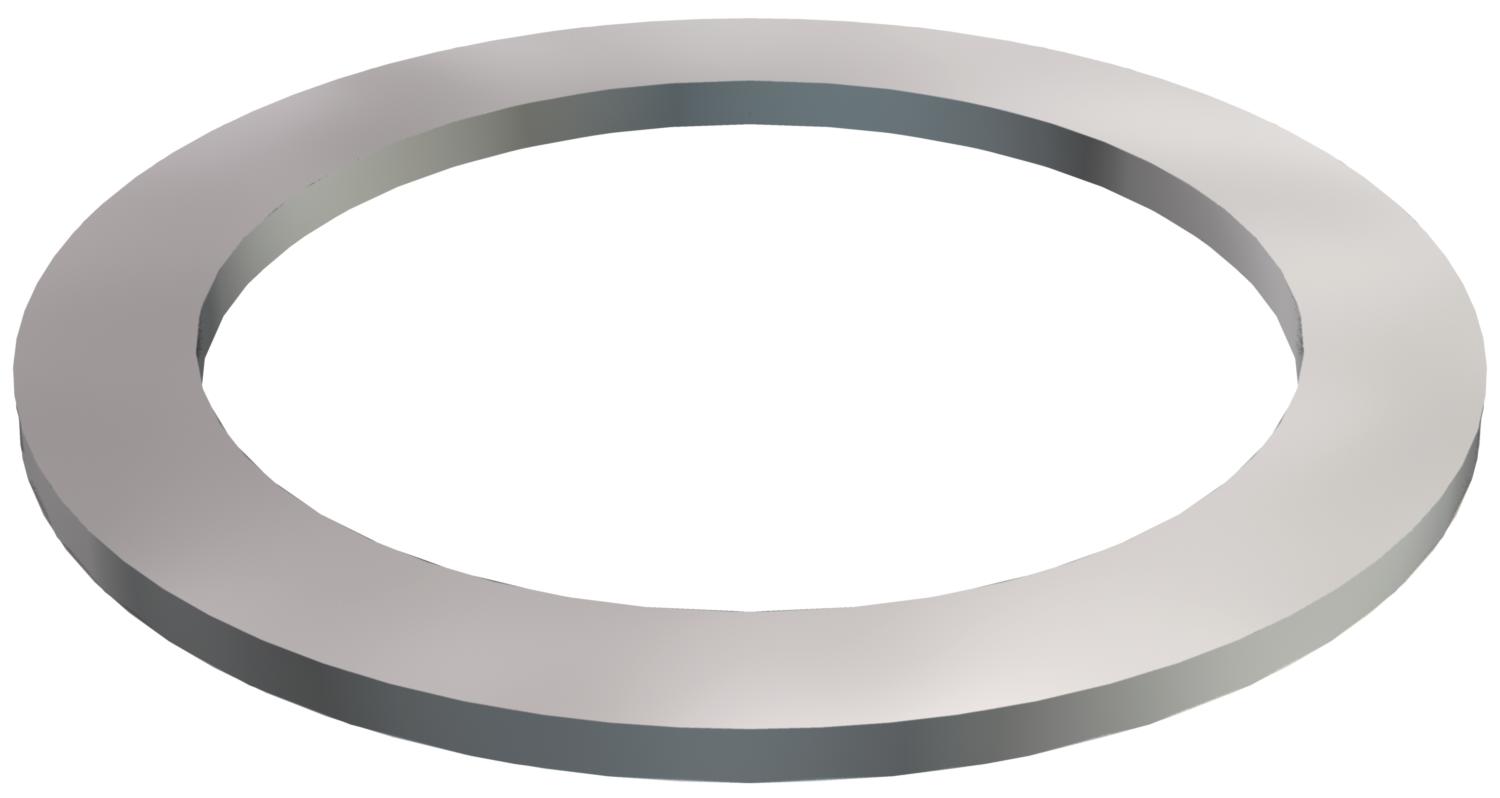

Pressure ring, PG thread

Item no. 2027135 | EAN 4012195164951

Product description
Product description
Pressure ring, Part 7, to DIN 46320, suitable for plastic and brass glands to DIN 46320.
  • Thread Pg
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Dimension PG13,5
External diameter 18,5 mm
Inner diameter 14 mm
Material Steel
Product series Plug-in seals
ROHS-conformant yes
Screw for PG thread dimension 13,5
Surface Electrogalvanised, transparently-passivated
Thickness 0,75 mm
Version for Miscellaneous

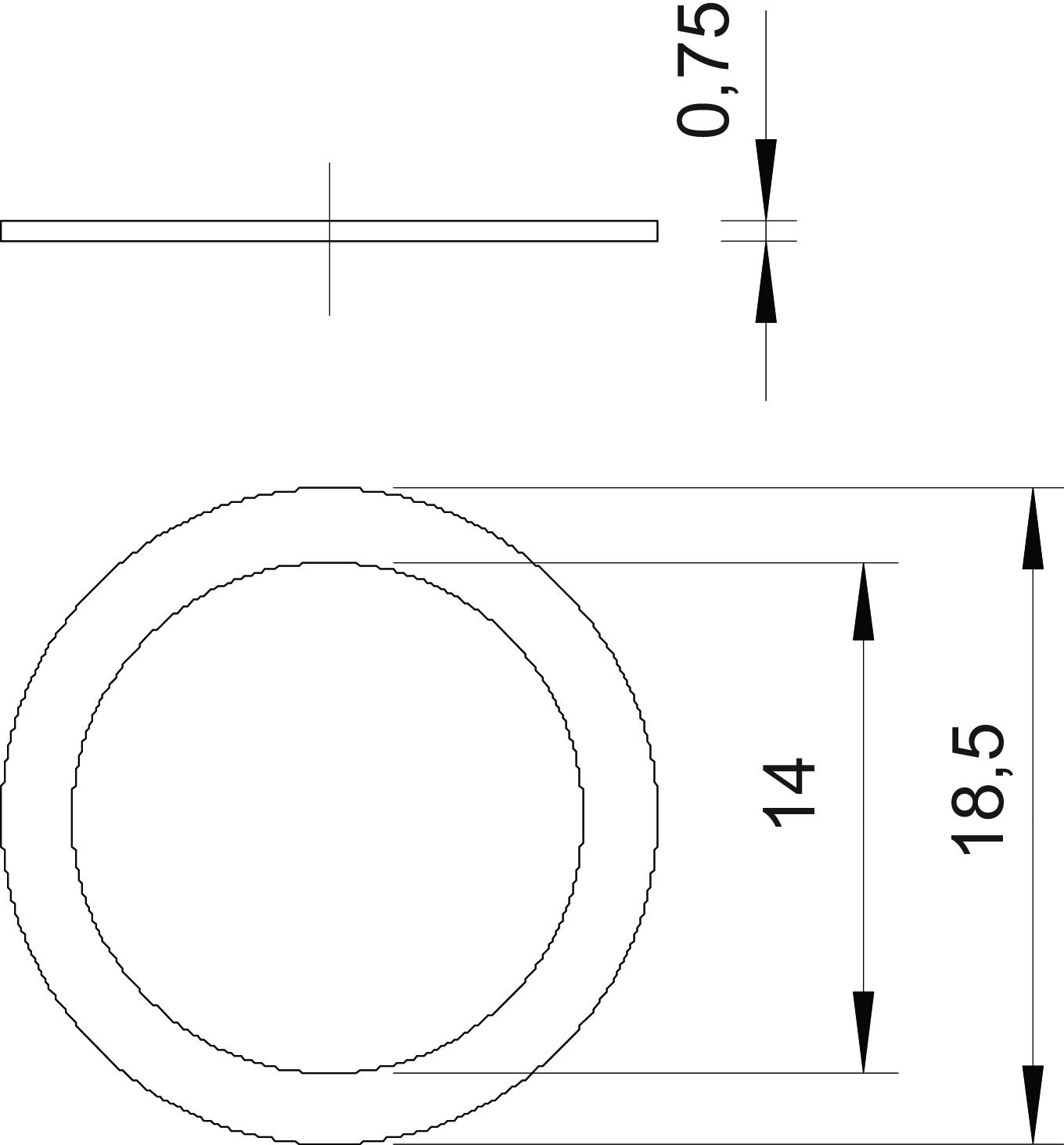

Dimensions

Dimension D1 18,5 mm
Dimension D2 14 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,0045 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,0045 kg CO₂e
Declared Unit Units
Declared Unit Quantity 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Dimension D1 Dimension D2 Screw for PG thread dimension Item no. Quantity SSU
107 D PG13.5 GTP 18.5 mm 14 mm 13.5 2027135
100 piece
107 D PG16 GTP 20.5 mm 16 mm 16 2027151
100 piece
