Protective panel 108 FS
Item no. 6049252 | EAN 4012196147816
- Product description
-

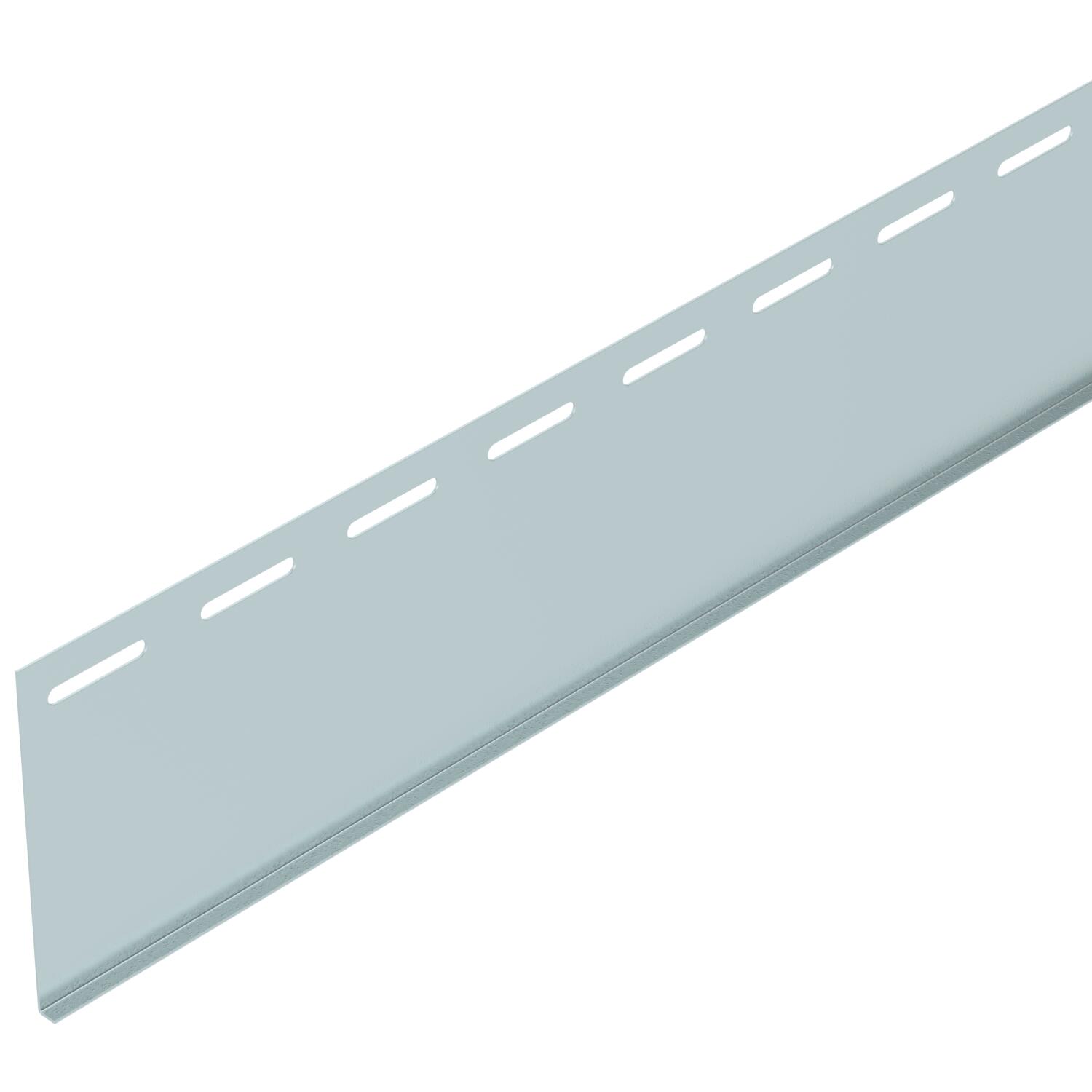

Product descriptionProtective panel, to be attached at the side as a collision guard for the walkable BKRS cable tray system. The side height is 108 mm.
-
- Technical data
-
Technical data

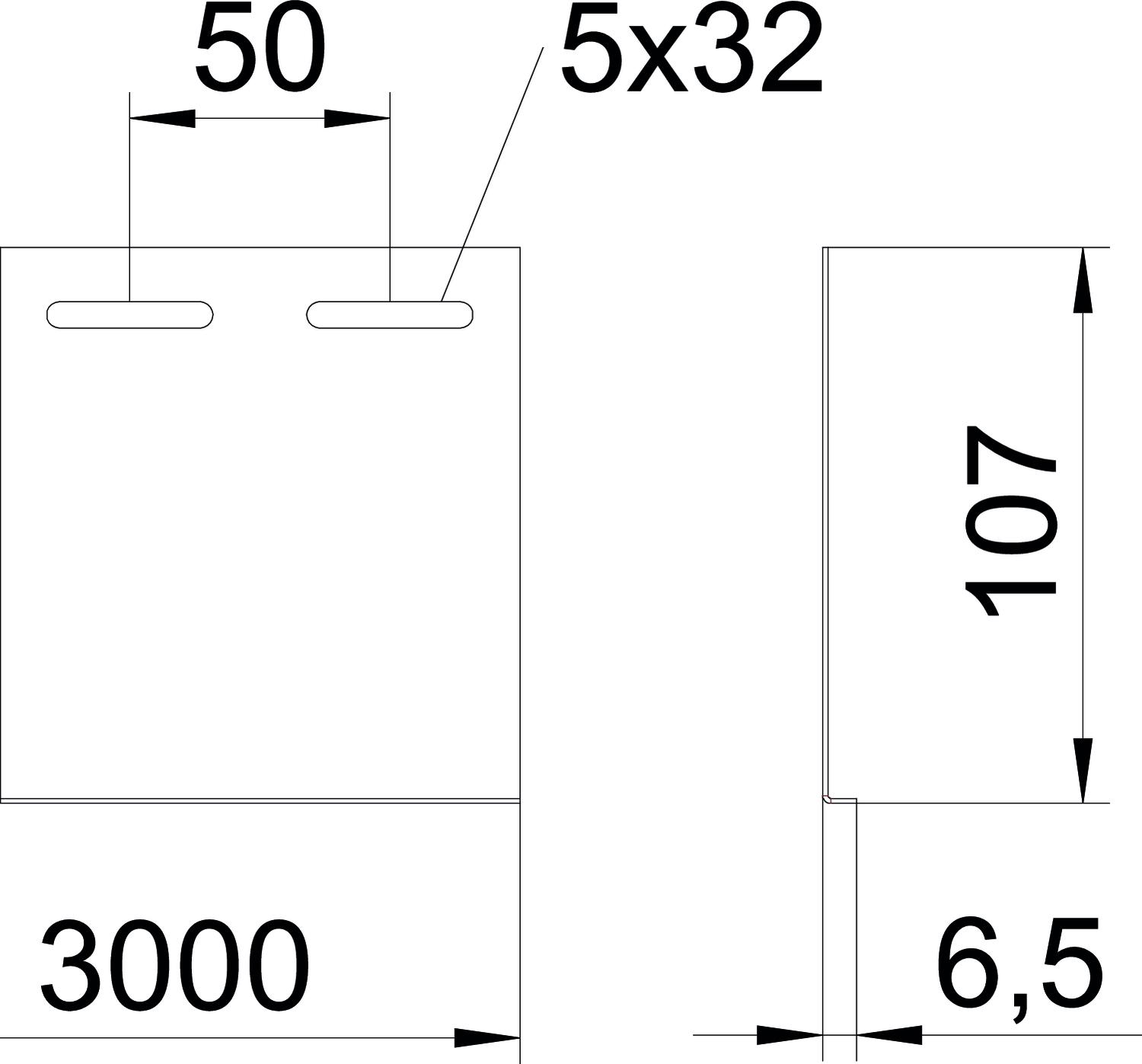

Colour zinc Dimension 100x3000 Material Steel Rustproof steel, pickled no Surface Strip galvanised Thickness 1 mm Dimensions
Dimension h 4 in Height 108 mm Length 3000 mm Length 10 ft Width 6,5 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 2,2085 kg CO2e / 1 Meter CO₂ Footprint (GWP) 2,2085 kg CO₂e Declared Unit (LCA) Metres Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet SB BKS FS / 6049252 , 0.16MB , pdfEU declaration of conformity SB BKS FS / 6049252 , 0.10MB , pdfREACH Declaration of conformity SB BKS FS / 6049252 , 0.27MB , pdfRoHS Declaration of conformity SB BKS FS / 6049252 , 0.28MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions BKRS walkable cable tray systems , 5.36MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Mercedes Benz , 4.15MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for BMW AG , 4.54MB , pdf
