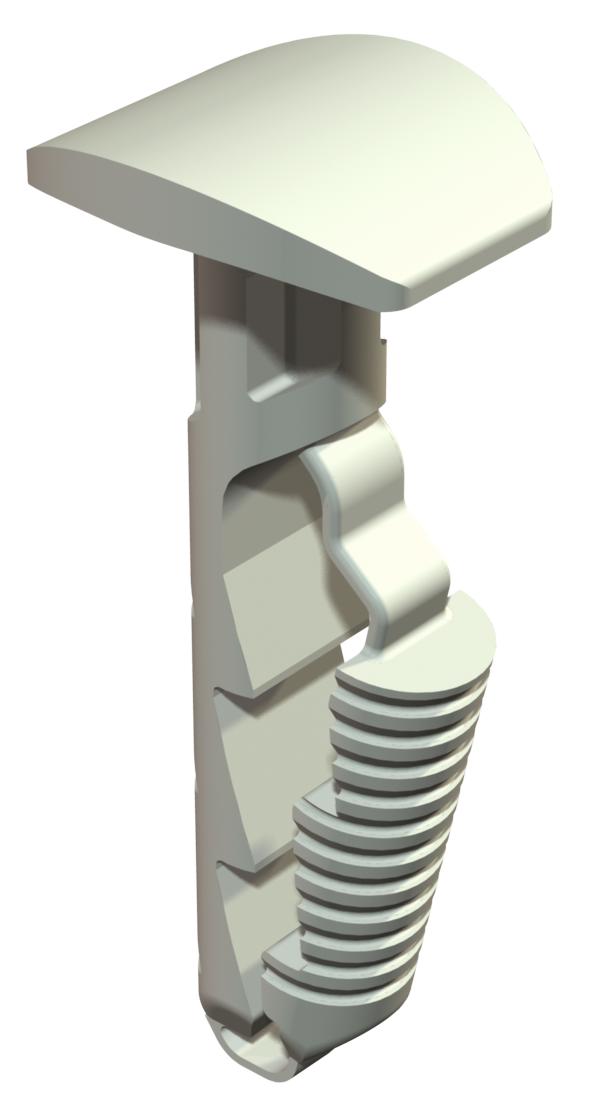

Push-fit anchor with mushroom head
Item no. 2351412 | EAN 4012195242352
- Product description
-
Product descriptionThe push-fit anchor allows simple mounting, e.g. of labelling panels or small WDK ducts.
Suitable for concrete, lime sandstone and brickwork as solid brick. Use in gas concrete masonry is possible, but reduced load capacities must be expected.
-
- Technical data
-
Technical data

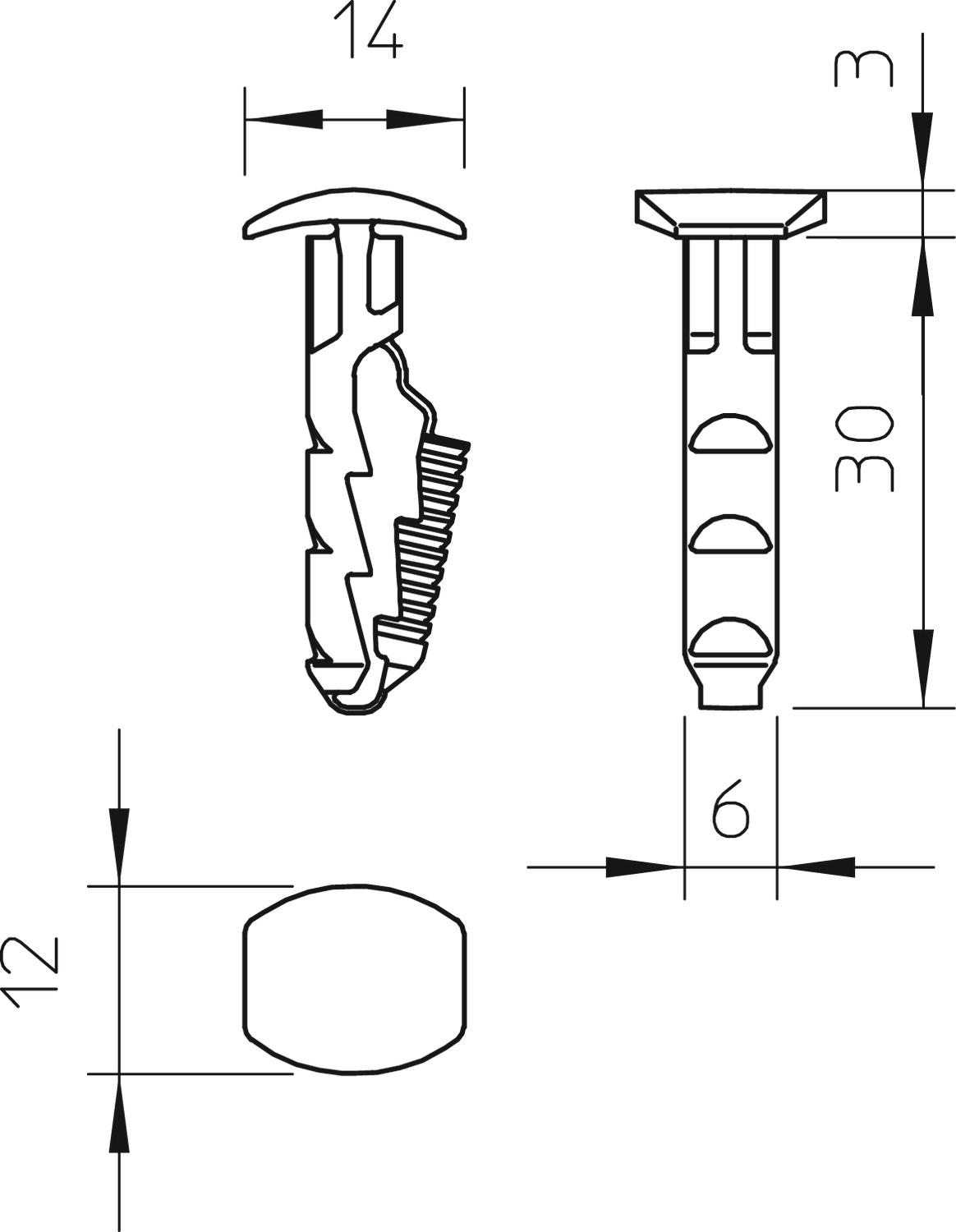

Breaking load for concrete B25 250 N Colour Grey-white; RAL 9002 Diameter 6 mm Dimension 6x30mm Drill hole depth 35 mm Drill hole diameter, min. 6 mm Halogen-free yes Material Polyamide Suitable for fastening with cable ties no Suitable for hexagonal wood screw no Version for Push-fit anchor With bolts no Dimensions
Length 30 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0056 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0056 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 910 STP 6x30 / 2351412 , 0.18MB , pdfEU declaration of conformity 910 STP 6x30 / 2351412 , 0.06MB , pdfREACH Declaration of conformity 910 STP 6x30 / 2351412 , 0.12MB , pdfRoHS Declaration of conformity 910 STP 6x30 / 2351412 , 0.12MB , pdf
