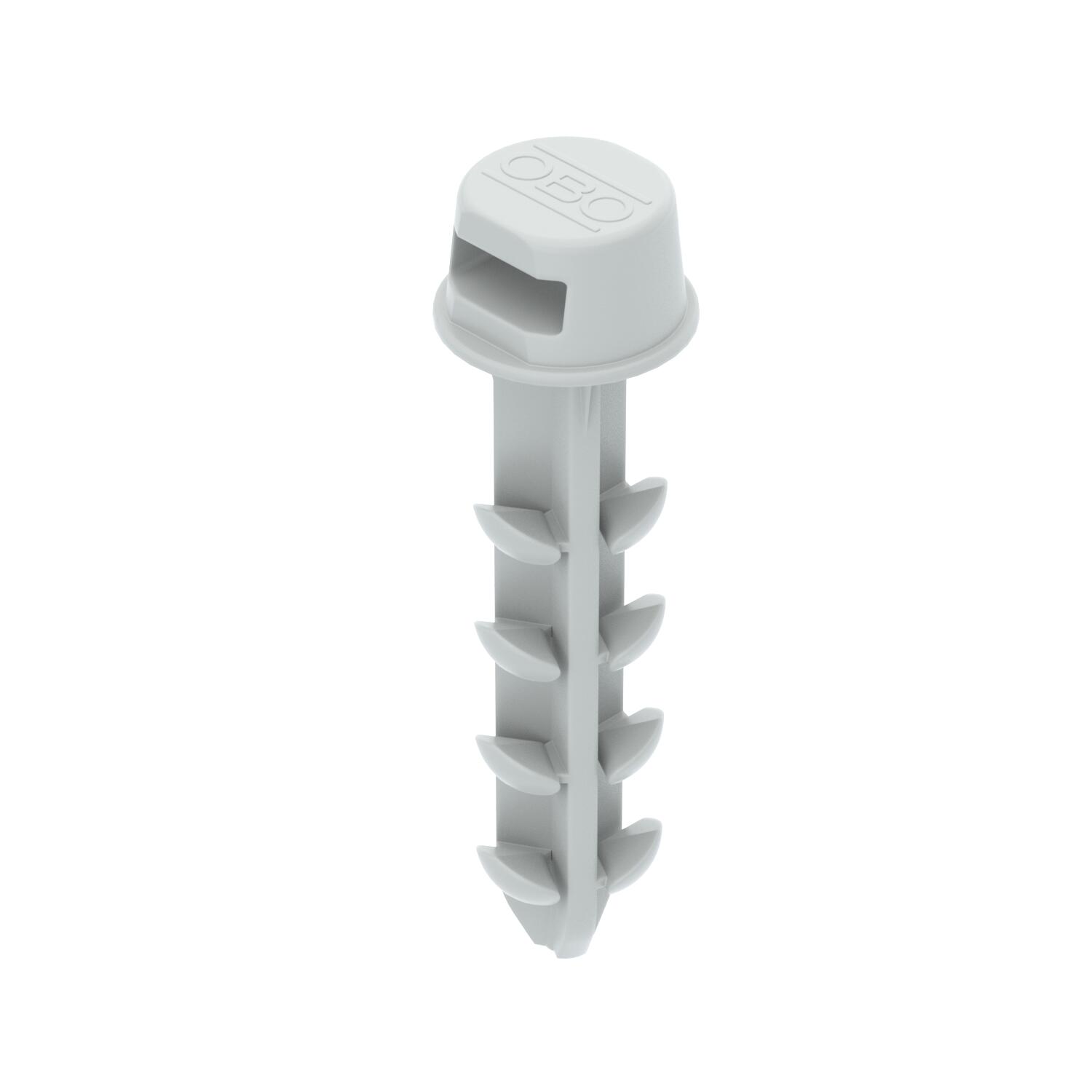

Push-fit plug Delta-Push® for cable ties 30 | 6 | 6

Push-fit plug Delta-Push® for cable ties

Item no. 2351676 | EAN 4012197430825

Item no. / Types	2351676 / DP KB 30

Length	30 mm

Diameter	6 mm

Drill hole diameter, min.	6 mm

Product description

Product description

Push-fit plug Delta-Push® for mounting electrical installations. Suitable for concrete, calcareous limestone, full brick, hollow brick and porous concrete. Toolless mounting by pushing into a drill hole in a wall or on a ceiling. Without screws. With cable tie seat up to 4.8 mm width and 2 mm hight to fasten cables and pipes.

Technical data

Technical data

Diameter	6 mm
Dimension	35,5x10,0x10,0
Drill hole depth	35 mm
Drill hole diameter, max.	6 mm
Drill hole diameter, min.	6 mm
Halogen-free	yes
Material	Polyamide
Min. mounting temperature	5 °C
Mounting temperature, max.	60 °C

Mounting type, anchor, tie	Pre-mounting
Suitable for fastening with cable ties	yes
Suitable for hexagonal wood screw	no
Suitable for material	Calcareous sandstone, Porous concrete, Concrete, Gas concrete, Full brick, Hollow brick
Temperature resistance, min.	-20 °C
Temperature-resistance, max.	60 °C
Version for	Push-fit anchor
With bolts	no

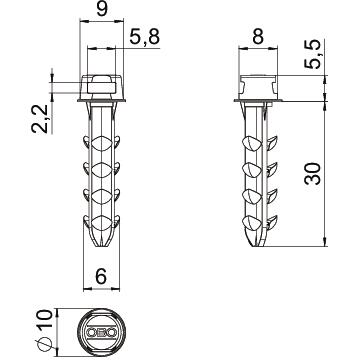

Dimensions

Length	30 mm

Loads

Breaking load vertically perforated brick	300 N
Breaking load concrete	400 N
Breaking load lime sandstone	400 N

Safe working load concrete	175 N
Safe working load lime sandstone	175 N
Safe working load vertically perforated brick	130 N

All types

All types

Types	Length	Diameter	Drill hole diameter, min.	Item no.	Quantity	SSU
DP KB 30	30 mm	6 mm	6 mm	2351676	piece	100 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU

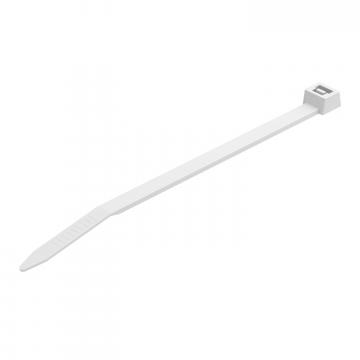

Cable tie, white	565 4.8x120 WS	2331860	piece	100 piece

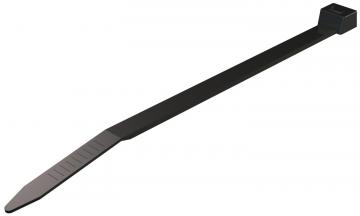

Cable tie, black, UV and weather-resistant	565 4.8x120 SWUV	2331862	piece	100 piece
Cable tie, white	565 4.8x160 WS	2331866	piece	100 piece
Cable tie, black, UV and weather-resistant	565 4.8x160 SWUV	2331868	piece	100 piece
Cable tie, white	565 4.8x200 WS	2331872	piece	100 piece
Cable tie, black, UV and weather-resistant	565 4.8x200 SWUV	2331874	piece	100 piece
Cable tie, white	565 4.8x300 WS	2331878	piece	100 piece
Cable tie, black, UV and weather-resistant	565 4.8x300 SWUV	2331880	piece	100 piece
Cable tie, white	565 4.8x365 WS	2331884	piece	100 piece
Cable tie, black, UV and weather-resistant	565 4.8x365 SWUV	2331886	piece	100 piece
Cable tie, white	565 4.8x430 WS	2331890	piece	100 piece
Cable tie, black, UV and weather-resistant	565 4.8x430 SWUV	2331892	piece	100 piece
