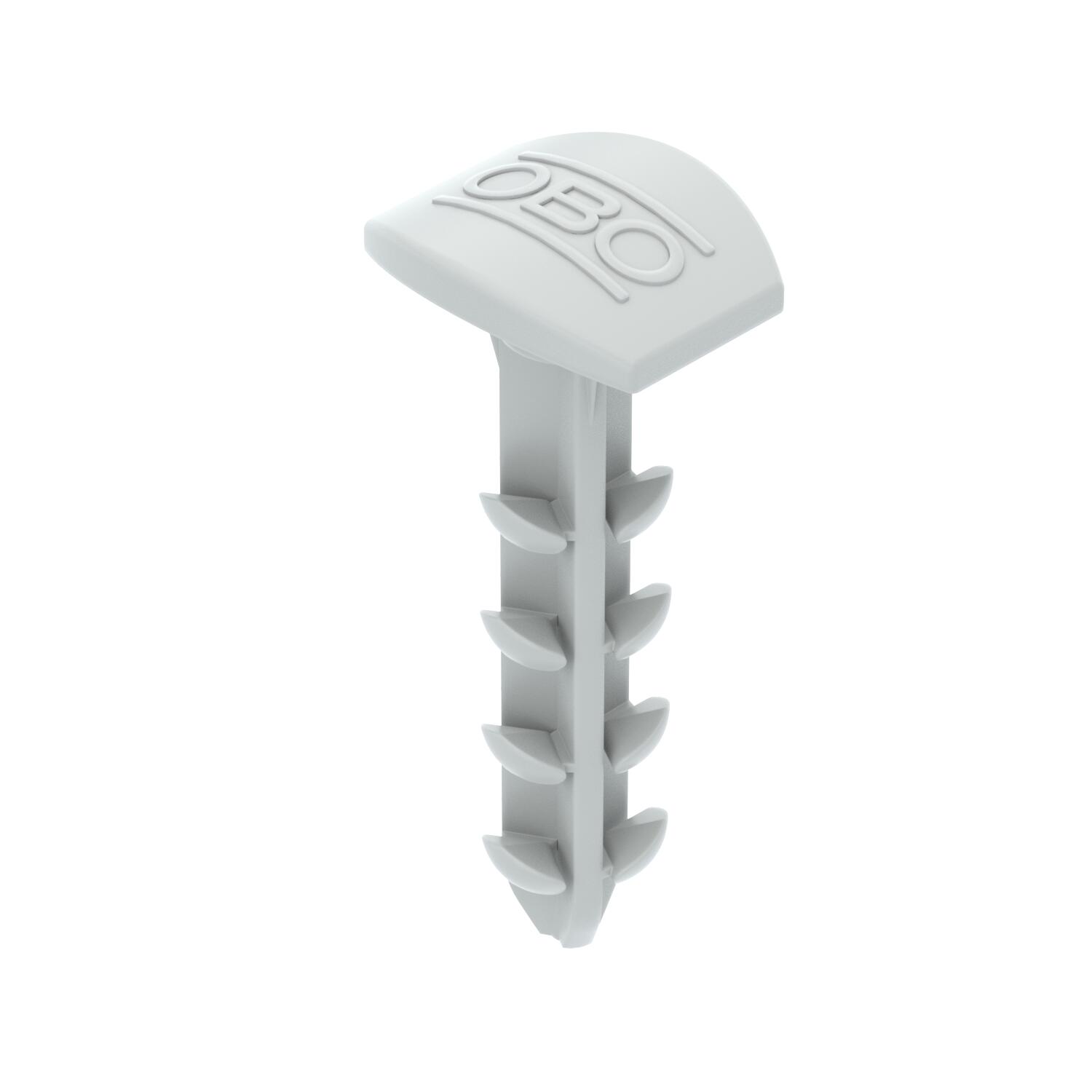

Push-fit plug Delta-Push® for pushing in
Item no. 2351670 | EAN 4012197430740
- Product description
-
Product descriptionPush-fit plug Delta-Push® for mounting electrical installations. Suitable for concrete, calcareous limestone, full brick, hollow brick and porous concrete. Toolless mounting by pushing into a drill hole in a wall or on a ceiling. Without screws. To install cable trunking or labelling panels, for example.
-
- Technical data
-
Technical data

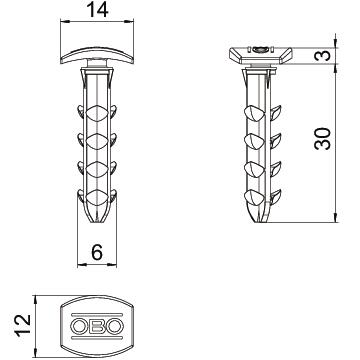

Diameter 6 mm Dimension 34,2x14,2x12,2 Drill hole depth 35 mm Drill hole diameter, max. 6 mm Drill hole diameter, min. 6 mm Halogen-free yes Material Polyamide Min. mounting temperature 5 °C Mounting temperature, max. 60 °C Mounting type, anchor, tie Push-through mounting Suitable for fastening with cable ties no Suitable for hexagonal wood screw no Suitable for material Calcareous sandstone, Porous concrete, Concrete, Gas concrete, Full brick, Hollow brick Temperature resistance, min. -20 °C Temperature-resistance, max. 60 °C Version for Push-fit anchor With bolts no Dimensions
Length 30 mm Loads
Breaking load vertically perforated brick 300 N Breaking load concrete 400 N Breaking load lime sandstone 400 N Safe working load concrete 175 N Safe working load lime sandstone 175 N Safe working load vertically perforated brick 130 N - All types
- Downloads
-
Data sheet DP D 30 / 2351670 , 0.15MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity DP D 30 / 2351670 , 0.13MB , pdfRoHS Declaration of conformity DP D 30 / 2351670 , 0.13MB , pdfMounting instructions Delta-Push®push-fit plug DP D 30, DP KB 30, DP GM6 30, DP S 30 , 0.65MB , pdf
