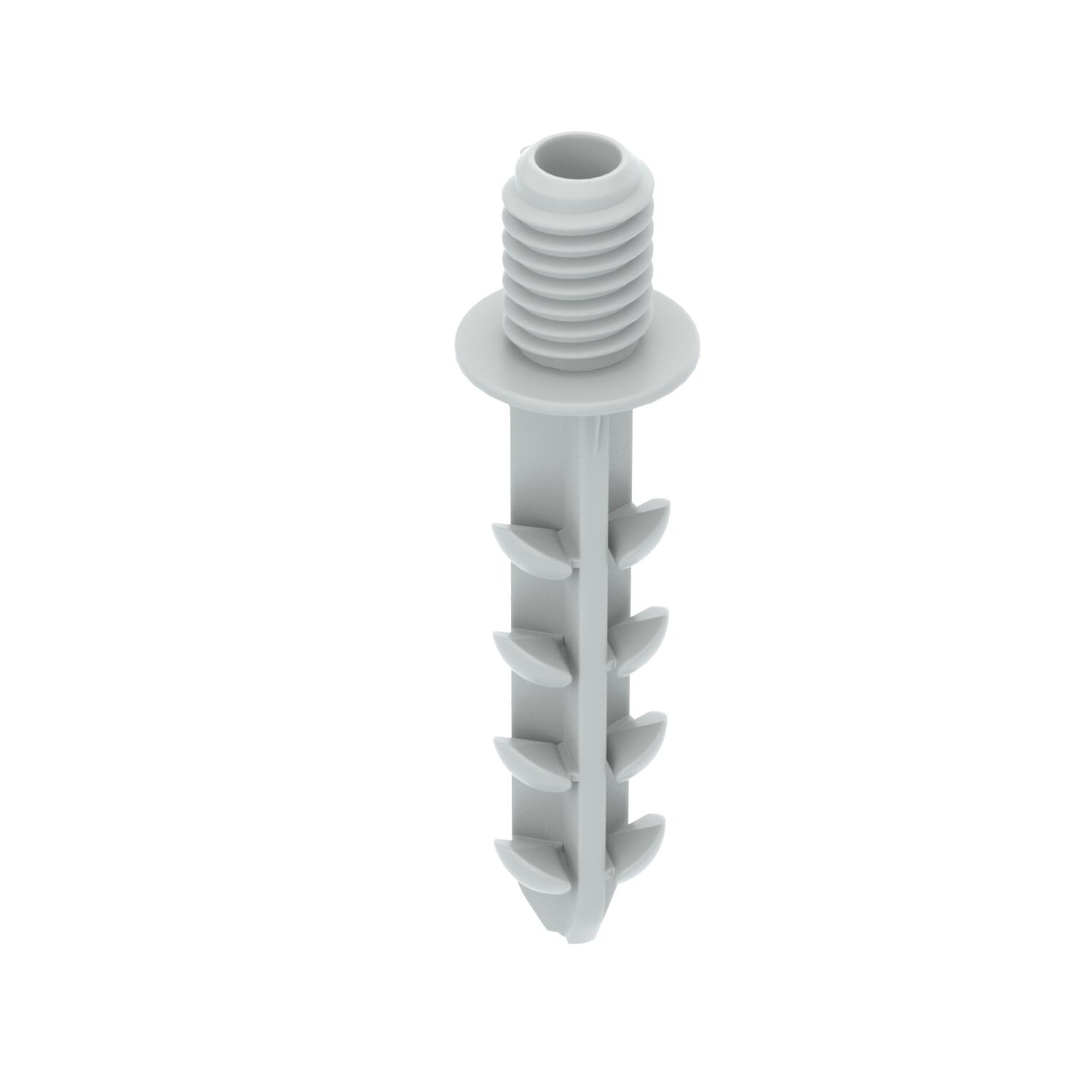

Push-fit plug Delta-Push® with M6 thread
Item no. 2351673 | EAN 4012197430788
- Product description
-
Product descriptionPush-fit plug Delta-Push® for mounting electrical installations. Suitable for concrete, calcareous limestone, full brick, hollow brick and porous concrete. Toolless mounting by pushing into a drill hole in a wall or on a ceiling. Without screws. With M6 thread for screwing on Quick clips, for example.
-
- Technical data
-
Technical data

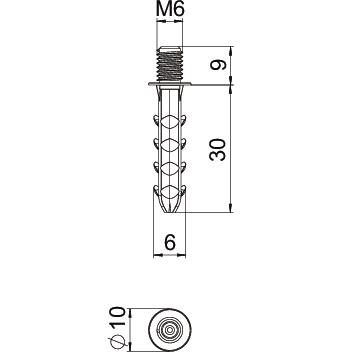

Diameter 6 mm Dimension 39,0x10,0x10,0 Drill hole depth 35 mm Drill hole diameter, max. 6 mm Drill hole diameter, min. 6 mm Halogen-free yes Material Polyamide Min. mounting temperature 5 °C Mounting temperature, max. 60 °C Mounting type, anchor, tie Pre-mounting Suitable for fastening with cable ties no Suitable for hexagonal wood screw no Suitable for material Calcareous sandstone, Porous concrete, Concrete, Gas concrete, Full brick, Hollow brick Temperature resistance, min. -20 °C Temperature-resistance, max. 60 °C Version for Push-fit anchor With bolts no Dimensions
Length 30 mm Loads
Breaking load vertically perforated brick 300 N Breaking load concrete 400 N Breaking load lime sandstone 400 N Safe working load concrete 175 N Safe working load lime sandstone 175 N Safe working load vertically perforated brick 130 N - All types
- Downloads
-
Data sheet DP GM6 30 / 2351673 , 0.15MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity DP GM6 30 / 2351673 , 0.13MB , pdfRoHS Declaration of conformity DP GM6 30 / 2351673 , 0.13MB , pdfMounting instructions Delta-Push®push-fit plug DP D 30, DP KB 30, DP GM6 30, DP S 30 , 0.65MB , pdf
