Roof conductor holder for tiled roofs, angled, Rd 8−10 140 | Rd 8-10
morepic-1 morepic-2 video-1

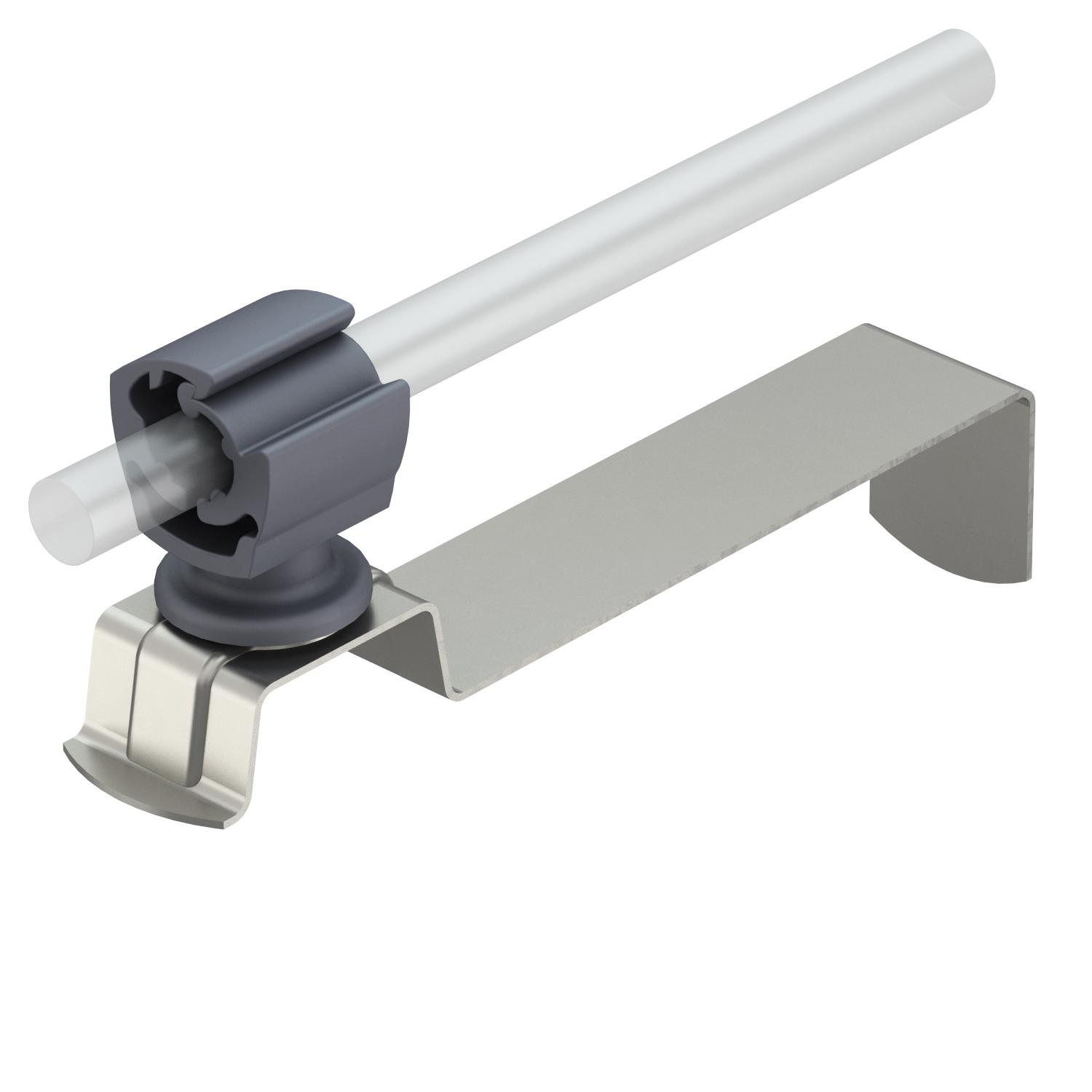

Roof conductor holder for tiled roofs, angled, Rd 8−10

Item no. 5215668 | EAN 4012195812531

5215668 / 157 IK-VA
140 mm
Rd 8-10 mm
Product description
Product description
• Conductor holder of polyamide
• Curved bottom strip for quick installation
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Application Roof surface
Conductor diameter, max. 10
Conductor diameter, min. 8
Conductor fastening type With clamp clip
Dimension 8mm
Fit Rd 8-10 mm
Material Stainless steel 1.4301
Mounting height 40 mm
Mounting type For suspension

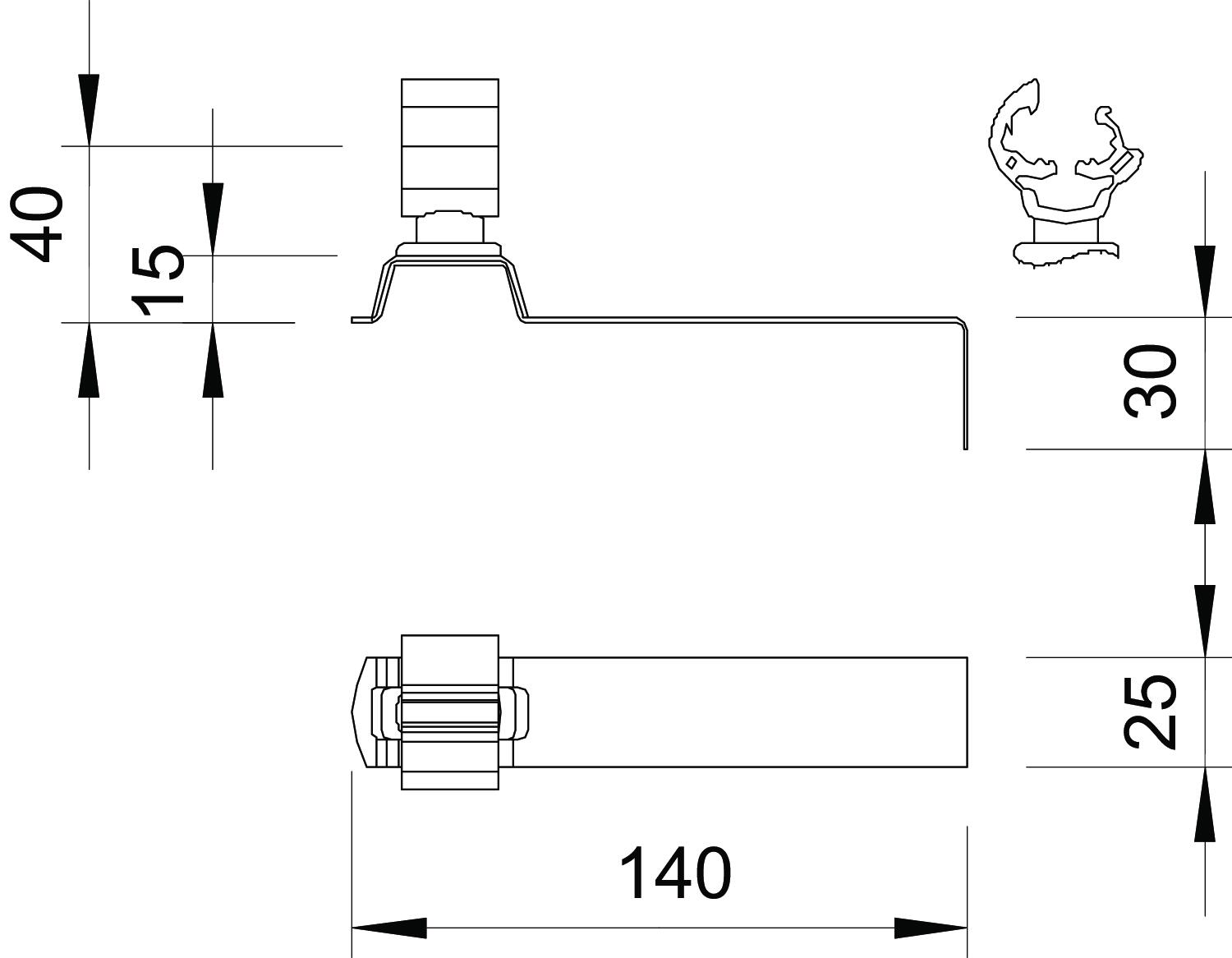

Dimensions

Height 40 mm
Length 140 mm
Width 25 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,2597 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,2597 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Length Fit Item no. Quantity SSU
157 IK-VA 140 mm Rd 8-10 mm 5215668
20 piece
