Roof conductor holder for tiled roofs, angled, Rd 8 140 | Rd 8
morepic-1 morepic-2 morepic-3 video-1

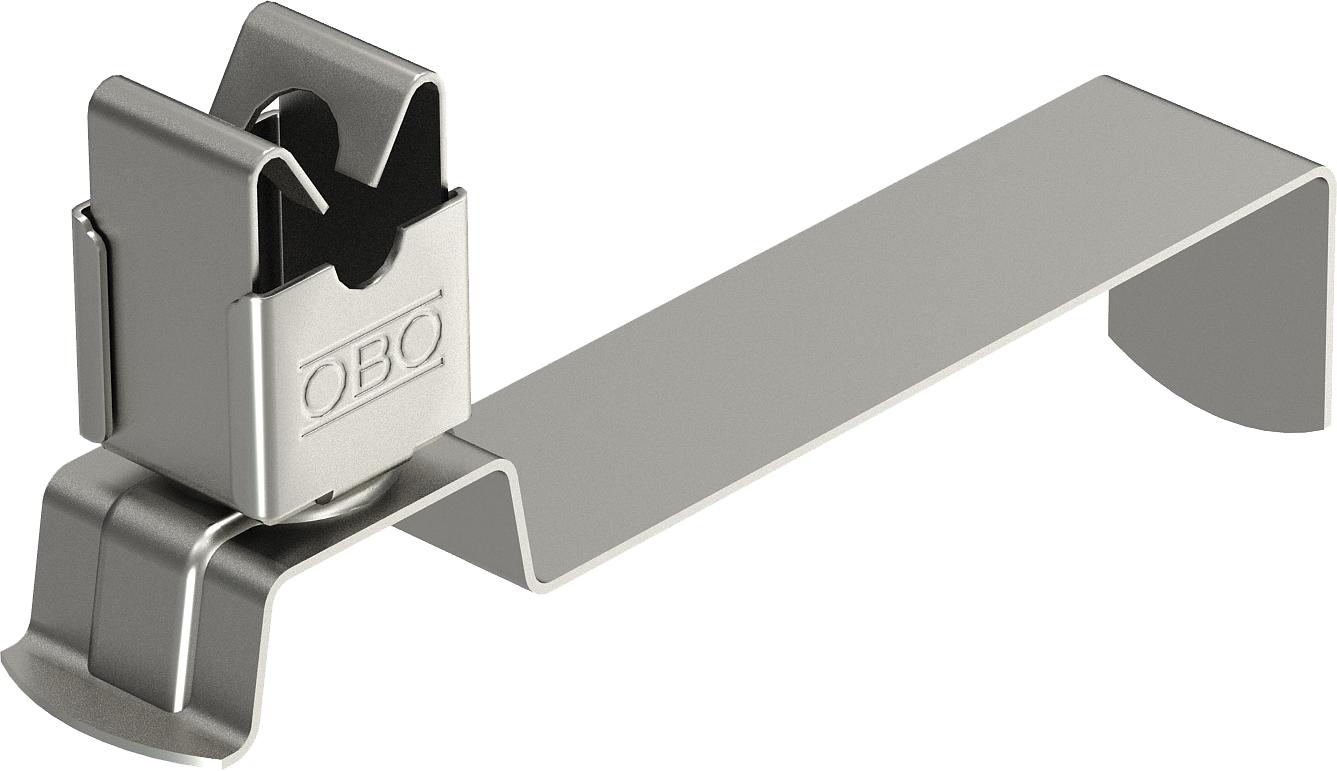

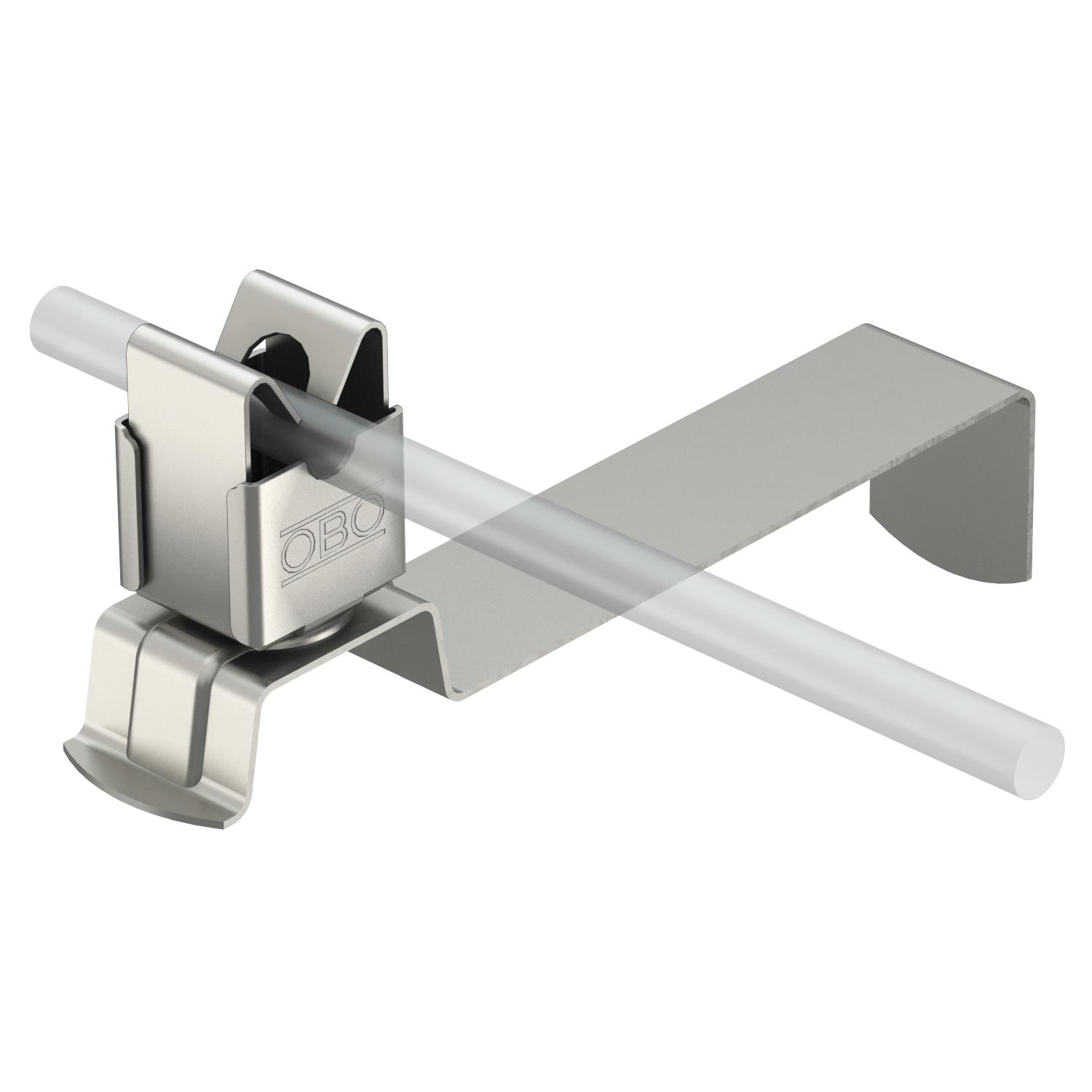

Roof conductor holder for tiled roofs, angled, Rd 8

Item no. 5215625 | EAN 4012195407355

5215625 / 157 I-VA
140 mm
Rd 8 mm
Product description
Product description
• Conductor holder high-grade stainless steel (V2A)

• Curved bottom strip for quick installation
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Application Roof surface
Conductor diameter, min. 8
Conductor fastening type With clip
Dimension 8mm
Fit Rd 8 mm
Material Stainless steel 1.4301
Mounting height 26,5 mm
Mounting type For suspension

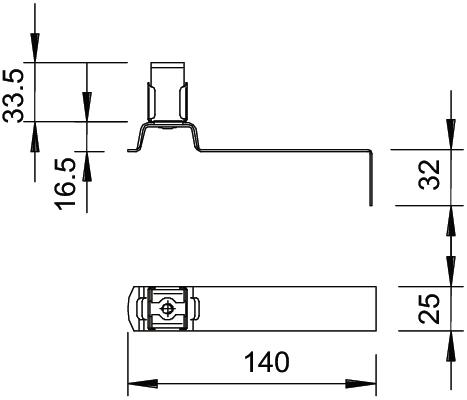

Dimensions

Height 38,5 mm
Length 140 mm
Width 25 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,3319 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,3319 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-21T00:00:00.000+0200
All types

All types

Types Length Fit Item no. Quantity SSU
157 I-VA 140 mm Rd 8 mm 5215625
20 piece
Downloads

Download

Download
Download

EU declaration of conformity 157 I-VA / 5215625 , 0.06MB , pdf
Download
REACH Declaration of conformity 157 I-VA / 5215625 , 0.12MB , pdf
Download
RoHS Declaration of conformity 157 I-VA / 5215625 , 0.13MB , pdf
Download

157 I-VA / 5215625
