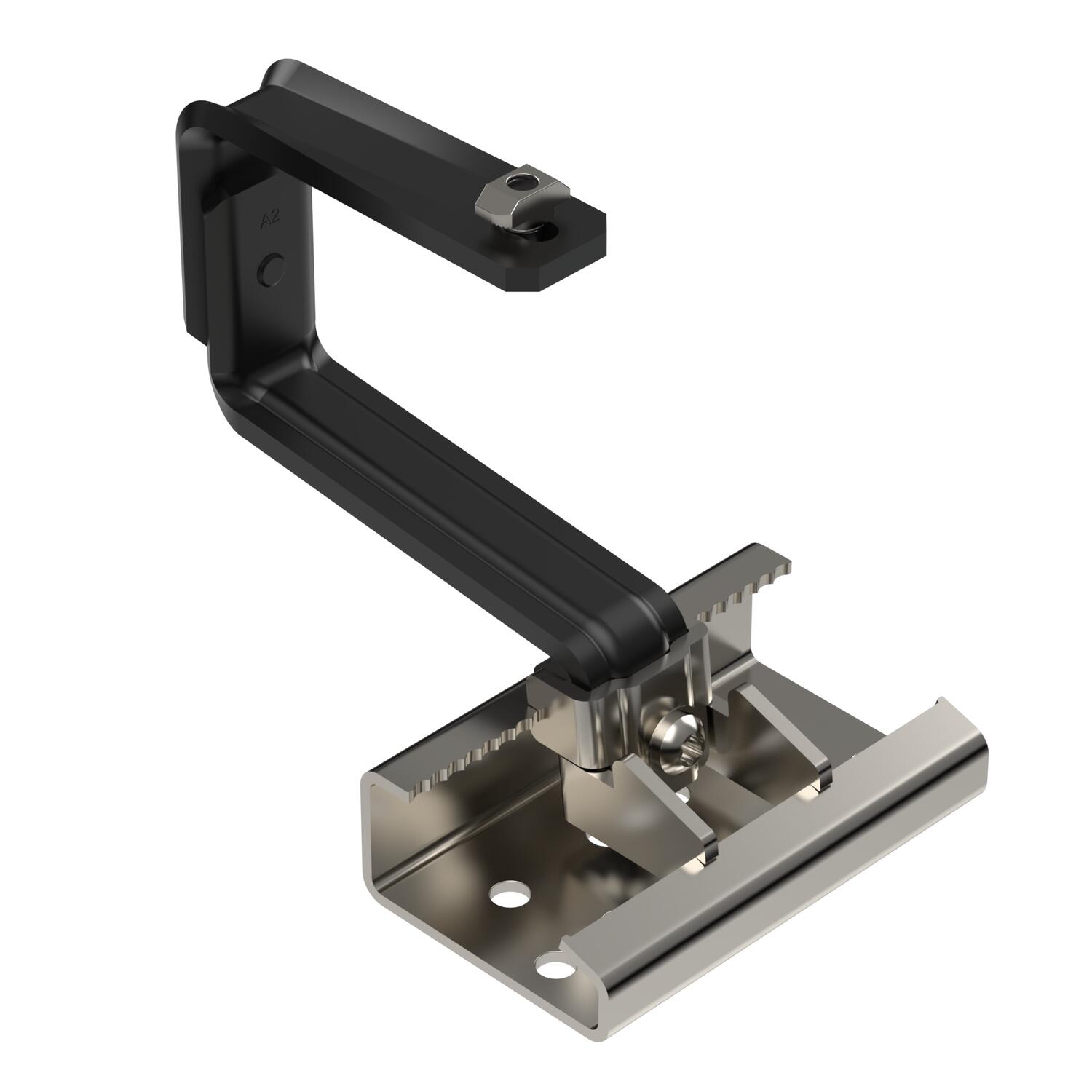

Roof hook for PV module mounting, screwable profile, tiled roof, black
Item no. 5901406 | EAN 4012197454692
- Product description
-
Product descriptionRoof hook to mount photovoltaic modules on pitched roofs in combination with the TP 45 support profile. Suitable for tiled roofs. Screwable fastening on the support profile. Mounting on rafters with TKS wafer-head screws. The roof hook can be adjusted horizontally as well as vertically continuously via glands, correctTorx 40 key. Height adjustment in the range of the roof slat between 40–54 mm, side adjustment option up to 76 mm, height adjustment of the support profile up to 18 mm. Black version.
-
- Technical data
-
Technical data

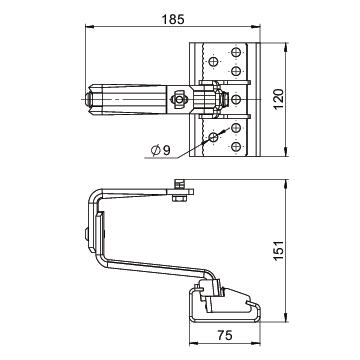

Adjustable yes Alignment Horizontal/vertical Anchoring Bolts Angle of inclination, min. 90 ° Colour Black Dimension 120x186x150 Fastening plate, length 120 mm Height-fastening plate 36 mm Material Stainless steel 1.4301 Material thickness 6 mm Penetration of roof necessary yes Suitable for fastening photovoltaic roof/facade fastening Pitched roof fastening Suitable for roof material Roof tile Surface Powder-coated Wide fastening plate 75 mm With mounting plate yes Dimensions
Width 120 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 3,8887 kg CO2e / 1 Piece CO₂ Footprint (GWP) 3,8887 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-27T00:00:00.000+0200 - All types
- Downloads
-
Data sheet DHU T A2K S / 5901406 , 0.18MB , pdfREACH Declaration of conformity DHU T A2K S / 5901406 , 0.13MB , pdfRoHS Declaration of conformity DHU T A2K S / 5901406 , 0.13MB , pdfNo invitation to tender text is available for this product.
